Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.

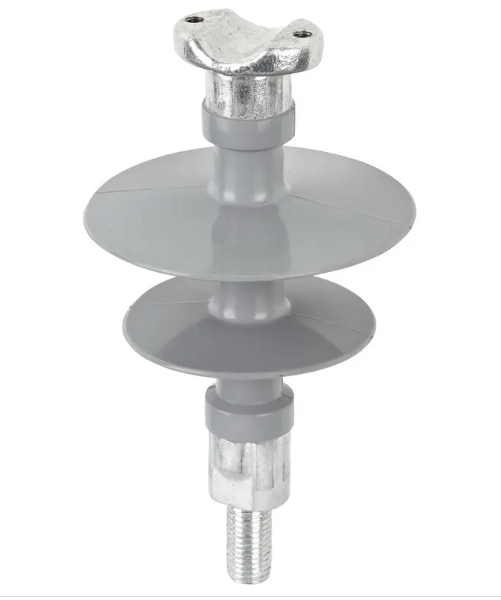

11kV silicone rubber pin composite insulators are essential components for low and medium voltage power distribution systems, designed to provide reliable mechanical support and electrical insulation for overhead lines. Manufactured by HAIVO, these pin type composite insulators integrate high-quality silicone rubber housing, modified ECR fiberglass reinforced epoxy resin core rods, and precision-crimped end fittings into a single robust unit.
Our 11kV composite pin insulators are engineered to operate flawlessly in rated voltages up to 36kV, delivering superior performance compared to traditional porcelain and glass insulators. They feature a compact, lightweight design that simplifies transportation and installation, while their exceptional hydrophobicity and anti-pollution properties ensure long-term reliability in harsh environmental conditions. All products comply with IEC 61952:2008, ANSI, GB, and other international standards, guaranteeing consistent quality for global power infrastructure projects.
Model | Rated Voltage (kV) | Specified Mechanical Load (kN) | Spacing H (mm) | Arcing Distance (≥mm) | Minimum Creepage Distance (mm) | Lightning Impulse Withstand Voltage (≥kVp) | Wet Power Frequency Withstand Voltage (≥kVr.m.s.) |
FPW-12/5 | 12 | 5 | 248 | 195 | 315 | 100 | 45 |
FPW-12/5 | 12 | 5 | 228 | 195 | 315 | 100 | 45 |
FPW-15/5 | 15 | 5 | 268 | 215 | 450 | 120 | 50 |
FPW-15/5 | 15 | 5 | 248 | 215 | 450 | 120 | 50 |
FPW-24/8 | 24 | 5 | 308 | 250 | 480 | 150 | 60 |
FPW-24/8 | 24 | 5 | 288 | 250 | 480 | 150 | 60 |
FPW-36/5 | 36 | 5 | 413 | 340 | 900 | 180 | 80 |
FPW-36/5 | 36 | 5 | 393 | 340 | 900 | 180 | 80 |
The silicone rubber pin insulators feature a one-piece injection-molded housing that exhibits excellent hydrophobicity and hydrophobic migration. This unique property allows water to bead up and roll off the surface, carrying away contaminants and significantly reducing the risk of pollution flashovers. The material also provides exceptional resistance to ozone, UV radiation, and extreme temperature fluctuations, ensuring a service life of over 30 years.
Our 11kV silicone rubber composite insulators utilize modified ECR fiberglass reinforced epoxy resin core rods with a tensile strength exceeding 1200MPa. These rods offer superior resistance to high temperatures, stress corrosion, and acid attack, while their excellent damping properties effectively absorb vibrations caused by wind and seismic activity. The end fittings are crimped using a voice-operated displacement crimper, resulting in high mechanical strength and minimal performance dispersion.
The connection points between the end fittings and core rods are fully encapsulated by the silicone rubber housing through high-temperature vulcanization, eliminating potential interface failures. An internal radial multi-seal structure further enhances sealing reliability, preventing moisture ingress and ensuring long-term internal insulation performance.
10kV to 36kV overhead power distribution lines
Substation busbar support and insulation
Rural electrification projects and grid modernization initiatives
Industrial power distribution systems in manufacturing facilities
Coastal and industrial areas with moderate pollution levels
Earthquake-prone regions requiring enhanced structural resilience
HAIVO offers comprehensive customization options to meet specific project requirements. We can adjust insulator dimensions, creepage distances, and mechanical load ratings to suit unique environmental and operational conditions. Available in standard red, gray, and white colors, we also provide custom color options upon request.
We maintain large inventory levels of standard 11kV pin composite insulators to support urgent project timelines, with flexible bulk order quantities to accommodate both small-scale installations and large infrastructure projects. Our dedicated logistics team ensures timely delivery to locations worldwide, with comprehensive packaging to prevent damage during transit.
HAIVO is a leading manufacturer of high-quality composite insulators with decades of experience in the power industry. We operate state-of-the-art production facilities equipped with advanced manufacturing and testing equipment, ensuring every product meets the highest quality standards.
Our team of experienced engineers provides technical support throughout the project lifecycle, from initial design consultation to post-installation maintenance. We are committed to delivering cost-effective solutions without compromising on quality, making us the preferred supplier for power utility companies, electrical contractors, and infrastructure developers globally.
Our silicone rubber composite insulators can operate continuously in temperatures ranging from -40°C to +120°C, making them suitable for use in most climate zones.
No, these insulators are virtually maintenance-free. Their self-cleaning hydrophobic surface eliminates the need for periodic washing, significantly reducing operational costs.
Yes, we provide comprehensive test reports including mechanical strength tests, electrical performance tests, and aging tests for all our insulators.
