Expulsion fuse cutouts sit quietly on countless overhead distribution poles, but they make or break reliability at the moment of a fault. If you work in protection engineering or grid planning, precision in terminology isn’t just academic; it guides safe design, credible coordination studies, purchase specifications, and field procedures.
This glossary gathers the core language around the expulsion fuse cutout, aligned to relevant guidelines. You’ll find clear definitions, with brief notes pointing to how to read time–current characteristics (TCCs), what “interrupting rating” really implies for non-current-limiting devices, why Basic Impulse Level (BIL) matters for selection, and how expulsion behavior interacts with reclosers.

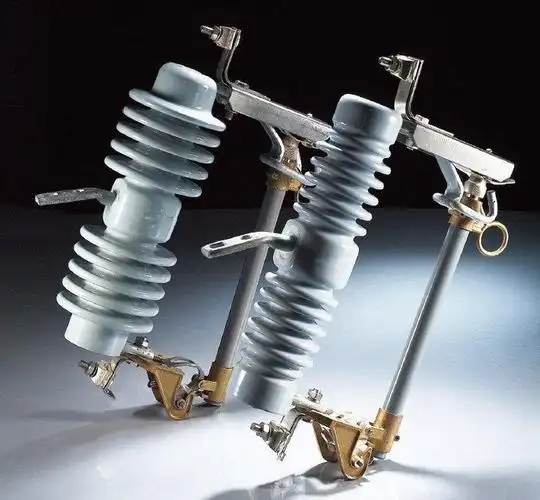

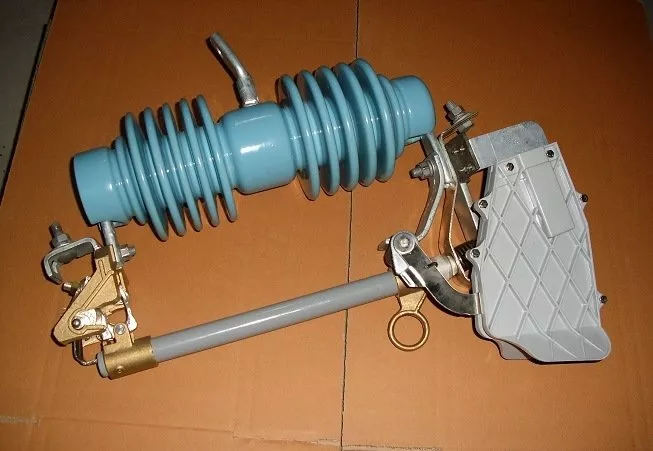

An expulsion fuse cutout is a distribution-class, overhead protective device that houses a replaceable expulsion fuse link inside a vented tube and provides both overcurrent protection and a visible open point after operation (the holder drops out).
The protective action is non-current-limiting: the arc that forms when the link melts is elongated and de-ionized by gases expelled from a gas-producing liner in the tube; interruption completes at a natural current zero.
Earlier overhead fuses evolved from simple fusible elements toward vented, liner-based expulsion tubes that actively drive ionized gases out of the arc path.
Over time, clear visible-open mechanisms (dropout) and standardized voltage/BIL classes became the norm, with porcelain giving way increasingly to silicone polymer insulators for hydrophobicity and weight reduction.

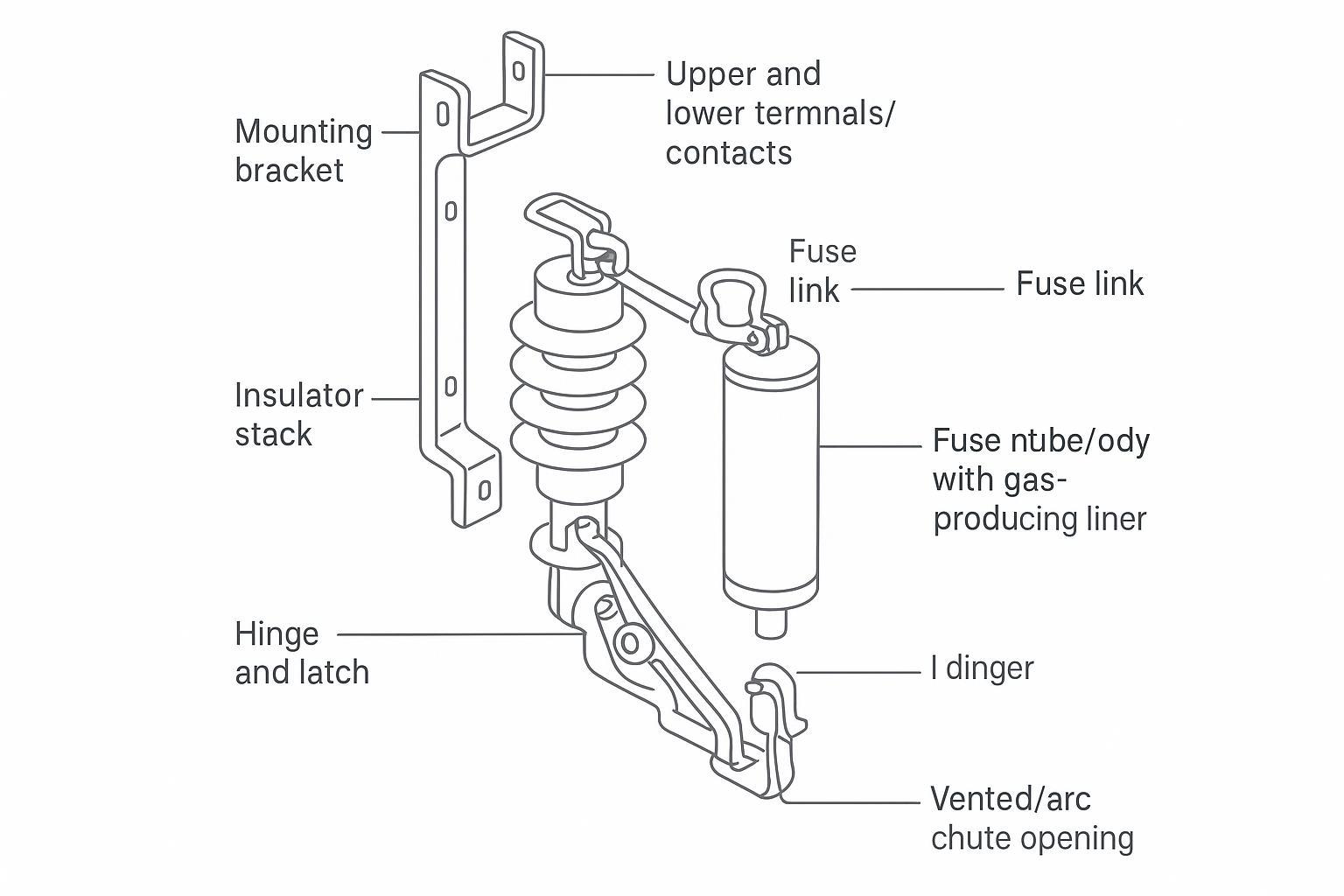

Fuse link: The replaceable element assembly that melts and initiates arc interruption; characteristics include K and T link families in North American practice.
Fuse body/tube: The vented housing with a gas-producing liner that enables expulsion-based arc extinction.
Insulators: Porcelain or polymer columns providing creepage/clearance and mechanical support. Polymer options (e.g., silicone rubber) maintain hydrophobicity and resist contamination adherence under wetting.
Terminals/contacts: Line and load connectors and the latched hinge/latch system that ensures secure engagement and clean dropout upon operation. Connector options and torque specifications are catalog-specific.

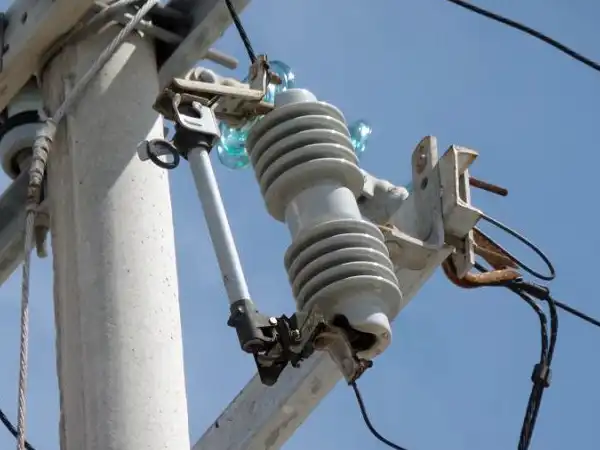

Expulsion fuse cutouts protect distribution transformer primaries, lateral taps, and capacitor banks (with specialized capacitor expulsion fuses) while providing a visible isolation point for crews. They are favored where visible-open confirmation, interchangeability, and cost effectiveness matter, and where available short-circuit current is within expulsion interrupting capability.
A fuse link is the replaceable fusible element assembly that determines the time–current characteristics of an expulsion fuse cutout. North American practice commonly uses Type K and Type T link families.
Materials include tin, silver, and calibrated notches to tune melting profiles.
The fuse body (tube) contains a gas-producing liner that outgasses during arcing. Housing materials, venting design, and end-cap construction govern arc exhaust direction and dielectric recovery.
Polymer-bodied cutouts (silicone rubbers) reduce weight and can improve contamination performance, while porcelain remains robust and time-proven.
Insulators provide the external dielectric path (creepage and clearance) and mechanical support. Ratings are aligned to the cutout’s nominal voltage class and BIL. In polluted or coastal environments, polymer insulators’ hydrophobicity can reduce surface leakage currents and flashover risk. Selection cue: match creepage distance to contamination class and altitude per catalog notes; confirm BIL matches or exceeds system insulation coordination targets.
Terminals and contact assemblies secure the fuse holder between the line and load sides. Proper torque, conductor size compatibility, and contact condition (cleanliness, plating integrity) affect temperature rise and reliability.
In an expulsion design, the lower end of the tube is vented, forming an arc exhaust path. The gas-producing liner de-ionizes the arc channel; interruption completes at a natural current zero when dielectric strength recovers.
Rated voltage corresponds to the maximum system voltage for which the cutout assembly (insulators, tube, clearances) is designed and tested. It ties directly to BIL and external insulation performance.
North American distribution cutouts are commonly available in 15 kV, 27 kV, and 38 kV classes with representative BIL options of 110 kV, 125 kV, and 150 kV respectively (verify per series).
Rated current for the cutout holder indicates the continuous thermal current it can carry without exceeding temperature-rise limits (typical holders: 100 A, 200 A, 300 A). The fuse link ampere rating is separate and determines overcurrent response.
With these components, it’s important to ensure the holder rating equals or exceeds the expected continuous load current, including ambient and enclosure effects, if any.
Interrupting capacity is the highest prospective fault current the fuse link and cutout assembly can interrupt safely under specified test conditions (including X/R ratio).
For expulsion devices, published interrupting ratings are often on the order of 10 kA asymmetrical, but you must confirm per the exact tube/cap/link series and standard test points in IEEE Std C37.41.

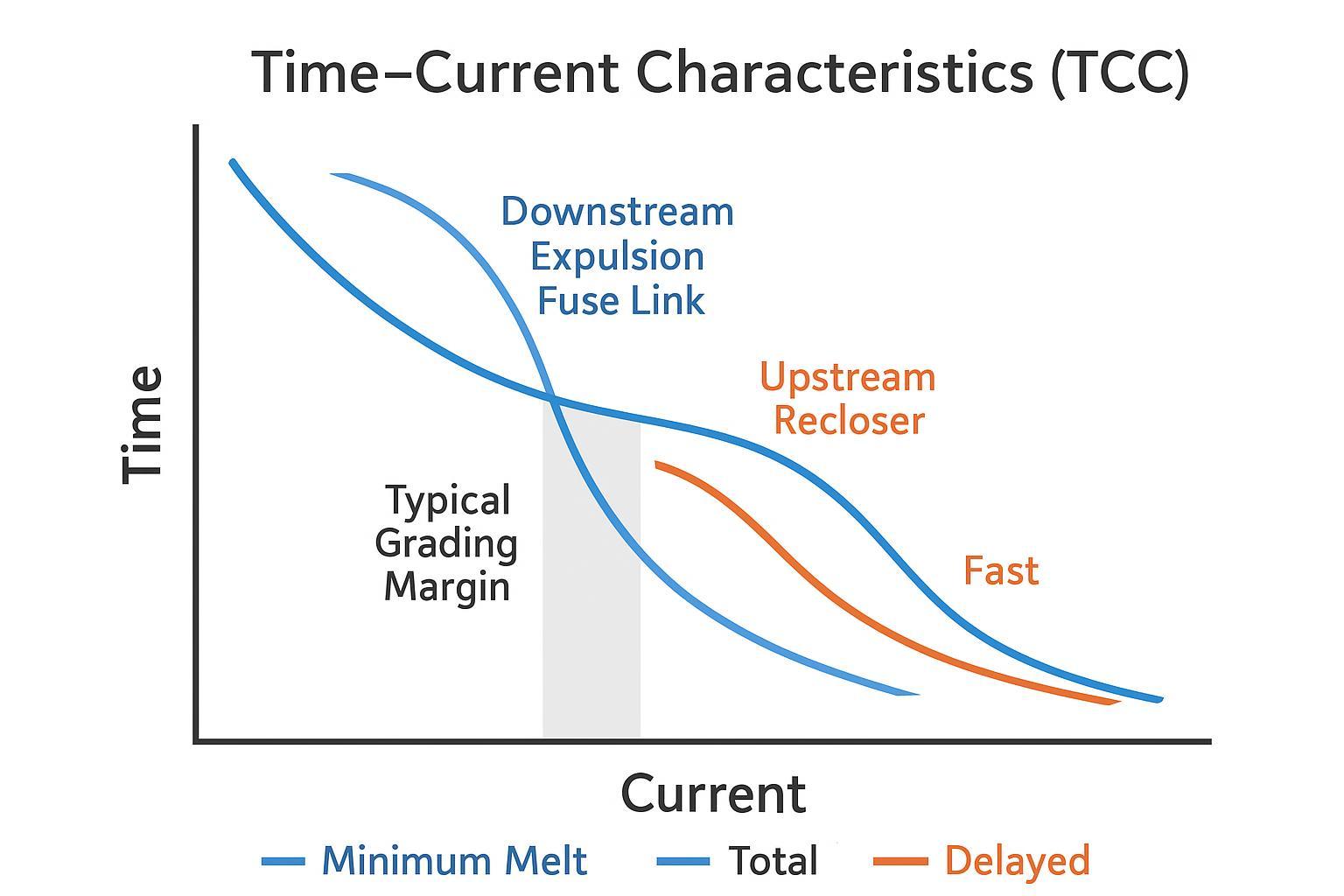

Time–current characteristics describe how long a fuse link takes to melt and clear at a given current. Manufacturers publish two key curves: minimum melt and total clearing.
Minimum melt represents the threshold where the element just melts; total clearing includes arcing time. Coordination practice overlays these curves with upstream recloser curves.
Melting factor relates the current required to melt the element to its rated current and is reflected implicitly in the spacing between standardized operating points on the TCC.
In practical terms, it captures how much overcurrent is needed to initiate melting and how that compares to expected inrushes (e.g., transformer magnetizing, cold-load pickup). For E-/R-rated current-limiting fuses, standards define melt performance bands; expulsion links follow manufacturer TCCs.
For terminology and I²t context, feel free to check out Mersen’s MV catalog and Eaton Fuseology notes.
When current exceeds the link’s threshold for a sufficient time, the fusible element melts, creating an arc within the fuse tube. Gas from the liner is expelled, cooling and de-ionizing the arc channel.
At a natural current zero, dielectric strength recovers and the circuit is interrupted. The holder typically drops out to indicate a visible open.
Arc extinction in expulsion fuses is driven by gas generation and venting rather than by forcing a high-resistance arc as in current-limiting designs. The vented path lengthens the arc and sweeps ionized gases away.
Remember that because the device is non-current-limiting, transformer through-fault energy must be evaluated using system fault levels and the clearing time from the TCC — there’s no substantial reduction in peak fault current.
Coordination ensures downstream devices operate before upstream devices for faults on the downstream zone. In distribution practice, we overlay a downstream fuse link’s minimum-melt and total-clearing curves with an upstream recloser’s fast and delayed curves.
Qualitative grading margins of roughly 0.3–0.5 decades between relevant sections of curves are often used as a starting point, then verified with actual manufacturer data.
Reclosers attempt several fast shots to clear temporary faults before moving to slower or lockout curves.
Good fuse–recloser coordination allows the recloser’s first fast shot to test the line without causing fuse minimum-melt at lower fault currents, while ensuring the fuse clears persistent lateral faults before the recloser locks out.
Cutouts provide a visible air gap after operation or when opened with a hot stick, supporting isolation and tagging practices. Treat visible open as an indicator —not proof of de-energization. Always verify the absence of voltage per utility procedures before work and follow lockout/tagout.
Grounding of equipment enclosures and transformer tanks is foundational to shock protection and fault current return paths.
While the cutout is in the line, not a grounded enclosure, its mounting structure and nearby equipment should meet the utility’s grounding standards. Ensure bonding continuity and connection integrity; follow utility standards and the National Electrical Safety Code (NESC) where applicable.
Overload currents are moderate, long-duration overcurrents; short circuits are high-magnitude, short-duration faults.
Fuse links respond per their TCCs: slow for overloads (to ride through temporary/transient conditions like cold-load pickup) and fast for high faults. Selection cue: set link size so that overloads that the protected asset can thermally withstand ride through, yet short-circuit faults clear quickly and within the link’s interrupting rating.
Inspection: Check insulators for cracks or tracking, contact faces for pitting, and evidence of heating. Verify the holder swings freely and latches securely.
Replacement: Use proper hot-stick techniques per utility procedure. Confirm the correct link type and ampere rating; torque terminals to catalog values.
Testing: Utilities may perform infrared scans for hotspots and periodic visual patrols; lab testing for insulation/dielectric withstand follows IEEE design-test methods in IEEE Std C37.41
Safety reference: For arc-flash and shock risk awareness in the U.S., see the NFPA 70E 2021 fact sheet.

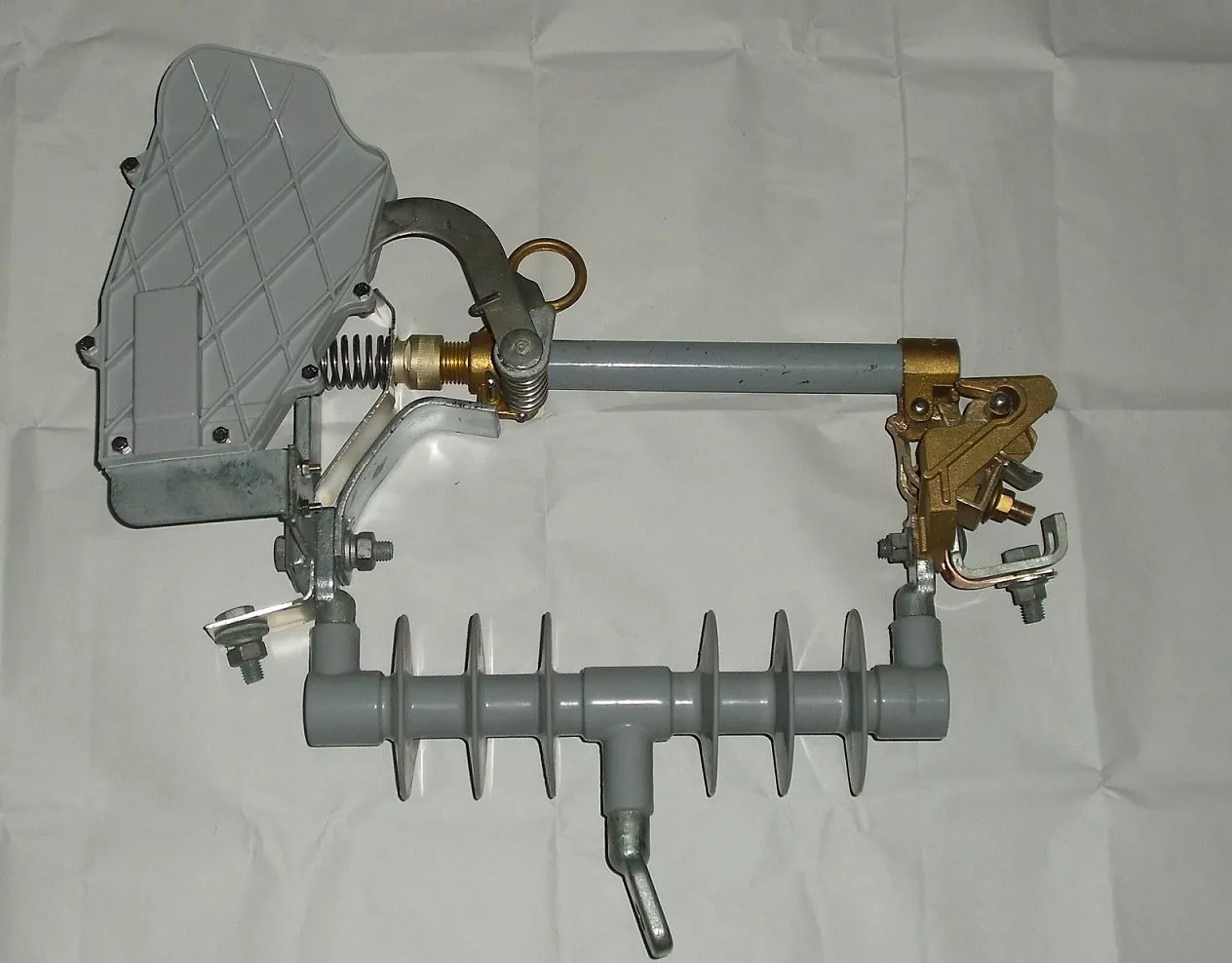

Current-limiting fuses use a silica-sand filler and engineered element notches to create a high-resistance arc that limits peak fault current and I²t let-through.
They achieve higher interrupting ratings (e.g., 25–65 kA RMS symmetrical depending on class) and do not provide a visible dropout. Contrast this with expulsion links that clear at a natural current zero and are non-current-limiting.
Voltage class groups equipment by maximum system voltage and corresponding dielectric tests, including BIL.
For overhead distribution cutouts, typical North American classes include 15 kV, 27 kV, and 38 kV, each with associated BIL options and creepage requirements. Selection blends insulation coordination (arrester levels, switching surges), mechanical clearance, and environmental considerations.
A coordination study assembles device curves and system fault data to ensure selective operation. Inputs include: available short-circuit current and X/R at the location, downstream equipment withstand (e.g., transformer through-fault), selected fuse link TCCs, and upstream recloser curves and shot sequences.
Practical grading targets often begin with 0.3–0.5 decades between overlapping curves and are refined using manufacturer TCCs.
Medium-voltage work involves arc-flash and shock hazards. Engineering controls (coordination that reduces clearing times for likely faults), administrative controls, and PPE selection fall under an employer’s electrical safety program.
Moisture, industrial pollution, salt fog, altitude, and temperature affect external insulation performance and thermal ratings.
Polymer insulators (silicone rubber) retain hydrophobicity and shed water films, improving performance under wet contamination compared with porcelain. At altitude, air density reduction lowers dielectric withstand; derating guidance appears in catalogs.
Keep a working TCC overlay: When specifying a lateral transformer, plot the chosen expulsion fuse link’s minimum-melt and total-clearing curves with the upstream recloser’s fast/slow shots. Aim for selective clearing of persistent lateral faults while preserving the recloser’s fast-shot test at lower currents. Adjust link type (K vs T) and ampere rating as necessary.
Confirm interrupting duty: Calculate available symmetrical RMS fault current at the cutout location and account for X/R to estimate asymmetrical duty. Verify it is within the expulsion link/cutout interrupting rating for the series you intend to buy.
Align insulation level: Match cutout voltage class and BIL to the system nominal and insulation coordination targets; coordinate with arrester MCOV/BIL and the expected surge environment.
Document replacements: Label equipment with the exact link type and ampere rating. Keep a reference sheet of approved link families and their TCCs to avoid mismatched field substitutions.
Read manufacturer manuals: Before installation or replacement, check the series-specific catalog and instructions for orientation, torque, and clearance details. Eaton’s Type L and Edison link documents are good exemplars.
Being fluent with the terminology around the expulsion fuse cutout helps you specify correctly, coordinate credibly, and operate safely.
From the fuse link’s minimum-melt curve to the cutout’s BIL and interrupting rating, these terms connect directly to field reliability and workforce safety. Keep this glossary close, keep your curves honest, and your system will thank you the next time a lateral sees a fault.
