When the time comes to install unscreened separable connectors, you want reliable performance and safety every time to ensure that it stays functional and can deliver the results you need. The process of installing these connectors is quite complex, and a mistake can easily lead to downtime, faults, and even hazards.
Even the most professional installers run into trouble by skipping important steps or rushing the job. However, if you're able to follow proven safety protocols and use quality-assured products, you help protect everyone on site.
In this article, we'll go through a few critical tips that can help ensure that your installation process is seamless and efficient - from start to finish.
Follow safety protocols to prevent accidents and ensure reliable installations. Always lock out equipment before starting work.
Use quality tools and techniques for cable preparation. Proper stripping and cleanliness lead to better connections.
Check compatibility between connectors and cables. Mismatched parts can cause serious electrical issues.
Perform thorough post-installation checks. Visual inspections and electrical tests help catch problems early and prevent outages.
Take your time during installation. Rushing can lead to mistakes that result in costly repairs and downtime.

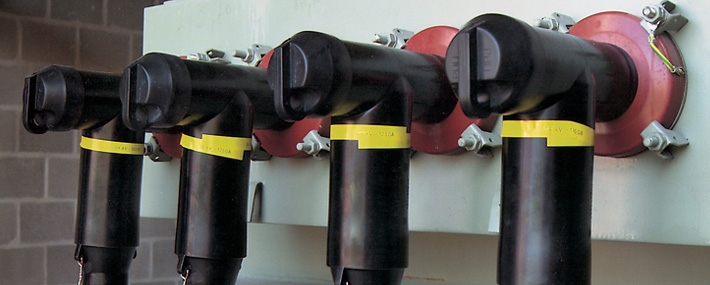

You might wonder what "unscreened" actually means when you're working with connectors. Well, unscreened separable connectors are electrical connectors that don't come with a built-in shield around their body.
When you install an unscreened separable connector, the outer surface stays live during operation. That means you need to be careful not to touch it while the system is powered. An unscreened separable connector fits over standard medium voltage cable ends, allowing you to make a solid electrical connection. And these days, they're mostly used in places where extra shielding isn't required by the system design.

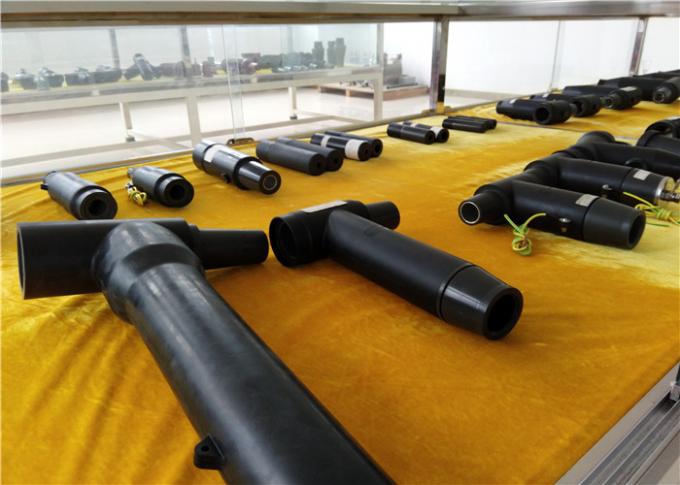

Unscreened separable connectors show up in many electrical installations. You'll find them in switchgear, transformers, and junction boxes. They work with medium voltage cables and fit C type bushings that follow EN 50180 and EN 50181 standards.
Here's a quick look at some common models and their features:
Connector Model | Voltage Range | Compatibility | Features |
RUSK-17 | 6/10(12)kV up to 12.7/15(17.5)kV | C type bushings (EN 50180, EN 50181) | Easy installation, comprehensive instructions |
RUSK-24 | 12/20(24)kV | C type bushings (EN 50180, EN 50181) | Unlimited shelf life, suitable for 35-300mm² cables |
You can use these connectors for new builds or upgrades. They make installation simple and help you keep your project moving.
So, "What's the difference between unscreened and screened connectors?" Unscreened connectors leave their surfaces live, so you need to avoid touching them when the system is on.
Screened connectors, on the other hand, add a layer of shielding. This shield helps control electrical fields and boosts safety. If you work in an area where people might touch the connector, screened options give you extra protection. Unscreened connectors work best in controlled environments where only trained personnel handle the equipment.
Helpful Tip: Choose the right connector for your job. Screened connectors offer more safety, but unscreened connectors are perfect for many standard installations.
Because you're dealing with electrical connections, it's critical that you be careful all through the process. So, before you even begin, you might want to keep a few of these in mind:
As you start, you want to always lock out and isolate equipment before working on it. Here's a simple step-by-step guide you can follow:
Tell everyone nearby that you plan to work on the equipment.
Check your company's procedure to learn about the energy type and hazards.
Shut down the equipment using the normal stop button or switch.
Turn off the energy source so the equipment is completely isolated.
Lock out the energy isolating device with your assigned lock.
Release any stored energy by grounding, blocking, or bleeding down.
Make sure no one is exposed, then test the equipment to confirm it won't start.
Now, the equipment is locked out and safe to work on.
You need the right personal protective equipment (PPE) every time you work with connectors. PPE keeps you safe from falls, shocks, and other hazards. Here's a quick look at what you should wear:
Component Type | Description |
Anchorage Connector | A secure point for attaching your fall protection system. |
Body Wear | Harnesses and other gear that support your body and keep you safe. |
Connecting Device | Lanyards or lifelines that link your harness to the anchor point. |
Getting the cable ready is one of the most important steps when installing connectors. If you rush or skip steps, you can end up with poor connections or even damage the cable. Let's break down how you can do this right.
You want to start with the right tools. A specialized wire stripping tool helps you strip the cable safely and cleanly. This tool cuts to the correct depth, so you avoid nicking the conductor. Here's a simple way to strip your cable:
Make sure the cable is not live and pick the right wire stripping tool.
Find the correct gauge notch for your cable.
Insert about half an inch of the cable into the notch and clamp down.
Twist the tool gently and pull the insulation off toward the end.
Check the exposed wire. It should look shiny and smooth, with no scratches.
If you use the right technique, you get a clean connection that lets current flow without problems.
As it always is, you need to be gentle when stripping insulation. Too much pressure can cut or break the wire strands. Always use the right notch on your tool and pull the insulation away slowly. If you see any broken or separated strands, cut the end off and start again. Twisting the exposed strands together after stripping can help keep them neat and ready for the next step.
Helpful Tip: Never use a knife or scissors for stripping. These can easily damage the conductor and cause trouble later.
When it comes to connector installation, cleanliness sometimes matters more than speed. Dust, grease, or even a little dirt can cause big problems later. So, always wipe down the cable and keep your work area clean. Take a few extra seconds to check for dust or residue before installing connectors. This small step helps you avoid headaches down the road.
Remember; a clean cable means a reliable connection that lasts.
If you grab the wrong separable connector, you might run into trouble later. So, always check the manufacturer's specs before you start. Look at the voltage rating, cable size, and connector type. If you match these details, you avoid problems like loose connections or overheating. You can also ask your supplier for a compatibility chart.
Getting the measurements right makes a huge difference in situations like these. If you rush this step, you might end up with gaps or a loose fit. Here's what you should pay attention to:
Connector Diameter: You want a snug fit to keep water and dust out.
Pin or Contact Size: The right size lets current flow smoothly and matches your system.
Cable Diameter: A good seal stops moisture and keeps the connection strong.
Length and Depth: These measurements help your connector stay stable and waterproof.
Thread Pitch and Type: If you use screw connectors, matching the threads is key for a tight fit.
When you measure everything and get accurate measurement, your connector works better and lasts longer. You avoid leaks, shorts, and other problems.
Trying to force a connector onto a cable that does not fit can cause serious trouble. You might think you can make it work, but you risk damaging your system. Take a look at some of the dangers:
Risk Type | Description |
Electric Shock | Mismatched connectors can expose live electrical parts, increasing the risk of electric shock. |
Electrical Shorts and Fires | Poor contact from incompatible connectors can create gaps, leading to arcing, sparks, and potential fires. |
Overheating | High resistance points from poor connections can cause overheating, posing a fire risk. |
Non-Compliance With Standards | Using incompatible connectors can violate safety standards, leading to legal repercussions. |
Damage to the Vehicle | Incorrect connectors can cause excess current or voltage drops, damaging electrical components. |
If you feel resistance, stop and check your measurements. Forcing a connector can lead to costly repairs and unsafe conditions. Always choose the right parts and take your time. Your system will thank you!
When you start installing connectors, you want to avoid mistakes that can cause trouble later. Let's look at the most common errors and how you can steer clear of them.
Misalignment happens when you don't line up the connector and cable just right. You might see this if the optical fiber cores don't match up, which leads to high reflection and signal loss. To that end, here are a few mistakes to watch out for:
Connector not fully inserted, causing high contact resistance.
Poor end-face geometry, which affects signal quality.
Guide pins not working, leading to misalignment.
Incorrect crimp height or using the wrong tool.
Rough handling during installation.
Getting the right torque matters a lot. If you don't tighten connectors enough, you risk leaks and damage. Over-tightening can stretch fasteners, causing overheating and even failure. Loose connections may heat up and start fires. These mistakes lead to expensive repairs and lower reliability.
Common torque errors include:
Not using enough torque, which causes leaks.
Over-tightening, leading to fastener damage and overheating.
Loose connections, which can cause thermal runaway and fires.
Using the wrong tool or skipping the torque wrench.
A torque wrench helps you get the balance right. You want connectors secure, but not damaged.
Note: Always follow the manufacturer's torque specs. This keeps your system safe and strong.
The environment can make or break your installation. Chemicals can corrode connector materials. Extreme temperature changes may wear down insulators. Moisture, whether from humid air or splashes, can sneak into connectors and cause problems. Dust or metal shavings can block proper mating or get inside the enclosure.
Watch out for these environmental risks:
Noxious chemicals that corrode connectors.
Thermal cycling that weakens insulation.
Moisture from humidity or liquid spills.
Solid debris like dust or metal shavings.
You can protect your connectors by keeping your workspace clean and dry. Always check for hazards before you start.

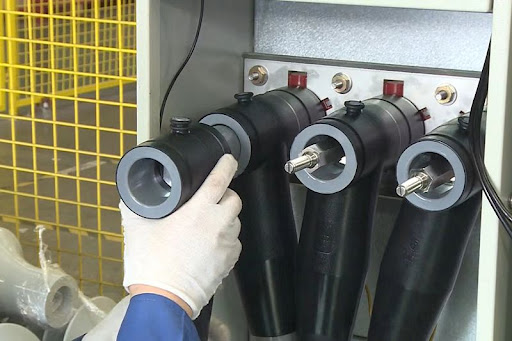

You just finished installing the connector. Now, take a close look at your work.
Start by checking for any visible gaps between the connector and cable. Make sure the connector sits flush and straight. Look for cracks, scratches, or signs of damage.
Inspect the insulation. It should cover all exposed wires. If you see dirt, dust, or moisture, clean it off right away.
Check that all labels and markings are clear and easy to read. If you spot anything unusual, fix it before moving on.
Helpful Tip: Use a flashlight to see inside tight spaces. Sometimes, small problems hide where you least expect them.
After your visual check, you need to test the connector. These tests help you catch problems before they cause trouble. Here's what you should do:
Test how much force it takes to insert the connector.
Measure insulation resistance. This shows if the connector keeps electricity where it belongs.
Check durability by moving the connector back and forth.
Test how much voltage the connector can handle.
Measure contact resistance. This tells you if electricity flows easily.
Shake the connector to see if it handles vibration.
Give it a gentle shock to test mechanical strength.
If you follow these steps, you know your connector works well and stays safe.
You want your system to run without problems. Careful post-installation checks help you avoid callbacks and outages. When you inspect and test every connector, you catch mistakes early. This means fewer repairs and less downtime. You save money and keep everyone safe. Take your time with each check. Your attention now keeps your system strong for years.
For all the benefits they provide, unscreened separable connectors can be quite finicky. Installing them will require a considerable amount of care, and this is why you want to make sure you have the right setup.
Fortunately, our experts at Haivol Electrical are here to clear up any issues you might have. For more assistance, don't hesitate to reach out to us today.
