Unscreened separable connectors are critical electrical components that serve to join medium voltage cables to things like switchgear and transformers. On their own, these connectors make it easier for workers to remove or even swap out cables without having to touch other connections. And if you know anything about electrical connections, you'd know that whatever can help you minimize personal contact as much as possible is a huge plus.
Thanks to their intricate design, unscreened separable connectors make the entire repair and change process quick and seamless. Over the years, electrical maintenance professionals and teams have grown to love them because they cut downtime and generally keep systems safe.
So, how do these connectors really work? And what can you do with them in this context? Let's find out.
Unscreened separable connectors help connect medium voltage cables and equipment quickly and safely.
Their right-angled shape saves space, while also making it easier to install them in small places.
These connectors use strong insulating materials, keeping people safe and making the system work well.
Because they don't have metal shields, unscreened connectors need to be handled with proper care.
Unscreened connectors work best in older systems and controlled places, so only trained workers should use them. Always check the connector's insulation before installing.
Unscreened separable connectors are important in medium voltage systems whose design helps workers connect and disconnect cables safely and fast. These connectors make sure power stays on in many places, thus improving the efficiency of connections to a huge degree.
"Unscreened" here means these connectors do not have a metal screen on the outside. So, the live parts inside are not covered by a metal shield, and workers need to be really careful with the connectors because there's a higher risk of electric shock.
A lot of unscreened separable connectors have a right-angled adapter shape. This shape lets cables go into equipment at a 90-degree angle, and the right-angled design saves space inside cabinets for switchgear and transformers.
Manufacturers use strong insulating materials to make unscreened separable connectors. Most connectors are made from molded rubber or high-quality plastic, thus keeping the live parts inside safe. Metal contacts inside the connector carry the electric current. The outside shell keeps out dust and moisture. Some connectors have seals to stop water from getting in.

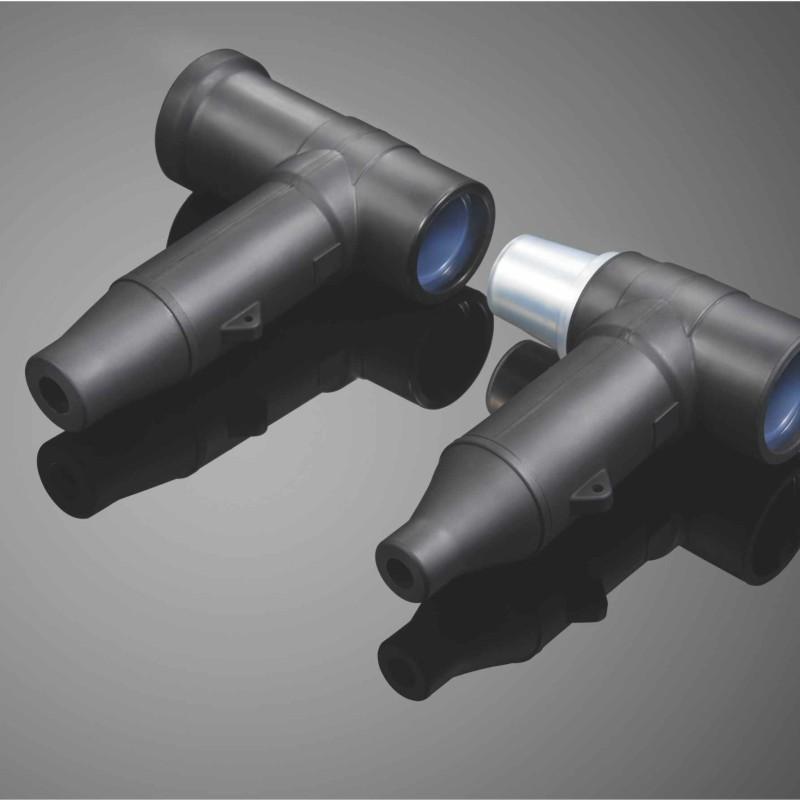

Unscreened separable connectors actually connect via a simple mechanism - you push the connector onto the equipment bushing until it clicks, and the click means the connector is properly locked in place.
Many teams like this method because no special tools are needed. The connector's shape helps guide the cable into the right spot, thus lowering the chance of mistakes.
The connector has metal contacts inside. These contacts touch the equipment bushing when connected, while metal parts carry electricity from the cable to the equipment.
A strong link keeps the connector from moving around. This helps protect the connection if there are shakes or bumps. The shell covers the contacts and keeps out dust and water. This helps the system last a long time.
Here is how the process works:
You line up the connector with the equipment bushing.
The connector slides onto the bushing and locks in place.
Metal contacts inside the connector touch the bushing.
The shell seals the connection from things outside.
Insulation and safety are very important in medium voltage systems. Unscreened separable connectors use strong materials to keep workers safe, with an outside shell made from full-insulated rubber or plastic.
Manufacturers also add safety features to protect people and equipment. Some connectors have shells that are sealed tight. This keeps out water and dust. Some have test points built in. These let workers check if the line is live without touching the connector. Some designs use fully shielded connections. This means workers do not need extra space between phases.
The table below shows common insulation materials and safety features:
Insulation Material | Safety Feature | Description |
Full-insulated | Hermetically sealed | Gives protection from things outside and keeps workers safe. |
Built-in capacitance test points | Live status indication | Lets workers safely check if the line is live. |
Fully shielded connections | No safety distance requirement | Makes it safer by removing the need for space between phases. |
Unscreened separable connectors are used in many medium voltage systems. Their design lets workers make safe and flexible connections. These connectors are found in many important places, including the following:

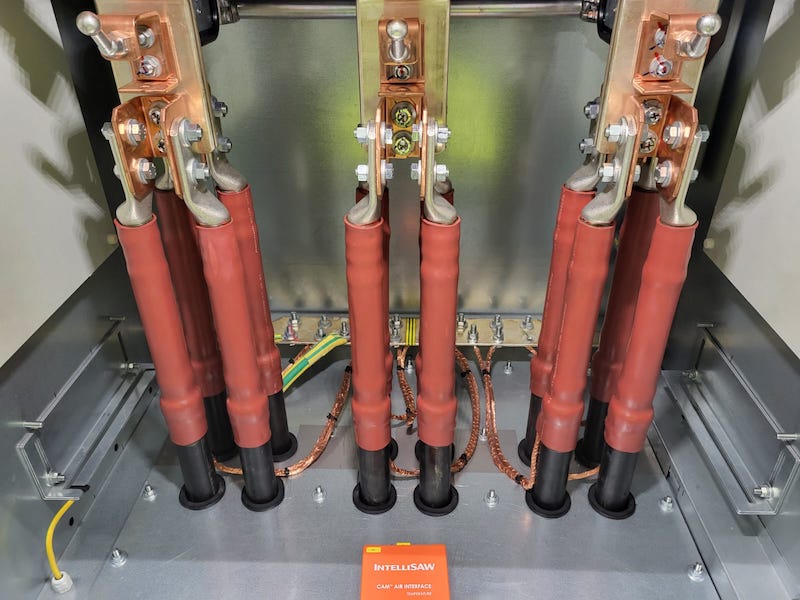

Switchgear and transformers need strong cable connections, and unscreened separable connectors help to join cables to these devices. The right-angled shape fits well in small cabinets, and this design saves space and makes it easier to install.
Here is a table that shows common jobs in switchgear and transformer setups:
Task | Benefit |
Cable replacement | Quick and simple |
Equipment upgrade | Less time with power off |
Routine inspection | Safe way to check connections |
Many cities use underground cable networks to send out electricity. These networks need connectors that work in small spaces, and unscreened separable connectors help workers join cables in underground vaults or tunnels.
The connectors primarily help to keep out dust and water. Their seals stop water from getting in, which keeps the system safe.
Some projects need power for a short time or in parts. Construction sites, outdoor events, and test stations often use these setups. Unscreened separable connectors make it easy to put in and take out cables.
Workers can set up cables fast and remove them when the job is done. The connectors let teams move equipment or change the setup as needed. This saves time and money.
A checklist for temporary setups:
Connect cables without special tools
Take out cables after the job is done
Change the system layout easily

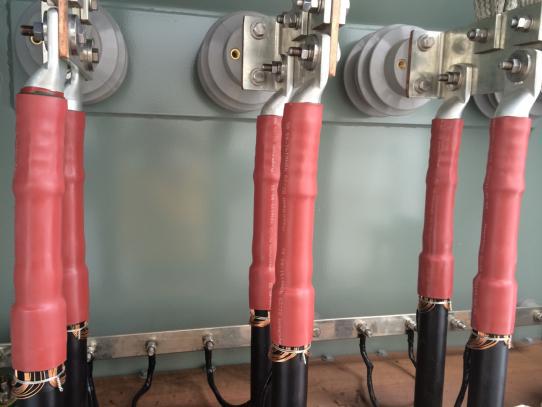

Unscreened and screened separable connectors look almost the same. But they are made for different jobs. Unscreened connectors do not have a metal shield on the outside. This means the live parts inside are not covered. Screened connectors have a special shield that wraps around the connector. The shield blocks electric fields and makes the outside safe to touch.
Screened connectors are strong and small. Many screened connectors fit well in new substations. The shielded part makes them safe to touch. Workers can hold these connectors without worrying about getting shocked. Screened connectors also keep out water and dust. Some types have IP67 protection, so they work in wet or dirty places.
Unscreened connectors use thick insulation but do not block electric fields. Workers must stay away from the live parts. These connectors are best for places with strict rules or old systems.
Feature | Unscreened Connector | Screened Connector |
External Shield | No | Yes |
Touch Safety | Needs caution | Touch-safe |
Moisture Protection | Good | Excellent (IP67) |
Space Requirements | Needs air gaps | Compact |
Safety is very important when picking a connector. Screened connectors have extra safety features. Workers can touch the outside and stay safe. The shield stops electric fields and lowers shock risk. Screened connectors also keep out water and dust, so they work well in tough places.
Unscreened connectors need careful handling. Workers must follow safety rules. Without a shield, electric fields can get out. Teams must keep enough space and not crowd the area. Maintenance is different too. Using silicone grease on contacts is not good because it can cause heat and problems. Connectors can fail if not cared for. Both types need careful use, but screened connectors are safer in busy places.
Screened connectors are safe to touch.
Unscreened connectors need more care and space.
Good maintenance keeps connectors safe and working.
Careful handling stops connector problems.
Picking the right connector depends on the job and place. Teams should match the connector's breaking capacity to the system. If the connector is too weak, it can fail. A strong connector is safer and works better.
Screened connectors are good for new substations and busy places. They are small, strong, and fit in tight spots. They keep out water and need little care. Unscreened connectors are better for old systems or places with strict rules. They are easy to put in but need careful use.
Unscreened separable connectors have many good points for medium voltage systems. Their design lets workers finish jobs fast and safely. But, these connectors also have some limits. Knowing both the good and bad helps teams pick the best option for their work.
Many teams like unscreened separable connectors because they are easy to use. The plug-in style lets workers put in or take out cables without special tools. This saves time when setting up or fixing things. The connectors come ready-made, so they always work the same way. This makes it easier to plan and teach workers.
The table below shows the main benefits:
Benefit | Description |
Ease of Installation | The plug-in design makes it quick to set up or change the network. |
Space Efficiency | The small size helps save space in switchgear and substations. |
Predictable Performance | Because they are factory-tested, they work the same every time. |
These features help companies spend less on labor and make fewer mistakes.
Workers think these connectors are simple to move and use. The right-angled shape fits well in small cabinets. Teams can connect cables even in tight spots. No extra tools are needed, so the job goes faster. This is helpful in emergencies or when time is short.
Unscreened Separable Connectors work well in places where only trained people go. Power stations and substations often use them for this reason. The connectors keep out dust and water, so they last longer in clean, dry places. Their design is good for old systems and special projects.
These connectors do not have a metal shield outside. This lets electric fields get out. Workers must stay away from live parts to be safe. These connectors are best in places where only trained people can enter. Wet or crowded places are not safe for these connectors.
Some limits come from how the connector is made. The equipment and connector must fit together the right way. This can make it hard to use with all types of gear. Most unscreened connectors fit single-core cables. They may not work for three-core cables, which are common in some networks.
The equipment and connector must match, which can make them hard to use with everything.
Separable connectors are mostly for single-core cables, so they may not work for three-core cables.
They usually cost more than cold and heat shrink terminations.
Teams must use these connectors the right way. If workers do not follow safety rules, they could get shocked. Without a metal screen, extra care is needed when putting them in or fixing them. Training and clear rules help keep everyone safe.
When it comes to unscreened separable connectors, understanding function and safety precautions is truly critical. And if you're a technician looking to improve your use of these components, we at Haivol Electrical are here to lend a hand.
Contact us today, and let us know what you'll need.
An unscreened separable connector links medium voltage cables to equipment. It does not have a metal shield on the outside. Workers use it to connect or remove cables fast and safely.
Teams use these connectors in substations, switchgear, transformers, and underground cable networks. They work well in places where only trained people can go and in older systems.
No, unscreened separable connectors are not safe to touch. The outside does not stop electric fields. Workers must follow safety rules and not touch live parts.
