Surge arresters are not glamorous equipment. They sit quietly on overhead lines, in substations, and beside switchgear, doing nothing until the moment they're needed most. When a lightning strike or switching transient threatens your network, the arrester you chose months or years earlier either does its job or it doesn't. There's no second chance. That's why buying zinc oxide surge arresters well is worth taking seriously, and why this guide exists.
This is a buyer's companion; practical, honest, and focused on helping you make a confident, informed purchase. We'll walk through how arresters actually work, how to define your requirements before approaching suppliers, what specification details matter most, how to evaluate who you're buying from, and what warning signs to watch for. By the end, you'll have a clear framework for making better buying decisions.
Zinc oxide (ZnO) surge arresters protect electrical equipment by diverting dangerous overvoltages safely to earth. Their core element is the ZnO varistor disc, which is a ceramic component with a remarkable property called non-linear resistance.
Under normal operating voltage, the varistor presents very high resistance, allowing only a tiny leakage current to pass. The moment the voltage rises above the arrester's protective level, resistance drops dramatically, allowing surge current to flow through and bypassing the equipment being protected. When the overvoltage passes, resistance rises again automatically. No moving parts, no switching; simple physics working its magic.
This non-linear behaviour is why ZnO technology has replaced older silicon carbide (SiC) designs. Earlier arresters relied on spark gaps to interrupt the current path after a surge, which introduced mechanical complexity and degraded over time. ZnO varistors need no gaps, respond in nanoseconds, and can handle repeated surge events with minimal degradation, making them the standard for modern electrical protection.
A surge arrester has three key components:
The ZnO valve blocks
The housing
The end fittings
The quality of the ZnO blocks determines the arrester's core electrical performance; everything from their consistency to energy handling capacity and long-term stability. Housing material affects mechanical strength, pollution resistance, and maintenance requirements. At the same time, end fittings determine how the arrester connects to the system and how it handles thermal and mechanical stress. None of these components can be evaluated in isolation; together, they determine whether the arrester performs reliably across a 20 or 30-year service life.

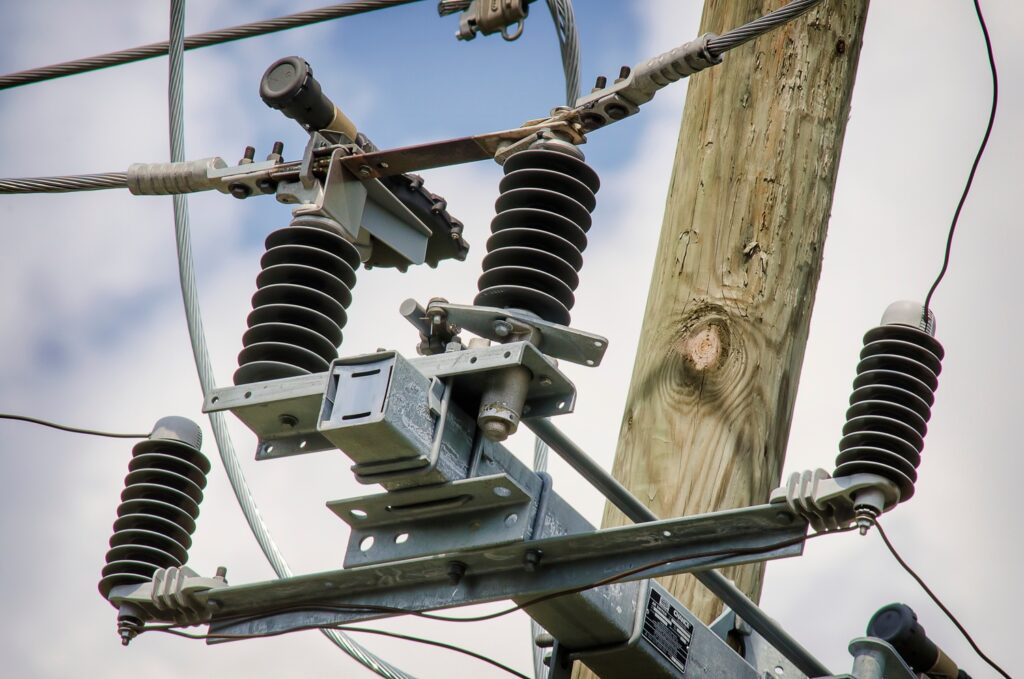

One of the most common procurement mistakes is approaching suppliers without a clear picture of what your application actually demands. Without defined requirements, you're relying on a salesperson to specify for you, and their interests may not perfectly align with yours.
Three voltage parameters matter when specifying an arrester:
System voltage (the nominal operating voltage of your network)
Rated voltage (the maximum temporary overvoltage the arrester can handle without damage)
Continuous operating voltage (COV); the maximum voltage the arrester is designed to withstand continuously.
Specifying the wrong value in either direction creates problems. Underspecify the rated voltage, and your arrester may fail during a temporary overvoltage event. Overspecify COV significantly, and you may end up with an arrester whose protection level is too high to adequately protect your equipment.
The surge environment your arrester will face shapes its energy handling and discharge current requirements. Sites with high lightning exposure, frequent switching events, or solidly earthed neutral systems place greater energy demands on the arrester.
Consider the keraunic level of your installation area, the frequency of switching operations, and system earthing configuration. These factors determine whether a standard distribution-class arrester is appropriate or whether you need a heavier-duty unit with higher energy absorption capability.
The installation location directly influences several specification parameters. Overhead line applications require different housing and pollution ratings than indoor switchgear installations. Substation equipment often demands station-class performance.
Cable termination arresters have specific requirements around energy handling and protective level. Before approaching suppliers, map the installation context clearly: indoor or outdoor, the pollution level of the environment, mechanical mounting requirements, and what equipment you're protecting.
Residual voltage — the voltage that appears across the arrester terminals during a surge discharge — defines how much protection the arrester actually provides. The protective ratio compares this residual voltage to the equipment's basic insulation level (BIL).
A well-matched arrester has a protective ratio that provides adequate margin between the surge voltage that gets through and the voltage your equipment can withstand. Don't assume that a reputable brand automatically means the protection level is appropriate for your specific application; always verify the numbers.
Traditional porcelain housings are robust and chemically stable, but they are heavy, brittle under mechanical shock, and can shatter catastrophically if the arrester fails. Modern polymer and silicone rubber housings are lighter, more resistant to vandalism and mechanical impact, and perform significantly better in polluted environments due to their hydrophobic surface properties.
For most outdoor and distribution applications, silicone rubber is now the preferred choice. Porcelain retains advantages in certain high-temperature or chemical environments, but the balance has shifted decisively towards polymer for the majority of applications.
When an arrester is pushed beyond its limits, it must fail safely. Pressure relief systems are designed to vent the internal pressure that builds during a fault, preventing violent rupture and fragmentation that could damage adjacent equipment or injure personnel.
When evaluating arresters, review how the fail-safe mechanism is designed and whether it has been tested to the relevant standard. This is not a theoretical concern; inadequately protected arrester failures have caused real-world incidents.
Creepage distance is the shortest path along the surface of the housing between live and earthed parts. In polluted environments, a contaminated housing surface can conduct current, leading to flashover and failure. IEC standards define pollution classes from light (Class I, clean environments) through to very heavy (Class IV, heavily industrial or coastal sites).
It is easy to underspecify this parameter, particularly when buyers use generic datasheets without considering the specific pollution level of their installation site. The consequences of underspecification are costly: premature failures in service and shortened asset life.

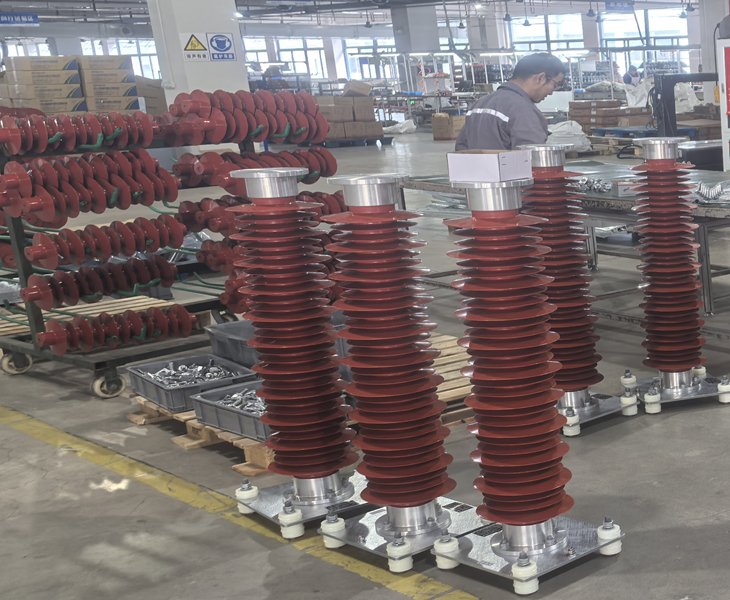

IEC 60099-4 and IEEE C62.11 both define arrester classes, though they use slightly different terminology.
In practical terms, station class arresters are the highest performing category; they’re designed for substations, large transformers, and critical high-voltage equipment.
Distribution class covers the majority of medium-voltage overhead line and feeder applications.
Intermediate class sits between the two, sometimes used for small substations or industrial installations.
Secondary class covers low-voltage protection, typically for consumer-side equipment
The performance expectations, energy handling capability, and testing requirements differ significantly between classes. So, buying down to save cost means accepting lower energy absorption capability and reduced test requirements.
Matching arrester class to application is a practical exercise in balance.
Using a station class arrester on a rural distribution line is unnecessary expenditure.
Using a distribution class arrester to protect a power transformer in a substation is false economy.
Start from the equipment being protected and the system conditions, not from a price point. For the majority of medium-voltage distribution applications, a correctly specified distribution class arrester is the right answer. But, that correct specification still requires the energy absorption capability, discharge current class, and housing rating to be matched to the actual installation.
Type test reports to IEC 60099-4 or the equivalent IEEE standard are non-negotiable. These tests verify that the arrester design performs as claimed across the full range of electrical, thermal, and mechanical conditions it may encounter.
When reviewing type test certificates, look for the test laboratory's accreditation, the specific parameters tested, and whether the test conditions match your application requirements. A certificate that was issued for a different voltage rating or housing configuration is not evidence that the product you're buying meets those requirements. Ask for it specifically for the product you're purchasing.
ISO 9001 certification provides a baseline indication of quality management systems, but it is a process certification, not a product performance guarantee.
Look beyond the certificate: ask about routine testing procedures applied to every unit, batch-level quality control, and how the manufacturer demonstrates consistency across production runs. Inconsistency in ZnO block manufacturing can produce arresters with significantly different performance characteristics. Established manufacturers with long production histories and auditable quality systems offer meaningful advantage over lower-cost alternatives whose manufacturing processes are opaque.
Suppliers who offer genuine technical support are worth more than those who simply fulfil orders. This is particularly true for complex or unusual installations — transformer protection in coastal environments, arresters for cable-connected equipment, or applications with unusual temporary overvoltage profiles. A supplier's willingness and ability to discuss your application in detail, ask the right questions, and provide reasoned recommendations is a meaningful indicator of product quality and after-sales reliability. If a supplier can't explain why they're recommending a particular specification, that's informative.
Lead times, stock availability, warranty terms, and post-installation support matter as much as the product specification. An arrester that cannot be replaced quickly after a failure event is a liability in a network with reliability obligations.
Clarify warranty terms in writing and ask about spare availability and whether the supplier can support field investigation if an unexplained failure occurs. The relationship doesn't end at delivery.
Surge arresters are precision-manufactured equipment whose cost reflects material quality, manufacturing process, and testing. When pricing is significantly below market norms, the gap has to come from somewhere; lower-grade ZnO materials, reduced testing, thinner housing walls, or simply counterfeit construction.
The cheapest option in surge arrester procurement is rarely the most economical one over the asset's full life. A failing arrester can cause equipment damage running to tens or hundreds of times the cost of the arrester itself. Evaluate total cost of ownership, not purchase price.

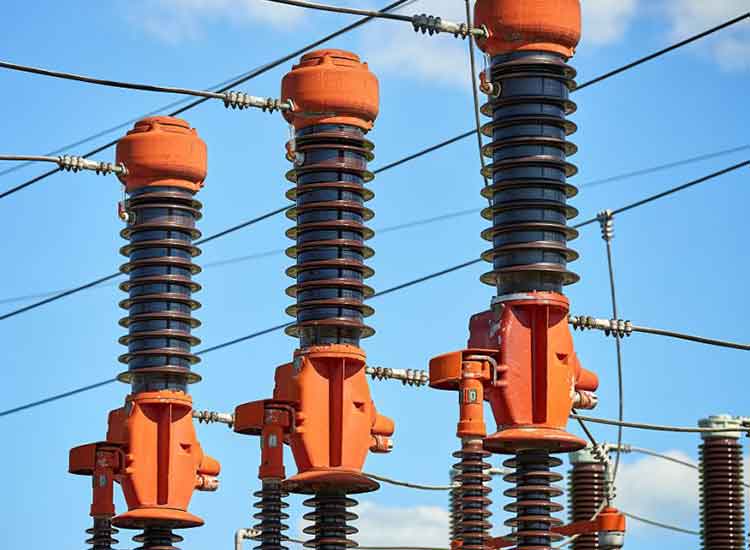

A reputable supplier can provide detailed technical datasheets, type test reports, and application guidance without hesitation. If a supplier is slow to provide documentation, provides generic certificates that don't match the specific product ordered, or offers only marketing materials in place of technical data, treat it as a serious warning sign.
Inability or unwillingness to provide proper test certificates usually means either that the testing hasn't been done to the required standard, or that the results are not ones the supplier wants you to scrutinise closely.
Substandard and counterfeit surge arresters are a real and documented problem in the global market, particularly in the mid-to-low price segment. These products may look identical to genuine units but contain inferior ZnO blocks with poor non-linearity, undersized pressure relief systems, or housing materials that degrade rapidly in UV exposure.
Protect yourself by buying from established distributors with traceable supply chains, requesting batch test documentation, and cross-checking product markings against the manufacturer's genuine product range. For critical applications, physical inspection and independent testing of samples before large-volume procurement is a worthwhile investment.
Buying zinc oxide surge arresters well is a process, not a transaction. The equipment these arresters protect is worth far more than the arresters themselves. A transformer, a switchgear assembly, or a cable termination represents a significant capital investment and a critical node in your network.
Use the framework in this guide as a checklist before your next purchase. Define requirements first. Specify carefully. Evaluate suppliers honestly. And treat red flags as exactly that; reasons to look elsewhere, not to negotiate harder on price.
