If you've spent any time working with medium-voltage distribution systems, you've probably encountered a deceptively simple question: which switch should we use here?
On the surface, it seems straightforward. A switch opens and closes a circuit. But in power systems engineering, the type of switch you select carries consequences that ripple through safety, reliability, cost, and long-term maintenance.
This article puts the load break switch under the spotlight and compares it against the other major switch types you'll encounter in the field: disconnectors, circuit breakers, vacuum switches, and SF6 switches. The goal isn't to declare a winner. It's to give you the clarity to make the right choice for the right application, every time.

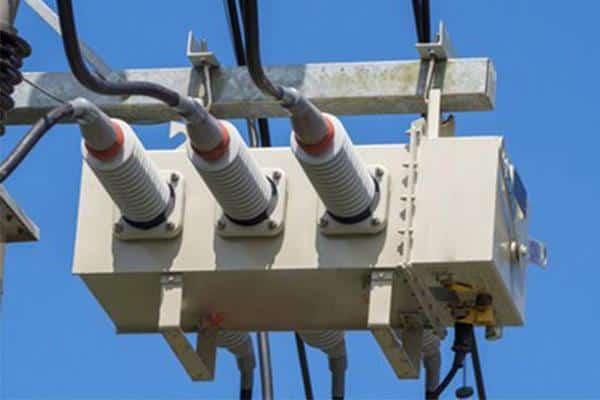

A load break switch (LBS) is a mechanical switching device designed to make, carry, and break currents under normal operating conditions. That last part — breaking current under load — is the defining feature. Unlike a simple isolator, a load break switch can safely interrupt the current flowing through a circuit while the system is energized and supplying load. It does this by incorporating an arc interruption mechanism that extinguishes the arc formed when contacts separate under load current.
The arc interruption methods vary by design. Some load break switches use puffer-type gas mechanisms, others rely on spring-loaded snap-action contacts to rapidly increase the gap distance, and some use arc chutes or ablative materials that cool and deionize the arc. Regardless of the specific method, the principle is the same: open the circuit under normal load conditions without damaging the switch or creating a safety hazard.
You'll find load break switches throughout medium-voltage distribution networks, typically at voltages between 1 kV and 38 kV. They're a staple in ring main units (RMUs), pad-mounted switchgear, and industrial distribution systems. They're used for routine switching operations; isolating sections of a network for maintenance, rerouting power through alternate feeders, or switching loads between transformers. They are not designed to interrupt fault currents. That distinction is critical, and it's one we'll return to throughout this article.

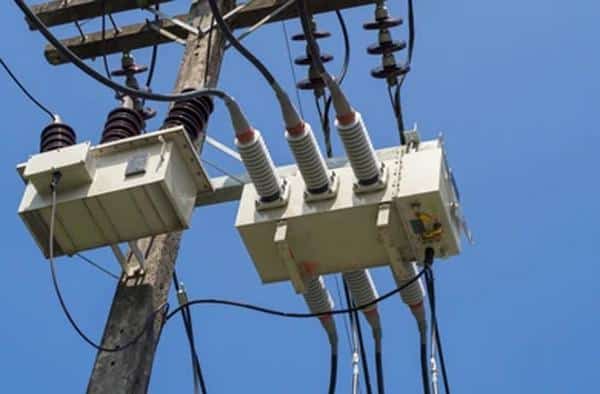

Before diving into head-to-head comparisons, let's establish a clear picture of the switch types that will be measured against the load break switch. Each one has a specific purpose, and understanding that purpose is the first step toward making an informed selection.
A disconnector, which some might call an isolator, is a switching device designed to provide a visible isolation gap in a circuit. Its job is to ensure that a section of the system is completely de-energized and safe to work on. Disconnectors can open and close circuits, but only under no-load conditions. They have no arc interruption capability, which means opening a disconnector while current is flowing is pretty dangerous.
The resulting arc can sustain itself, damage the contacts, and create a flashover hazard. Disconnectors are found in substations and distribution systems where visible isolation is required for safety compliance, but they always work in conjunction with other devices that handle the actual current interruption.
Circuit breakers are the most capable switching devices in power systems. They can make, carry, and break not only normal load currents but also fault currents. Circuit breakers use sophisticated arc interruption technologies (oil, air blast, vacuum, or SF6) and are equipped with protective relaying that triggers automatic opening when fault conditions are detected. They are the backbone of substation protection and are essential wherever fault-level currents need to be managed. However, this capability comes with higher cost, greater mechanical complexity, and more demanding maintenance requirements.
Vacuum switches and SF6 (sulfur hexafluoride) switches represent two advanced arc interruption technologies. Vacuum switches interrupt arcs in an evacuated chamber where the lack of gas molecules means the arc cannot sustain itself once the contacts separate. They're compact, reliable, and require minimal maintenance.
SF6 switches use sulfur hexafluoride gas, an extremely effective electrical insulator and arc-quenching medium, to extinguish arcs. SF6-based equipment has been an industry workhorse for decades, offering excellent performance in compact footprints.
However, the landscape is shifting. SF6 is a potent greenhouse gas with a global warming potential approximately 23,500 times that of CO2 and an atmospheric lifetime of over 3,000 years. Regulatory pressure, particularly in Europe, is driving a move away from SF6 in new installations. This environmental dimension adds a layer of complexity to any switch selection decision that involves SF6 technology.
This is the comparison that catches people off guard most often. To the untrained eye, a load break switch and a disconnector might look similar. Both are relatively simple mechanical devices used in distribution systems, but the operational difference between them is fundamental, and confusing the two is a mistake with potentially lethal consequences.
The core distinction is arc interruption capability. A load break switch can safely open a circuit while current is flowing through it. A disconnector cannot. Operating a disconnector under load will produce an uncontrolled arc that can damage equipment, cause burns, or ignite surrounding materials. This is why proper operating procedures require that the load be interrupted by another device (a load break switch or circuit breaker) before a disconnector is opened.
In practice, this means the two devices serve different roles in the same system. The disconnector provides visible isolation, while the load break switch handles the actual switching operation. In many installations, you'll find them used in sequence: the load break switch opens first to interrupt the current, and then the disconnector opens to provide the isolation gap required for safe maintenance access.
Where each one belongs is straightforward: if you need to switch load currents as part of normal operations, you need a load break switch. If you need to provide a visible isolation point for maintenance safety, you need a disconnector. If you need both functions, you need both devices or a combined unit that integrates both capabilities into a single assembly, which is increasingly common in modern switchgear designs.

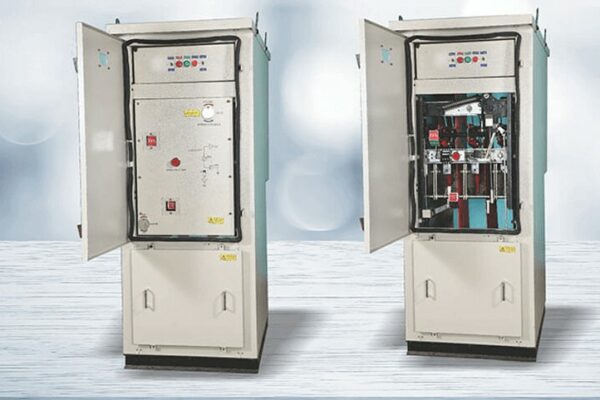

This is the comparison that generates the most debate, and it's where nuance matters most. On paper, a circuit breaker does everything a load break switch does and more. It can interrupt load currents and fault currents. It can be equipped with automatic protection. It's the more capable device by every technical measure. So why would anyone choose a load break switch over a circuit breaker?
The answer lies in understanding what you actually need. A circuit breaker's fault-interruption capability is essential where fault currents must be managed; at the head of feeders, at transformer terminals, and at critical switching points in the network. But in many distribution-level applications, the switch position doesn't require fault-clearing capability. It only needs to switch load currents under normal conditions. In these situations, deploying a circuit breaker is like using a fire truck to water a garden: it works, but it's an expensive and unnecessarily complex solution.
Load break switches are mechanically simpler. They have fewer moving parts, fewer components that can wear or fail, and less demanding maintenance requirements. A well-maintained LBS can operate reliably for decades with little more than periodic inspection and lubrication. A circuit breaker, by contrast, requires regular testing of its protection relays, verification of trip circuits, timing tests, contact resistance measurements, and — depending on the interrupting medium — oil analysis, SF6 gas quality checks, or vacuum integrity verification.
Cost is another consideration. A load break switch typically costs a fraction of a comparable circuit breaker. When you're outfitting a distribution network with dozens or hundreds of switching points, the cost difference is substantial. And when you factor in the reduced maintenance burden, the total cost of ownership favors the LBS significantly at positions where fault interruption is not required.
The honest scenarios are clear: use a load break switch where the function is routine load switching, sectionalizing, or isolation under normal conditions. Use a circuit breaker where fault currents must be interrupted, where automatic protection is required, or where the consequences of a switching failure are too severe to accept.
In many systems, the two devices work together; the circuit breaker provides fault protection at the feeder level, while load break switches handle sectionalizing and routine switching further downstream.
This comparison gets more technical, and it's particularly relevant for engineers evaluating medium-voltage switchgear options. Both vacuum and SF6 technologies have been used extensively in load break switches and circuit breakers, so the lines can blur. But there are important distinctions worth understanding.
Arc interruption behavior differs significantly between the three technologies. In a conventional load break switch, the arc is typically extinguished through rapid contact separation, gas puffing, or ablative materials. The process is effective for load-level currents but has inherent limitations at higher current levels.
Vacuum interrupters extinguish arcs by drawing contacts apart in a high-vacuum environment. When the current passes through zero (as it does every half cycle in AC systems), the arc cannot reignite because there's no ionizable medium present. This gives vacuum switches excellent interrupting performance with minimal contact erosion. SF6 switches exploit the outstanding dielectric and thermal properties of sulfur hexafluoride gas to cool and deionize the arc rapidly, enabling interruption of high currents in very compact assemblies.
The environmental dimension cannot be ignored. SF6's extreme global warming potential has made it a regulatory target. The European Union's F-Gas Regulation is progressively restricting the use of SF6 in electrical equipment, and several manufacturers have already introduced SF6-free alternatives for medium-voltage switchgear. For new installations, the trend is clearly moving toward vacuum technology and alternative insulating gases. If you're specifying equipment today, the long-term regulatory trajectory of SF6 should weigh heavily in your decision.
Where vacuum and SF6 switches outperform conventional load break switches is primarily in interrupting capacity and compactness. Vacuum and SF6 devices can handle higher fault currents and fit into smaller enclosures. These advantages matter in space-constrained installations or applications that demand higher performance. However, for standard distribution-level load switching, a well-designed conventional load break switch delivers the necessary performance at lower cost and with simpler maintenance requirements.
The practical takeaway: if your application demands high interrupting capacity in a compact form factor, vacuum technology is increasingly the preferred choice. If you're working with existing SF6 equipment, maintain it properly but plan for eventual replacement. And if your switching needs are straightforward load-level operations at distribution voltages, a conventional load break switch remains a sound, cost-effective choice.
After all these comparisons, it's worth stepping back and consolidating what makes load break switches genuinely valuable.
Load break switches have fewer components and simpler mechanisms than circuit breakers or SF6 switchgear. This translates directly into higher operational reliability. There are fewer things that can go wrong, fewer components that require adjustment, and fewer failure modes to monitor. In distribution-level applications where the switch may be located in a remote or difficult-to-access location, this simplicity is a genuine operational advantage.
Compared to circuit breakers that require regular relay testing, trip circuit verification, and medium-specific maintenance (oil testing, SF6 gas analysis, vacuum integrity checks), load break switches require comparatively little upkeep. Periodic visual inspection, contact condition checks, lubrication of operating mechanisms, and verification of electrical connections are typically sufficient. This reduced maintenance burden translates into lower ongoing costs and less downtime.
For applications that require load switching but not fault interruption, a load break switch delivers exactly the functionality needed at a fraction of the cost of a circuit breaker. When you consider both the initial purchase price and the total cost of ownership over a 25- to 30-year service life, the economics strongly favor the LBS in appropriate applications.

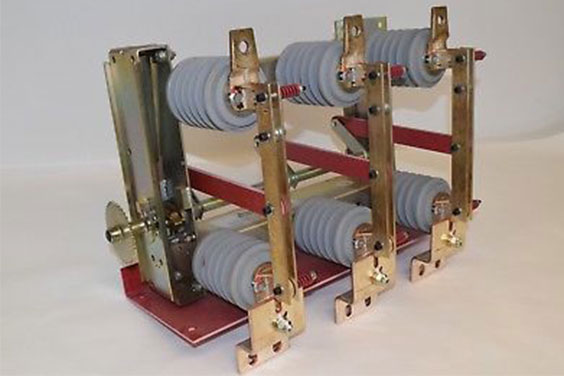

Making the right switch selection doesn't require guesswork. It requires asking the right questions and letting the answers guide you to the appropriate technology. Here's a practical framework you can apply to any switching position in your network.
Consider the system voltage, the normal load current, and the available fault current at the installation point. If the switch only needs to handle normal load currents, a load break switch is likely sufficient. If it needs to interrupt fault-level currents, a circuit breaker is required.
This is the single most important question. If the switching position is downstream of a protective device (a circuit breaker or fuse) that handles fault clearance, then the switch at that position only needs load-breaking capability. If it's the primary protective device, it must be a circuit breaker.
Factor in not just the purchase price but the ongoing costs of maintenance, testing, and eventual replacement. A more expensive device that requires expensive specialized maintenance may not be the best economic choice if a simpler device would serve the same function.
If you're installing in a region with restrictions on SF6, that narrows your options. If the installation is in a harsh environment (high humidity, extreme temperatures, heavy contamination), the robustness and sealing of the switch become critical selection factors. If space is limited, compact vacuum or SF6 technology may be necessary despite the higher cost.
There is no universally "best" switch in power distribution. There is only the right switch for the right application.
A circuit breaker is indispensable where fault currents must be managed. A disconnector is essential where visible isolation is required. Vacuum and SF6 technologies shine in high-performance, space-constrained applications. And the load break switch delivers reliable, cost-effective load switching where that's exactly what's needed.
