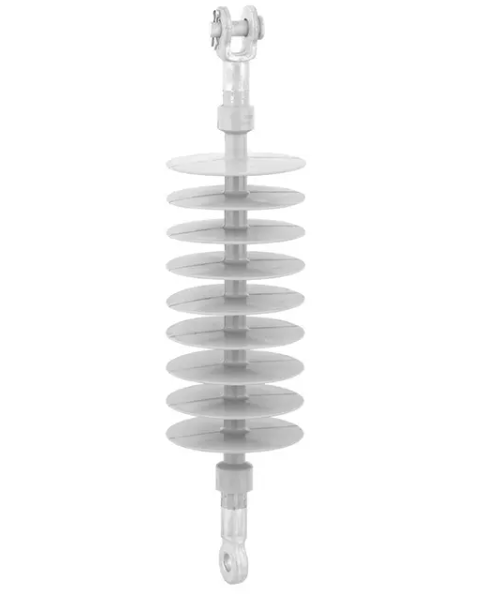

12kv Composite Long Rod Insulator Overhead Transmission Line

Insulators are widely used in overhead transmission lines to provide mechanical support and electrical protection, as well as in distribution lines and substations. Silicone rubber is the most widely used polymeric insulation material for high voltage insulators.HAIVO brand composite insulator made of silicone rubber.Depending on voltage considerations, different kinds of insulators are used in power systems,we have Pin insulator,strain insulator,suspension insulator.post insulator,long rod insulator,horizontal post insulator,Railway insulator,shackle insulator,stay insulator.

Availability:



Inquire Add to Basket

Description

Product Overview

12kV composite long rod insulators are specialized electrical components designed specifically for overhead power distribution lines operating at 12kV voltage levels. Produced by HAIVO using high-grade silicone rubber and reinforced fiberglass technology, these composite insulators for overhead transmission lines provide reliable mechanical support and electrical isolation for distribution networks. Compliant with IEC 61109 standards, our 12kV composite insulators offer a lightweight, compact alternative to traditional porcelain insulators, significantly reducing installation and maintenance costs for power utilities and infrastructure contractors.

Technical Specifications

Main Technical Parameter
Main Technical Parameter
Model	Speciﬁed Mechanical load(KN)	Spacing H (mm)	Arcing distance (>mm))	Minimum Creepage distance	Lightning impulse Withstand voltage (>=KVp)	Wet power frequency withstand voltage (>=KVr.m.s.)	Factory model
CS70XZ-100/465	70	360	215	480	100	50	FXBW-15/70
CS120XZ-100/465	120	400	215	480	100	50	FXBW-15/120
CS70XZ-120/450	70	413	275	544	120	60	FXBW-17.5/70
CS120XZ-120/450	120	513	275	544	120	60	FXBW-17.5/120
CS70XZ-125/480	70	461	320	550	125	70	FXBW-24/70(20mm/ KV)
CS120XZ-125/480	120	490	320	550	125	70	FXBW- 24/120(20mm/KV)
CS70XZ-145/745	70	500	355	750	145	80	FXBW-24/70(31mm/ KV)
CS120XZ-145/745	120	529	355	750	145	80	FXBW- 24/120(31mm/KV)
CS70XZ-185/900	70	541	400	900	185	95	FXBW-36/70
CS120XZ-185/900	120	570	400	900	185	95	FXBW-36/70
CS70XZ-230/1120	70	610	455	1250	230	105	FXBW-36/70(31mm/ KV)
CS120XZ-230/1120	120	650	455	1250	230	105	FXBW- 36/120(31mm/KV)
CS70XZ-325/1815	70	860	710	2210	325	150	FXBW-72.5/70
CS120XZ-325/1815	120	900	710	2210	325	150	FXBW-72.5/120
CS70XZ-550/3150	70	1220	1055	3400	550	230	FXBW-126/70
CS120XZ-550/3150	120	1255	1055	3400	550	230	FXBW-126/120
CS120XZ-650/3625	120	1475	1270	4100	650	275	FXBW-145/70
CS210XZ-650/3625	160	1654	1485	4495	650	250	FXBW-145/160
CS120XZ-1050/6300	210	2550	2300	8500	1050	460	FXBW-245/210
CS160XZ-1050/6300	160	2430	2200	7000	1050	400	FXBW-252/160
CS120XZ-1425/9075	120	3180	2780	9880	1425	570	FXBW-363/120
CS210XZ-1425/9075	210	3440	3000	10450	1425	570	FXBW-363/210
CS120XZ-2250/13750	120	4450	4050	14100	2250	740	FXBW-550/120
CS210XZ-2250/13750	210	4450	4050	13850	2250	740	FXBW-550/210

Core Performance Advantages

Lightweight & Easy Installation

Weighing significantly less than equivalent porcelain insulators, our 12kV composite long rod insulators simplify transportation and installation processes. Their compact design reduces the load on transmission towers, allowing for more efficient tower design and lower overall project costs.

Enhanced Anti-Pollution Performance

The silicone rubber housing exhibits excellent hydrophobic properties, preventing water film formation and reducing the risk of flashovers in polluted environments. This makes our insulators ideal for use in urban areas, industrial zones, and agricultural regions with varying levels of air pollution.

Vibration & Moisture Resistance

These composite long insulators feature excellent anti-vibration capabilities, ensuring stable performance even in areas with high wind speeds or seismic activity. The integrated high-temperature vulcanized silicone rubber sealing system provides superior moisture resistance, protecting the internal fiberglass core from degradation.

Target Applications

12kV overhead power distribution lines in urban and rural areas

Residential and commercial power distribution networks

Industrial plant internal power distribution systems

Rural electrification projects

Temporary power supply systems for construction sites and events

Customization & Bulk Supply Services

HAIVO provides tailored solutions for 12kV overhead transmission line insulators to match your specific project needs. We offer custom end fitting configurations, shed profiles, and color options (red, gray, white standard). For large-scale distribution network upgrades, we provide bulk pricing and flexible delivery schedules to align with your construction timeline. Our production facilities are equipped to handle high-volume orders, ensuring consistent quality and on-time delivery for regional and national power projects.

Why Choose HAIVO

HAIVO specializes in manufacturing high-performance composite insulators for power distribution systems. Our products undergo comprehensive electrical and mechanical testing to ensure compliance with international standards. We leverage advanced injection molding and crimping technologies to produce insulators with consistent quality and long service life. Our experienced engineering team works closely with power utilities and contractors to provide technical support and customized solutions, helping you optimize your power distribution infrastructure.

FAQs

Are these 12kV composite insulators suitable for coastal areas?

Yes, our silicone rubber insulators offer excellent salt spray resistance, making them ideal for coastal distribution networks.

What is the expected service life of these insulators?

Under normal operating conditions, our composite insulators have a service life of 25-30 years, significantly longer than traditional porcelain insulators.
