Engineers and procurement teams evaluating transmission line arresters face a market that doesn't make the job easy. Established global manufacturers sit alongside emerging regional competitors, and virtually every product claims superior protection, enhanced reliability, and cost-effective performance.
Cutting through that noise to identify what actually differentiates products in real-world transmission applications requires a clear framework and an honest willingness to look beyond the marketing.
This article offers an objective, practical comparison of the leading transmission line arrester products and solution types, structured around the performance criteria that matter in field conditions. We'll establish what these arresters actually need to do, map out the main technology types, compare how the market's leading offerings measure up, and provide a decision-making framework you can apply to your own projects.
Transmission line arresters exist to interrupt a failure cascade before it starts. A lightning strike to a transmission tower or conductor induces a traveling voltage wave that, if uncontrolled, causes insulator flashover.
That flashover triggers a fault, which trips the line, and, on heavily loaded networks, can initiate cascading failures across interconnected sections. Switching overvoltages, generated during line energisation, reclosing, or fault clearing, present a different but equally damaging threat: sustained high voltage that stresses insulation and, if repeated frequently enough, leads to progressive degradation.
Transmission line arresters intercept both types of events. Installed in parallel with insulators, they provide a controlled, low-impedance path for surge energy, clamping the voltage seen by the insulation and preventing flashover without requiring the line to trip. Done well, they dramatically improve lightning outage rates and extend insulation service life.
Four performance benchmarks should anchor any product comparison.
First, energy absorption capability: the arrester must absorb the full energy of the surge events it will encounter across its service life, including multiple strikes in rapid succession, without thermal runaway or mechanical failure.
Second, discharge current handling: the arrester must safely conduct the expected peak surge currents without damage.
Third, protective level: the residual voltage during discharge must be low enough to protect the insulation it parallels.
Fourth, long-term reliability: arresters installed on transmission towers are not easily inspected or replaced, so the design must be stable across decades of field exposure with minimal degradation.
Gapless zinc oxide (ZnO) arresters are the dominant technology for transmission line protection. They contain no spark gap as the ZnO valve blocks themselves respond directly to overvoltage through non-linear resistance, conducting surge current when voltage rises and blocking it under normal conditions. The absence of a gap eliminates the mechanical complexity and variability that gaps introduce, and gapless designs respond in nanoseconds, providing consistently tight voltage clamping.
What separates well-engineered gapless designs from mediocre ones comes down to ZnO block quality, thermal design, and housing integrity. High-quality varistor discs with tightly controlled electrical characteristics ensure stable protective levels and predictable energy handling. Thermal management within the arrester body determines whether it can survive multiple surge events in quick succession without degrading. Housing design determines whether it survives the environmental exposure of an exposed tower installation across a realistic 25 to 30-year service life.

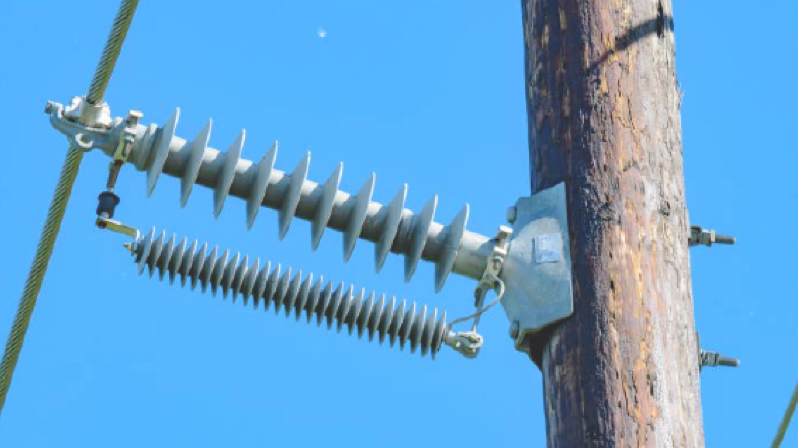

EGLAs introduce a deliberately engineered air gap in series with the ZnO elements. Under normal conditions, the gap isolates the ZnO blocks entirely from the system voltage, meaning no continuous leakage current flows through the varistors.
When a surge occurs, the gap sparks over and the ZnO blocks handle the energy absorption. After the surge, the gap clears and the arrester returns to its isolated state.
This operating principle offers a meaningful advantage in applications where normal power frequency voltage would otherwise cause accelerated ZnO ageing. It also simplifies monitoring; a damaged EGLA typically loses its gap characteristics in a detectable way. The trade-off is that gap sparkover voltage introduces variability in the protective level, and the mechanical gap requires careful design to perform consistently across wide temperature and pollution ranges. Engineers typically favour EGLAs for long, lightly loaded lines where leakage current concerns are significant and protective level variability is acceptable.
IGLAs incorporate a gap within the arrester housing rather than externally. This protects the gap from direct environmental exposure while retaining some of the benefits of gap isolation.
IGLAs occupy a niche between gapless and EGLA designs. They’re used in applications where full gapless construction is considered overly conservative, but a fully external gap is mechanically impractical. They are also less common in new installations than either gapless or EGLA designs, but remain relevant in specific retrofit and upgrade contexts.

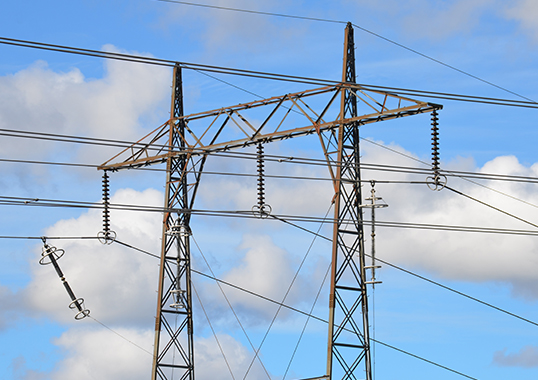

Any useful product comparison needs an explicit evaluation framework. The criteria used here are: energy handling capability and thermal stability; protective level and residual voltage performance; housing material and environmental durability; mounting flexibility and installation design; compliance with IEC 60099-4 and IEC 60099-8; long-term reliability data and field track record; and total cost of ownership across a realistic service life.
These criteria reflect what actually differentiates products in the field — not what catalogue specifications make look comparable on paper.
Energy handling is where product differences become most consequential. In high keraunic regions, a transmission line arrester may face multiple energy events per season.
The question is not just whether rated energy absorption is adequate for a single event, but whether the arrester can survive repeated events with the thermal recovery time typical of real operating conditions. Leading gapless designs are characterised by high line discharge class ratings (Class 4 or Class 5 under IEC 60099-4), substantial ZnO block cross-sections, and thermal stability testing after multiple surge sequences.
Products that only meet minimum requirements at the low end of Class 3 are technically compliant but offer limited margin in demanding environments.
Transmission line arresters operate in conditions far harsher than most substation equipment. Tower-mounted units face direct UV exposure, temperature cycling, ice loading, wind-induced mechanical stress, and a wide range of pollution environments.
Silicone rubber housings have become the standard because their hydrophobic surface maintains pollution performance in wet conditions, resists UV degradation better than EPDM alternatives, and offers mechanical resilience that porcelain cannot match. Differences in silicone formulation quality matter over a 25-year service life; premium compounds maintain hydrophobicity through extended exposure while lower-grade materials can lose it within a decade. Leading manufacturers provide UV resistance and tracking resistance data; request it.
The practical comparison between EGLAs and gapless designs comes down to three trade-offs. Protective level consistency: gapless designs provide tighter, more predictable voltage clamping because there is no gap sparkover variability; EGLAs introduce a statistical spread in protective level that must be accounted for in insulation coordination. Thermal ageing: EGLAs avoid the continuous leakage current that gapless designs must manage, which can be meaningful on very long lines or at high altitudes where system voltage stress on ZnO blocks is elevated. Installation and monitoring: gapless designs are typically simpler to install and more straightforward to monitor remotely, while EGLA gap condition can be assessed visually or through specific diagnostic methods.
EGLAs retain a strong case in long-line applications, high-altitude installations, and situations where ZnO ageing under continuous voltage is a documented concern. The mounting and diagnostic implications of the external gap should be factored into the total installation picture.
Tower installation introduces practical constraints that don't appear in laboratory test conditions. Mounting hardware must be compatible with a wide range of tower attachment points and conductor configurations. The arrester must also be positionable to maintain the required arcing distance to the conductor and tower structure. Weight and physical dimensions affect handling at height. Lead and corona ring requirements add complexity.
Products with pre-engineered mounting bracket systems and clear installation guidance reduce on-site engineering time and installation errors. Some manufacturers offer modular systems that simplify adaptation to different tower geometries. For retrofit projects on towers not originally designed for arrester installation, mounting flexibility is often the deciding practical factor between otherwise comparable products.
In regions with ground flash density above 4 to 6 flashes per square kilometre per year, energy handling is the primary selection criterion. Gapless designs with Class 4 or Class 5 line discharge ratings, high ZnO block cross-section, and demonstrated multi-shot thermal stability are the appropriate choice.
EGLA designs are less well-suited here because gap variability introduces uncertainty precisely when consistent performance under repeated events matters most.
Long lines energised and de-energised frequently, or lines where ferroresonance is a known concern, present a different primary threat. The protective level against switching surges and the arrester's ability to handle the longer-duration energy of switching events becomes more important than lightning discharge class.
EGLAs can offer advantages here by avoiding cumulative ZnO stress on very long lines, while carefully selected gapless designs with appropriate rated voltage are also valid. Insulation coordination analysis for the specific line configuration should drive the selection.
Retrofit installations on existing towers carry constraints that greenfield projects don't face: fixed attachment points, existing clearance geometry, and sometimes legacy mounting hardware. Products with flexible mounting systems, compact form factors, and clear dimensional data simplify the engineering work. Some manufacturers have developed retrofit-specific configurations with adjustable brackets. For large retrofit programmes, supplier willingness to provide application engineering support is a meaningful differentiator.
Cost pressure is real. The honest answer is that budget constraints should drive specification efficiency, not specification reduction. A correctly specified arrester from a second-tier manufacturer with credible type test documentation and a verifiable field track record can represent genuine value.
The risks to avoid are products whose type test compliance is unclear, whose ZnO quality is unverifiable, or whose housing durability hasn't been demonstrated in relevant conditions. Focus specification effort on energy handling and housing; these are where cutting corners has the most visible long-term consequences.

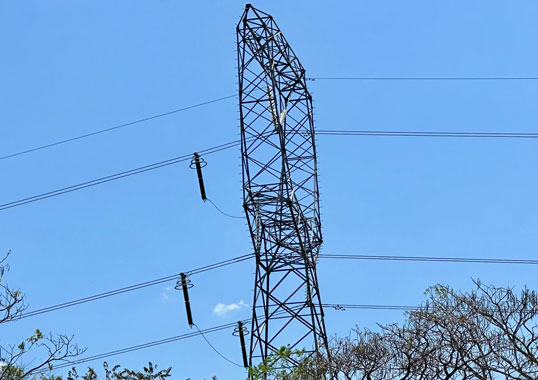

IEC 60099-4 covers metal oxide surge arresters without gaps for AC systems. It’s the primary standard for gapless transmission line arresters. IEC 60099-8 addresses externally gapped line arresters. Both standards define type tests that verify electrical performance, energy handling, mechanical capability, and housing integrity under standardised conditions. Compliance with these standards is a genuine baseline and will confirm that the product has been tested and has passed at the specified performance level.
What the standards do not capture is equally important. They do not test multi-shot thermal performance under field-realistic sequences, evaluate 25-year housing degradation under UV and pollution, or verify batch-to-batch manufacturing consistency. Compliance certificates also don't distinguish between an arrester that marginally passes minimum test thresholds and one that passes with a significant margin. A standards-compliant arrester from an established manufacturer with published margins and field data is a fundamentally different proposition from one with nothing beyond the certificate.
Type test data is the starting point, not the conclusion. Field performance over time is where the real differentiators emerge; where product quality differences invisible in catalogue specifications become apparent. When evaluating suppliers, ask for reference installations in comparable environments and request failure rate data for comparable product generations. Established manufacturers can typically provide this; those who cannot should be evaluated more cautiously.
A structured approach prevents selection being driven by familiarity or price alone. Start with the application environment and threat profile:
Identify the dominant surge threat, ground flash density, and switching frequency.
Match energy handling and protective level requirements to candidate products, filtering out those whose line discharge class or residual voltage don't meet the insulation coordination requirements.
Evaluate housing and mounting compatibility with existing infrastructure, and verify standards compliance with actual type test documentation.
Also, remember to factor in supplier support quality, product availability, and the total cost of ownership including installation and expected replacement intervals. Shortlist your options based on field track record in comparable conditions, not on catalogue specifications or brand recognition.
The best transmission line arrester solution isn't necessarily the most expensive or the most well-known — it's the one that matches your specific application environment, meets the energy handling and protective level requirements your network actually demands, and comes from a supplier with the documentation and track record to back up their product claims.
The comparison framework in this article is a starting point, not a one-time read. Return to it as your project requirements evolve, as new products enter the market, and as field performance data from your own installations accumulates.
