The most significant innovation in drop-out fuse technology is the integration of smart monitoring and communication capabilities. Traditional fuses are blind devices—an operator only knows a fuse has blown after a customer outage report or a patrol truck physically spots the hanging fuse.
Modern smart fuse cutouts now embed wireless communication modules (LoRa, NB-IoT, or 4G) and sensors directly into the fuse holder or mounting bracket. These devices can monitor real-time parameters such as:
· Load current and temperature,
· Fault occurrence and magnitude,
· Fuse status (healthy, blown, or aged).
When a fault occurs, the smart fuse sends an immediate alarm to the Distribution Management System (DMS) or the field crew’s mobile device, pinpointing the exact GPS location of the fault. This reduces outage response times from hours to minutes. Furthermore, by analyzing load profiles, these devices enable predictive maintenance, alerting utilities to potential overload conditions before the fuse blows, allowing for proactive load balancing.
With the proliferation of renewable energy sources like rooftop solar, distribution grids are experiencing bi-directional power flows and significantly higher fault currents than they were originally designed for. Traditional fuses often struggle with these elevated short-circuit levels, leading to violent fuse expulsion or even equipment destruction.
Recent advancements in arc quenching materials are addressing this challenge. Manufacturers are developing SF6-free environmentally friendly arc extinguishing chambers and utilizing advanced nylon composites with high arc resistance. The new generation of drop-out fuses features:
· Higher interruption ratings (up to 40kA symmetrical), capable of handling the high fault currents generated by grid interconnections.
· Ventless or controlled-vent designs that eliminate the expulsion of ionized gases. This is critical for installations in underground vaults, pad-mounted transformers, or areas with strict environmental regulations, where traditional open-expulsion fuses are hazardous.
The 'drop-out' action—where the fuse tube falls away from the top contact under gravity—is mechanically simple but requires a truck roll to reset. In the context of transient faults (e.g., temporary tree branch contact or animal interference), which account for 70-80% of all outages, this manual reset leads to unnecessary operational expenditure and prolonged downtime.
The market is now seeing the emergence of recloser-type fuse replacements or motorized fuse-switch combinations. These devices look like standard cutouts but house a vacuum interrupter or a motorized mechanism. Key features include:
· Remote control: Operators can open or close the switch via SCADA (Supervisory Control and Data Acquisition) from a control center, isolating a faulted section without dispatching a crew.
· Auto-reclosing logic: For transient faults, the device can automatically reclose after a preset delay, restoring power instantly without human intervention.
· Battery backup: Advanced models include integrated power take-off (PT) coils that harvest line energy to charge batteries, ensuring communication and control capabilities even when the primary line is de-energized.

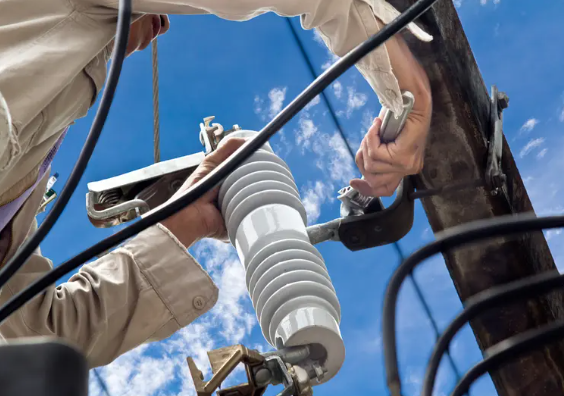

Safety for linemen is a paramount concern in grid modernization. Traditional fuse handling involves exposed live parts and the risk of arc flash during installation or removal.
The latest innovations focus on dead-front construction and load-break capability. New drop-out fuses are being designed with insulated housings and shielded connectors that eliminate exposed energized components. Additionally, many are now rated as full-load break devices, allowing linemen to safely disconnect a transformer under load using a insulated hot stick without drawing an arc.
Furthermore, there is a growing trend to combine overcurrent protection with surge suppression. Due to the increase in sensitive electronic loads (EV chargers, smart appliances) and exposure to lightning strikes, integrated combination fuses are emerging. These units house a metal oxide varistor (MOV) within the fuse base, providing transient voltage surge suppression alongside fault current interruption in a single compact package.
Environmental considerations are driving material innovation. The old porcelain and galvanized steel cutouts are being replaced by high-performance, UV-resistant engineering polymers (such as glass-filled polyesters and cycloaliphatic epoxies). These materials offer:
· Lightweight design: Reducing structural stress on poles and easing installation.
· Higher tracking resistance: Preventing electrical leakage paths in polluted environments (coastal areas or industrial zones).
· Recyclability: Aligning with circular economy goals for utility infrastructure.
Development Trends Outlook
As we look toward 2030 and beyond, the drop-out fuse will evolve from a simple protective device into a Grid Edge Node. Several trends will define this evolution:
A. AI-Driven Coordination
With the complexity of microgrids, traditional time-current coordination (TCC) curves are becoming insufficient. Future fuses will utilize digital coordination where smart fuses communicate with upstream reclosers and downstream DER inverters to dynamically adjust protection settings based on real-time grid topology.
B. Cybersecurity
As fuses become connected devices, they also become potential entry points for cyberattacks. Future innovations will focus on embedded cybersecurity chips and encrypted communication protocols (IEEE 2030.5) to ensure that the protection layer remains invulnerable to external threats.
C. Modularity and Interoperability
Utilities are demanding 'mix-and-match' capabilities. The future trend is toward modular fuse systems where the base (cutout) remains permanent, but the fuse holder can be swapped with different technologies—a standard fuse link for simple protection, a smart sensor module for monitoring, or a remote-controlled actuator for advanced grid management—without changing the mounting hardware.
The drop-out fuse, one of the oldest components in the electrical grid, is undergoing a renaissance. Driven by the demands of smart grid reliability, renewable integration, and operational safety, it is transforming into an intelligent, communicative, and active asset. For utilities and industrial operators, adopting these next-generation fuses means moving away from reactive, labor-intensive maintenance toward a proactive, automated, and resilient distribution network. As material science and digital technology continue to converge, the future of overcurrent protection is not just about failing safely—it is about staying connected intelligently.
