The fundamental role of a drop-out fuse cutout is to protect distribution transformers, lines, and equipment from damage caused by sustained overcurrents, typically due to faults like short-circuits or severe overloads. Its operation is elegantly simple yet highly effective. The fuse link, housed within a porcelain or polymer insulator, is designed to carry normal load current. During a fault, the fusible element melts, creating an arc. The accompanying arc-quenching material (often sand) extinguishes this arc. The resulting release of tension causes the fuse carrier (the fuseholder) to pivot downward, physically "dropping out." This action achieves two vital goals:
1. Clear Isolation: It provides a highly visible, physical open gap in the circuit, confirming fault clearance and ensuring the safety of maintenance personnel.
2. Load Breaking: While not a switch in the traditional sense, it can safely interrupt load currents up to its rated switching current, allowing for manual switching of transformer loads.
Choosing the correct drop-out fuse is vital for system reliability. Improper selection can lead to nuisance operations or, worse, failure to interrupt a fault. Key parameters include:
1. System Voltage: The fuse's rated voltage must equal or exceed the system's maximum line-to-line voltage.
2. Continuous Current Rating: The fuse link's current rating should be carefully chosen based on the protected equipment's full-load current. A common practice is to select a link rated 1.3 to 2.5 times the transformer's full-load current to allow for inrush currents without unnecessary blowing. Coordination with the transformer's damage curve is essential.
3. Interrupting Rating (Breaking Capacity): This is the maximum fault current (kA) the fuse can safely interrupt. It must be higher than the available fault current at the installation point.
4. Time-Current Characteristic (TCC): Fuse links come in different speed types (e.g., K-speed, T-speed). Selecting the right characteristic ensures proper coordination with upstream and downstream protection devices, isolating only the faulted section.
5. Mounting and Environmental Considerations: Construction (porcelain vs. polymer), mounting angle, and climatic conditions (pollution, ice, wind) must be factored into the selection.
Correct installation ensures mechanical integrity and electrical performance. Critical steps include:

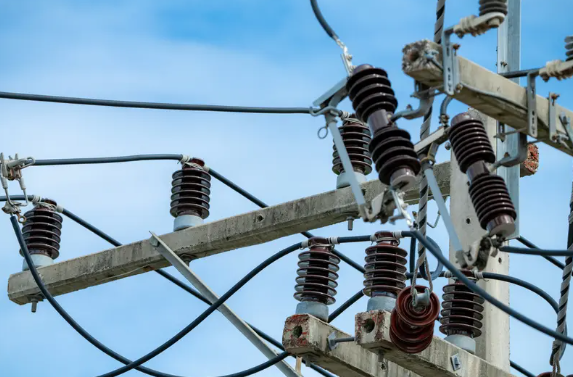

· Pole Mounting: The cutout should be mounted firmly on a sturdy crossarm, at the correct angle (typically 15-30 degrees from vertical) to ensure proper drop-out operation.
· Electrical Connections: Use properly sized conductors and secure clamps. Maintain adequate phase-to-phase and phase-to-ground clearances as per standards.
· Fuse Link Installation: Always install the fuse link with the correct tension. The pulling ring should be facing outward for easy operation. Never use a makeshift wire or link not rated for the cutout.
· Safety Compliance: Installation must adhere to national and local electrical safety codes (like NEC, IEC standards). Proper grounding of the cutout's mounting bracket is mandatory.
The true efficacy of a drop-out fuse is realized through deliberate protection coordination. It acts as the first line of defense in a coordinated scheme.
· Downstream Coordination: It must protect the distribution transformer. Its TCC curve should lie below and to the left of the transformer's damage curve.
· Upstream Coordination: It must coordinate with the upstream recloser or substation breaker. The fuse's minimum melt curve should be to the right of the recloser's fast curve to allow the recloser to clear temporary faults without causing a sustained outage (fuse saving). For permanent faults, the fuse operates, isolating the fault before the recloser's slow or backup curve trips.
· Lateral Protection: On feeder laterals, DOFCs isolate faulty sections, preventing an entire feeder from de-energizing.
The drop-out fuse cutout remains an indispensable component in overhead distribution networks. Its simplicity, visual fault indication, and combined protective/isolation functionality make it a robust and economical solution. A deep understanding of its selection based on electrical characteristics, meticulous installation, and strategic integration into the overall protection coordination scheme is essential for any distribution engineer or utility professional. By adhering to these guidelines, utilities can enhance system reliability, improve safety for personnel and the public, and minimize outage times, ensuring a resilient and efficient power delivery system.
