Fuses are designed to be the sacrificial element in an electrical circuit, interrupting overcurrents by the melting of a calibrated element. While their operation seems straightforward, long-term reliability is compromised by environmental and operational factors. Failure is not always due to correct operation; it can be premature, caused by insulation failure across the body (flashover) or degradation of the fusible element (aging). Such failures can lead to unprotected circuits, arc faults, and equipment damage. Proactive identification and maintenance are therefore not merely recommended but essential for robust electrical protection.

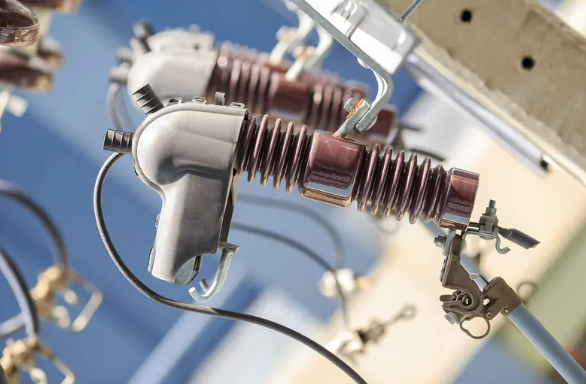

Flashover occurs when a conductive path forms across the external insulating surface (typically porcelain, glass, or polymer) of a fuse, causing a surface discharge that can bridge the terminals, often without melting the element.
The mechanism is a three-stage process:
1. Pollutant Accumulation: Dust, salt, chemical vapors, moisture, and industrial pollutants settle on the insulator. Hygroscopic (moisture-absorbing) pollutants are particularly dangerous.
2. Moisture Absorption: Under conditions of high humidity, fog, or light rain, the absorbed moisture dissolves the salts and creates a conductive electrolyte layer on the surface.
3. Discharge Initiation and Propagation: The reduced surface resistance allows leakage current to flow. This current heats localized areas, creating dry bands. The voltage stress across these dry bands intensifies, leading to partial arcing. These arcs progressively elongate, eventually bridging the entire gap in a full flashover event.
· Pollution Severity and Type: Coastal areas (salt), industrial zones (chemicals, conductive dust), and agricultural settings (fertilizer dust) pose high risks.
· Ambient Conditions: High humidity, condensation cycles, and fog are primary triggers.
· Insulator Design: Creepage distance (the path length along the surface between terminals) is critical. Shorter creepage distances are more susceptible. Surface shape and hydrophobicity also play a role.
· System Voltage: Higher voltage increases the electrical stress on the contaminated layer.
Aging refers to the gradual metallurgical and chemical change in the fusible element (often silver, copper, or tin-based alloys), which alters its time-current characteristic (TCC). An aged fuse may operate too slowly or, more dangerously, too quickly at rated currents, or fail to interrupt at all.
1. Oxidation: Heating from normal load currents or ambient heat causes oxidation of the element, especially at points of high resistance like notches. This increases resistance, leading to hotter operation and accelerated oxidation—a vicious cycle.
2. Thermal Cycling: Repeated heating (load variations) and cooling cause mechanical stress, potentially leading to fatigue cracks or changes in the crystalline structure of the metal.
3. Diffusion and Intermetallic Formation: In elements with solder joints (like in time-delay fuses), diffusion between different metals over time can alter the melting point.
4. Calibration Shift: All the above factors cause the element's effective cross-section to reduce or its thermal properties to change, shifting its TCC curve. The fuse may become "underrated," blowing at currents below its original rating.
A combination of routine inspection and advanced diagnostics is key to early problem detection.
· Visual Inspection (Routine): Look for visible tracks, discoloration, chalking, or a glazed, uneven surface. These are tell-tale signs of previous leakage current activity and aging of the polymeric or ceramic material.
· Infrared Thermography (Predictive): Under load, a contaminated insulator will show abnormal temperature gradients. Areas with higher leakage current will generate more heat. Thermal imaging can pinpoint hot spots before failure.
· Surface Resistance Measurement (Specialized): Using a guarded megohmmeter, surface resistance can be quantified under controlled humidity. A significant drop in resistance indicates hazardous contamination levels.
· Visual Inspection (Limited): For transparent fuse bodies, inspect for element discoloration (darkening), granular appearance, or sagging. Opaque fuses require other methods.
· Contact Resistance Measurement (Direct): Measure the millivolt drop across the fuse under rated load or inject a known DC current. A significant increase in resistance compared to a new fuse or historical records is a direct indicator of element oxidation and aging. This is one of the most effective field tests.
· Thermal Imaging (Indirect): An aged fuse with higher internal resistance will run hotter than a healthy fuse under the same load. Comparative thermal scans of similar fuses in the same panel can reveal outliers.
· Ultrasonic Detection (Advanced): Advanced aging or partial damage can cause microscopic partial discharges (tiny sparks). Ultrasonic detectors can pick up the high-frequency sound emitted by these discharges, indicating internal degradation.
A proactive maintenance program integrates cleaning, monitoring, and replacement.
· Regular, Correct Cleaning: Schedule cleaning based on environmental severity. Use appropriate methods:
· Dry Cleaning: For non-adherent dust (compressed air, brushing). Use caution to avoid embedding abrasives.
· Wet Cleaning: For adherent contaminants. Use deionized or clean water to prevent residue. Always de-energize the circuit first.
· Solvent Cleaning: For oily or chemical films, use compatible non-conductive solvents.
· Application of Silicone Grease or Hydrophobic Coatings: These treatments repel water, preventing the formation of a continuous conductive film. Coatings must be compatible with the insulator and re-applied per manufacturer guidelines.
· Design and Selection: In harsh environments, select fuses with longer creepage distances, polymeric housings with hydrophobic properties, or consider hermetically sealed designs.
· Implement a Condition-Based Replacement Program: Do not rely on a "run-to-failure" model. Base replacement on diagnostic findings:
· Replace fuses showing a >15-20% increase in DC resistance versus baseline.
· Replace fuses with significant thermal anomalies.
· Replace all fuses after a severe fault interruption, even if they appear intact, as the element may have been stressed beyond calibration.
· Maintain Historical Records: Log installation dates, operational environments, and results of resistance/thermal tests. This data informs optimal replacement intervals.
· Ensure Correct Loading: Avoid sustained operation above 75-80% of the fuse's nominal rating to minimize thermal stress and slow oxidation.
· Use High-Quality, Certified Fuses: Higher-quality elements and robust filler materials (like quartz sand) provide better stability and longer service life.
Fuses are not "fit-and-forget" components. The twin threats of surface contamination flashover and internal metallurgical aging are insidious processes that can silently compromise protection systems. A technical maintenance approach, moving from reactive to predictive, is paramount. By understanding the underlying mechanisms, employing a mix of visual inspection, thermal imaging, and contact resistance measurement, and executing a disciplined regimen of targeted cleaning and condition-based replacement, facility managers and maintenance engineers can ensure the hidden guardian of their electrical circuits remains vigilant and reliable. This proactive investment prevents costly unplanned outages and, most importantly, upholds the fundamental mandate of electrical safety.
