The primary threat during a fault, such as a short circuit or severe overload, is the immense thermal and mechanical stress imposed by the high fault current. This can rapidly degrade or destroy expensive equipment like distribution transformers. The drop-out fuse acts as a sacrificial, one-shot protective device with one critical mandate: to interrupt the fault current at its first natural current zero-crossing after operation begins, and to provide clear, visible isolation.
The operation is a precisely orchestrated sequence of physical events. The total clearing time—from fault inception to complete arc extinction and circuit isolation—typically ranges from 10 to 30 milliseconds for standard designs under high fault conditions.
The heart of the fuse is a precisely calibrated fusible element(often silver or tin-coated copper) housed within the fuse tube (or barrel). Under normal load, it carries the circuit current. When the current exceeds a predetermined threshold for a specified time (defined by its time-current characteristic), the element heats up rapidly due to I²R heating. For severe faults, this heating is instantaneous. The element is designed with notched "weak spots" that melt and vaporize explosively within the first millisecond of the fault, initiating the arc.
This is the critical phase where the fuse achieves current interruption.The fuse tube is lined with an arc-quenching material, typically fiberglass or a similar organic polymer.
· Gaseous Generation: The intense heat of the initial arc rapidly decomposes the inner lining, producing a large volume of high-pressure, non-conductive gas (e.g., hydrogen, CO₂).
· Arc Elongation & Cooling: This pressurized gas creates a turbulent, axial blast along the length of the tube. This blast forcefully elongates the arc column, cools it dramatically, and de-ionizes the plasma path.
· Current Zero Interruption: The combination of cooling and elongation dramatically increases the arc's resistance. At the next natural current zero crossing of the AC waveform (which occurs every 10 ms at 50 Hz), the dielectric strength of the de-ionized gas and the gap recovers faster than the rising system recovery voltage. The arc fails to re-strike and is permanently extinguished. This interruption is typically achieved within the first half to one full cycle after operation initiates.

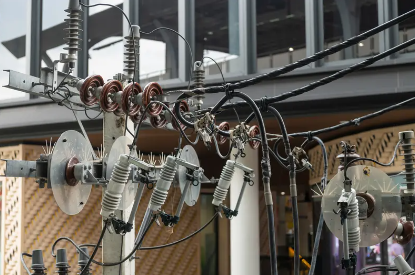

The"drop-out" mechanism provides the definitive safety feature. The fuse tube is mounted under tension via a hinge and latch assembly.
· During the high-pressure gas generation in Stage 2, the pressure is also vented strategically through exhausts, often creating a controlled downward thrust.
· This thrust, combined with the loss of mechanical integrity from the melted element, releases the latch.
· The upper contact assembly pivots, and the fuse tube rotates downward under gravity, falling to a fully open, suspended position (typically at a 90-degree angle).
· This provides mandatory, visible air-gap isolation—a clear indication of operation and a safe, isolated section for maintenance crews. This mechanical action occurs immediately after arc extinction.
1. Ultra-Fast Current Limiting: By interrupting at the first possible current zero, the fuse drastically limits the let-through energy (I²t) and peak current (Ip) that reaches downstream equipment. This minimizes thermal and electrodynamic stress on transformer windings.
2. Autonomous and Reliable Operation: It requires no external control power, batteries, or communication links. Its physics-based operation is inherently fast and reliable.
3. Definitive Isolation: The visible drop-out state eliminates any ambiguity about the circuit status, enhancing safety for personnel and preventing accidental re-energization of a faulted section.
4. Cost-Effective Protection: It provides a robust, maintenance-free primary protection layer for individual assets like transformers or line sections at a relatively low cost.
The drop-out fuse is a masterpiece of electromechanical design simplicity and effectiveness. Its ability to leverage the physics of arc generation, gaseous explosion, and elongation to achieve interruption within a single AC cycle makes it a cornerstone for overhead distribution protection. By acting in these critical milliseconds, it serves as the first and most vital line of defense, absorbing the brunt of fault energy and shielding your valuable primary equipment from irreversible damage. For engineers designing or maintaining overhead networks, understanding this precise, high-speed operation is key to implementing effective and economical asset protection strategies.
