Every year, electrical hazards occur at the workplace - many of which can be prevented with the right disconnect switch. Disconnect switches play an essential role in the safety and efficiency of power systems.
However, there are two main types of them: fused and non-fused disconnect switches. In this blog post, we will analyze their differences and how to choose the right one.

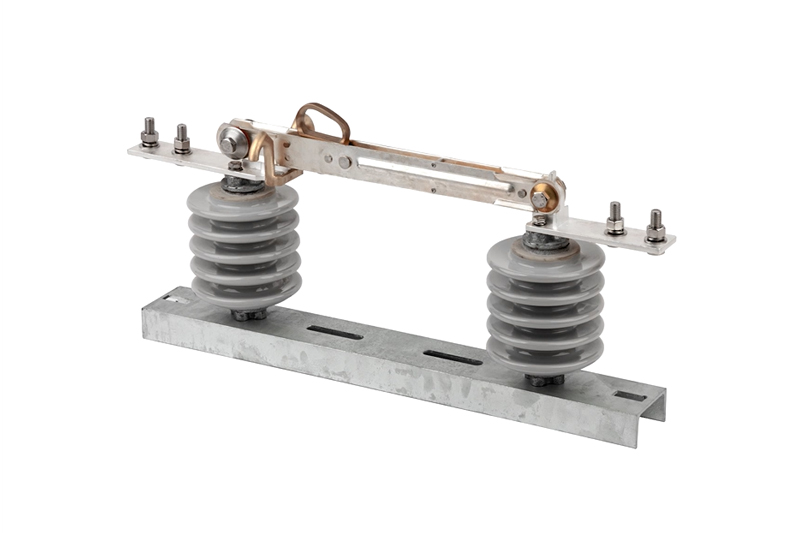

A disconnect switch (safety switch, isolator switch) is a mechanical device that is designed to de-energize an electrical circuit for service or maintenance. It is made to cut off power from the equipment, protecting it from electrical hazards and ensuring workers' safety.
The main purpose of disconnect switches is to provide a physical circuit break so that no electrical current goes on to the downstream equipment in case of a repair or maintenance.
A fused disconnect switch incorporates a switch together with an in-built fuse to cut the electrical circuit in case of an overcurrent or short circuit. It serves as a protective measure to ensure that too much current does not destroy equipment and lead to other dangers.
In the event of an overcurrent or fault, the fuse will either blow or open, preventing damage to the circuit and the equipment connected to it.
Benefits of a fused disconnect switch include:
Overcurrent protection
Short circuit prevention
Compliance with safety regulations
A non-fused disconnect switch is designed with a switch without a built-in fuse. It fails to offer overcurrent protection, but safely disconnects power to allow safety and maintenance. It is applied in those systems where other protective means, such as circuit breakers or fuses are already installed.
The mechanism of a non-fused disconnect switch is that, when it is opened, the contacts physically separate, leaving a gap between them which prevents the flow of current to downstream equipment. It is reliable, affordable, and easy to maintain.
The benefits of this switch include:
It's a simple design that does not need fuse replacement when there is a fault.
It is more affordable than fuse disconnects.
It is compact-sized and can take up less space in electrical panels.
Although the main purpose of a disconnect switch is to effectively isolate electrical equipment from a power supply in a safe way, fused and non-fused disconnect switches work in different ways.
A fused disconnect switch is used for two purposes. When the switch is in the off position, it will break the current flow to the downstream equipment and will eliminate the problem of re-energizing accidentally in case of maintenance or repair. The built-in fuse also protects equipment and conductors from excessive current caused by overload.
A non-fused disconnect switch doesn't serve a dual purpose, as it doesn't have a built-in fuse. It only isolates by disconnecting the electrical load from the power supply. It is used in applications that require a cost-effective, simple solution to safely shut down equipment for emergency purposes.
Electrical systems are vulnerable to overload and short circuiting risks that can destroy equipment, lead to downtimes and even fire hazards.
A fused disconnect switch contains a fuse that provides a protective feature. The fuse melts when an overcurrent occurs and immediately interrupts the circuit before the high current can reach the equipment connected to it. Thus, it not only provides fault isolation but also overcurrent protection for people and equipment.
A non-fused disconnect switch isolates faults only, without providing overcurrent protection. It relies on external protective devices, like circuit breakers or fuses, to handle overload events. As a result, it is used in systems where these other protective devices are already installed.
Disconnect switches differ in the way they provide feedback when there is a fault. A fused switch gives a visual fault indicator that there is an abnormal operation. When the current exceeds its level, there is a visibly blown fuse. In some advanced designs, there is a mechanical indicator to signal that the fuse has blown.
This indication helps workers identify problems quickly, replace the fuse, and restore power once the problem has been fixed. Some fused disconnects even have FSE window indicators that allow technicians to confirm if a fuse has opened without disassembling the switch.
A non-fused disconnect switch has no visible fault indication on its own. Since it has no fuse, it doesn't show any evidence when a fault occurs. Indication usually comes from external devices like circuit breakers. Thus, it can take workers a long time to identify the source of the fault and rectify the problem.
In a fused disconnect switch, when a fault occurs and the fuse is blown, the circuit stays interrupted until the fuse is physically replaced. Operators will need to identify the blown fuse, find a replacement that has the correct rating, and install it before it can start operation again. While this process is safe, it can lead to downtime for a period of time before the fuse is replaced.
A non-fused disconnect switch allows for a quicker power restoration. Once the circuit breaker or any other protective device has been reset after clearing the fault, the switch can simply be closed to restore power. This means no need to replace a fuse when maintenance or repair is needed.
The difference here is that while a fused disconnect needs replacement of protective elements, non-fused disconnects rely on external devices, allowing quicker re-energization once the external device has cleared the fault.
Fused disconnects have a higher initial cost due to the fuse component and more complex design. They also have high operational costs as there is need for maintaining spare short fuses and replacing them when a fault occurs. However, they make up for the cost by the added protection of electric equipment.
Non-fused disconnects have a lower initial cost, but they do not offer added protection. Since it does not have additional components like fuse, there is no ongoing costs of maintenance or replacement. The only maintenance cost is in the wear and tear on the switch mechanism itself, which is minimal compared to fuse replacement. This leads to reduced maintenance costs leads to lower operational costs over time.
When choosing which switch to use, you must balance the higher initial cost and upfront cost of fused disconnects with the lower maintenance cost of non-fused disconnects.
In fused disconnects, the fuse needs to be replaced after it has blown. To reduce downtime, spare fuses needs to be available. Moreover, since the fuses need to be replaced, it has recurring steps to maintenance schedules. Thus, it doesn't have a simple maintenance mechanism.
Non-fused disconnects are easily maintained. They have fewer moving parts with no additional components. Thus, they have lower long-term operational costs and are suitable in settings where fast maintenance and minimal intervention are needed.
A fused disconnect has a larger enclosure. This is because it is complex in design with fuse clips. These added components increase the size of the switch, which can make it unsuitable for small footprint facilities.
Non-fused disconnects has a smaller enclosure because it only has a switching mechanism. This makes it smaller in size than a fused disconnect. Thus, it can fit into compact equipment housings. It also allows for a cleaner and efficient panel design.
A fused disconnect switch has a complex installation process. Asides from the fact that the switch needs to be mounted, operators must install the correct type and fuse rating into the holders. This involves giving careful attention to the manufacturer's specifications to ensure proper alignment with the system.
Since this switch is large, it can also create challenges when fitting the switch into existing panels. Installation times are usually longer than non-fused disconnects.
Non-fused disconnects, on the other hand, has a simple installation process. Since there are no fuses to mount, you only need to connect the line and load conductors to the terminals to secure the switch in place. Its small size reduces need for space adjustments, making them suitable for large-scale installations where many devices are needed.
Fused disconnects are used in high-risk environments and heavy-duty applications. They are used in motor circuits, HVAC systems, and hazardous locations or industrial equipment where equipment damage would have drastic consequences.
Non-fused disconnects are used in light industry, commercial, and residential uses, where the primary thing needed is to safely isolate circuits. They are also used in backup power systems, low-load circuits, and large-scale installations.
Feature | Fused Disconnect | Non-Fused Disconnect |
Primary Function | To isolate circuits and protect equipment | To isolate circuits only |
Overcurrent Protection | Built-in fuses for protection | Rely on external devices |
Fault Indication | Blown fuse | None |
Power Restoration | Needs fuse replacement | Immediate switch reset |
Initial Cost | Higher | Lower |
Maintenance Complexity | Moderate | Low |
Enclosure Size | Larger | Smaller |
Installation Complexity | Higher | Lower |
Best for | High-current loads | Protected circuits |
System protection requirements: Check your system protection requirement. If it needs local overcurrent protection, you need a fused disconnect. If your system already has an external device that offers protection already, a non-fused disconnect is sufficient to safely isolate circuit when there is a fault.
Equipment type and load: Determine your equipment type and the load it can handle. If it is a heavy-duty equipment like HVAC systems, fused disconnects are required. For light-duty equipment that has existing protective devices already, non-fused disconnects are sufficient.
Safety standards and NEC/IEC compliance: Certain safety regulations require fused disconnects over non-fused disconnects in certain cases. For example, NEC or IEC codes may need fused disconnects in certain applications. It is recommended that you verify the industry and regional requirements before choosing one switch over the other.
Budget considerations: If you're on a budget, it is essential to consider which switch would be best. Fused disconnects have higher initial cost and operational costs. Non-fused disconnects offer a cost-effective solution for large-scale projects.
Maintenance convenience: Fused disconnects need fuse inspection and replacements. Non-fused disconnects have simple maintenance activity. If you need a switch that has maintenance ease, a non-fused switch is preferred over fused disconnects.
Space availability: If you have a small facility, a non-fused disconnect can suffice as it has small enclosure size. If you have a large facility, a fused disconnect can be efficient in protection and isolation.
Industry-specific regulations: Consider the specific industry you'll be using the switch for. Fused switches are suitable for industrial machinery or hazardous locations while non-fused switches are suitable in commercial facilities and general-purpose circuits.
Both fused and non-fused disconnect switches play key roles in circuit isolation and equipment protection when there is a fault. Understanding their differences helps you choose the right one for the safety and efficiency of your electrical systems.
If you are looking for a trusted manufacturer to partner with for electrical products, do not hesitate to contact Haivol Electrical.
Check if it has a fuse holder or a place to insert fuses on the switch's exterior or within its enclosure. If it does, then the switch is fused. If it doesn't, then it is non-fused.
It is not safe to make a fused disconnect switch non-fused. This is because they have different physical makeup. Conversion would violate electrical codes and safety regulations. It is best to purchase a non-fused switch if that's what you need.
None is better than the other. The choice depends on factors like cost, specific application, and equipment requirement.
Yes, you can use a fused disconnect for overcurrent protection and circuit isolation, but they are not to be used interchangeably. While breakers are resettable, fuses must be replaced.
Fused disconnects are needed in high-voltage applications, heavy machinery, and situations that need overcurrent protection and circuit isolation.
First, turn off the main power for safety. Then, visually inspect the switch to check for signs of damage, such as discoloration. If it's a fused disconnect, check the filament inside the fuse for breaks. For non-fused disconnect, check if the switch is in the ‘off' position. Furthermore, you can use a multimeter to test for electrical current.
