In the maintenance of overhead distribution lines, an essential element that ensures the reliability of every component is the top tie. Choosing a suitable top tie can have a huge influence on the operation of any power transmission project, either as a utility company or an electrical distributor.
This guide will unveil what criteria should be considered when making a selection and where to apply it. Let's dig in without hesitation.
A top tie is a fastener that anchors and holds conductors in position to the insulators in order to give them stability in terms of mechanical and environmental forces. They are made of steel wire or synthetic material and are riveted on the tower top at regular intervals between the transmission line spans.
Top ties are conductive, strong, durable, and corrosion-resistant thus aiding to stabilize the distribution of electrical power. Some of their functions include:
Connect the conductor with the insulator in order to avoid loss or wandering as a result of the wind.
Offer security to the transmission lines by decreasing the chances of sagging or broken conductors.
Prolong the life of the transmission line through the minimization of maintenance.
Allow easy installation and maintenance in order to reduce downtime and labor costs.
Polymer top ties: These are crafted of weather-resistant materials, which offer outstanding vibration control and abrasion resistance. They are portable, simple to fit and can be used in extreme conditions and high-pollution localities.
Armor rod-reinforced top ties: Top ties that are reinforced with armor rod gives balance and spreads the mechanical stress across the conductor. They also inhibit vibration and electrical discharge damages. They are cost-effective as they extend the lifespan of conductors. They suit high mechanical loading lines.
Distribution top ties: They offer strength and uniform electrical performance. They are economical and can be used in medium-voltage lines of distribution and large-scale networks.
Custom-designed top ties: These are tailor-made to fit particular projects in which standard top ties might not fit.

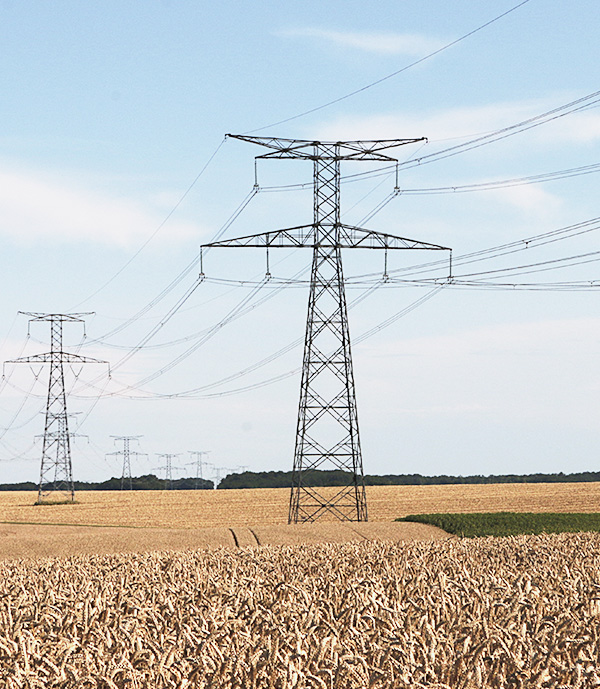

Overhead line towers are not designed the same way. As a result, top ties with a unique design are required for secure attachment.
For example, a suspension tower may require top ties that can resist vibration and secure placement under low mechanical stress. Tension or angle towers may require top ties that can handle side load and prevent the conductor from slipping.
Using the wrong top tie for the incorrect tower design will result in uneven stress distribution, which could lead to significant problems.
Overhead line systems span various terrains, including flat, mountainous, coastal, and urban areas. Each terrain type has unique challenges that require unique top ties that would be suitable.
In mountainous areas, armor rod-reinforced top ties with higher fatigue resistance are used to maintain reliability. However, in flat areas, standard top ties may be ideal as the mechanical stress is more predictable and evenly distributed.
Coastal areas with strong winds may require ties with corrosion-resistant areas, while desert terrains may require polymer ties to withstand extreme solar radiation.
A suitable top tie must be able to withstand the mechanical stress given by the conductor. These stresses include vertical loads, horizontal loads, and vibration impact. If the top tie's mechanical capacity doesn't match that of the conductor, it could lead to conductor slippage, wear, and failure.
On the other hand, overspecifying, or using too many parameters with unnecessarily heavy-duty fittings, may lead to high cost without benefits.
Therefore, calculate the expected mechanical load based on span length, conductor weight, and environmental load factors. This helps to ensure a balance between safety and cost-effectiveness.
Top ties must comply with local and international standards to ensure they are designed, manufactured, and tested to give the required mechanical strength. Some of these standards include IEEE and IEC specifications, which cover the standards for conductor accessories.
Top ties that align with standards are usually expensive than others, but in the long run, they provide excellent electrical performance and long-term durability. Using a non-compliant top tie may cause premature failure, reduced conductor span, and higher maintenance costs.
Therefore, work with suppliers who can provide full test reports and certifications of their top ties to prevent operational downtime and financial loss.
A suitable top tie should be easy to install. Businesses are usually on tight schedules and crews must install hundreds of fittings a day in challenging landscapes. A top tie with a complex installation system may slow down productivity and increase downtime.
It is necessary to provide an efficient, safe and adaptable top tie, which is designed in ergonomic shapes and pre-formed structures. The installation process may also be simplified by color coding of the conductor size which will minimize the errors made in the field.
Furthermore, easy installation improves workers' safety as less time is spent working on heights.
A suitable top tie must possess excellent mechanical strength to withstand continuous mechanical and environmental stress. It should also be manufactured with premium materials like steel, polymer, and aluminum alloy to resist wear, corrosion, and fatigue.
Choose a top tie that is durable and can function continuously without frequent replacements and maintenance. This way, you will achieve maximum service life and save considerable cost.
There are various conductors in terms of their diameter, their material composition and the design of their strands. The type and size of the conductor used also greatly play a role in the grip and protection by the tie.
Some conductors need ties that can hold the steel core firmly and yet at the same time insulate the weaker strands, whereas others need ties that do not have very much reinforcement, but still provide abrasion resistance. Copper conductors need ties of a certain coating to offer protection.
Failure to match the right tie design with the right size conductor may lead to slippage, more vibration and faster wear. Hence, make sure that the tie is of right size to fit the conductor sizes.
Different insulator types have unique shapes, surfaces, and performance requirements. For example, line post insulators require top ties that can secure conductors on the insulator's crown without causing abrasion. Polymer insulators require ties with a special coating that can prevent damage. Porcelain insulators need robust ties that can secure the conductor in place.
Installing the wrong top tie on the wrong insulator can cause conductor misalignment and premature aging. Therefore, always check for compatibility before you make your final decision.
Overhead distribution lines are subject to fluctuating environmental conditions. From UV radiation to salt spray, ice loading, and extreme temperatures, these stresses require top ties with anti-corrosion properties for superior performance.
Top ties should have strong fatigue resistance in the macro and micro-environment to become useful. This not only extends service life but also ensures consistent performance in harsh environmental conditions.
Choosing a suitable top tie requires you to consider the voltage class and application. The demands of an 11kV distribution line are different from those of a 33kV distribution line.
Lower voltage classes can use standard top ties for secure conductor placement. However, higher voltage classes may require specialized top ties to reduce the risk of electrical tracking and conductor wear.
Additionally, lines running through urban areas may use ties that are compact and aesthetically pleasing. However, rural areas may use ties that offer vibration control and can handle high mechanical loads.
Consult reputable manufacturers who can provide guidance on installation and maintenance tips. A reputable manufacturer should have industry expertise to deliver high-quality top ties that meet industry standards, thereby saving you costs.
Haivol Electrical is widely recognized as a reliable manufacturer with decades of experience with top ties for diverse environments.
While cost is a crucial factor, you mustn't neglect the total cost of ownership, focusing solely on the initial purchase price. An affordable top tie may save you money, but in the long run, it may lead to failure, frequent repairs, and conductor damage. The frequent maintenance will increase costs that will ultimately outweigh the initial price.
Therefore, balance the initial cost with long service life, reduced maintenance, and fewer failures. You may have to purchase a high-quality top tie at a higher price with reduced overall cost.
Having a regular check-up and maintenance program.
Periodically inspect on wear, corrosions and physical damages.
Check and readjust the tension every now and then to achieve even distribution of load to avoid unnecessary stress.
Examine the insulators to confirm that they are not damaged and change them where necessary.
Trim vegetation growth needed and watch out that their performance is not compromised.
Top ties secure conductors to insulators on overhead power transmission and distribution lines. They help to lower voltage distribution networks, providing stability and reducing the risk of conductor movement. They also stabilize power transmission over long distances.
Top ties are installed on utility poles and towers to hold the conductor in a secure position. They maintain structural integrity and proper functioning of the power delivery system.
Top ties are used in substations to secure busbars to insulators. They serve to maintain electrical connections for stable and efficient power distribution. They protect against fatigue, vibration, and side loads associated with higher mechanical stresses.
In renewable systems, like wind farms and solar farms, top ties are used to secure transmission lines. They help to ease integration into the power grid.
Top ties are used in urban and rural power distribution lines in medium-voltage networks within the 11kV-33kV range. They provide an economical and reliable solution for securing large conductors that carry electrical loads. They also minimize wear and ensure steady performance in networks that encounter fluctuations.
They are used to secure the overhead contact lines in railway electrification. Thus, they deliver reliable power to electric trains.
Consider coastal regions, salt spray, wind, ice, and industrial zones. Top ties are used in these areas to resist corrosion, pollution, and UV radiation that would otherwise accelerate material aging.
Top ties are more than just structural components; they are essential elements that form the foundation of a stable power delivery system. Selecting a suitable one can lead to reliability, safety, and efficiency of the power transmission network.
Having considered the factors that can help you decide, you must be curious to find a supplier that can provide what your business needs.
Look no further, as Haivol Electrical is here to address your pain points and help you achieve uninterrupted access to electricity. Contact us now for a quote.
Top ties are used in overhead transmission lines to protect conductors from excessive movement and abrasion. They help to reduce electrical faults and short circuits. However, because they are used outdoors, they are susceptible to UV radiation and other environmental pollutants. Therefore, choosing a top tie with durable material is essential.
The main components include preformed spiral wire, which is usually made of steel or aluminum alloy to grip the conductor and attach it to the insulator. The wire has high-tensile strength and is corrosion-resistant. Other components include the gripping section, tie tube, and identification flag with color codes for identification.
Top ties are made from aluminum alloy and galvanized steel. Materials like PVC are also used to enhance electrical performance and protection.
Make sure the top tie matches the specific conductor diameter and the insulator head-style. Refer to the manufacturer's catalog for tags, color codes, and other specifications.
Yes, we can. We offer top ties that are tailored to your projects to ensure efficiency and stability.
