Fuse cutouts or dropout fuses are protective devices that are used to maintain a stable and continuous power flow in distributor lines.
The selection of cutout fuse types is a sensitive issue because they are available in a variety of types and designs depending on the nature of application and voltage levels. However, this ultimate guide will help you to make an informed decision.

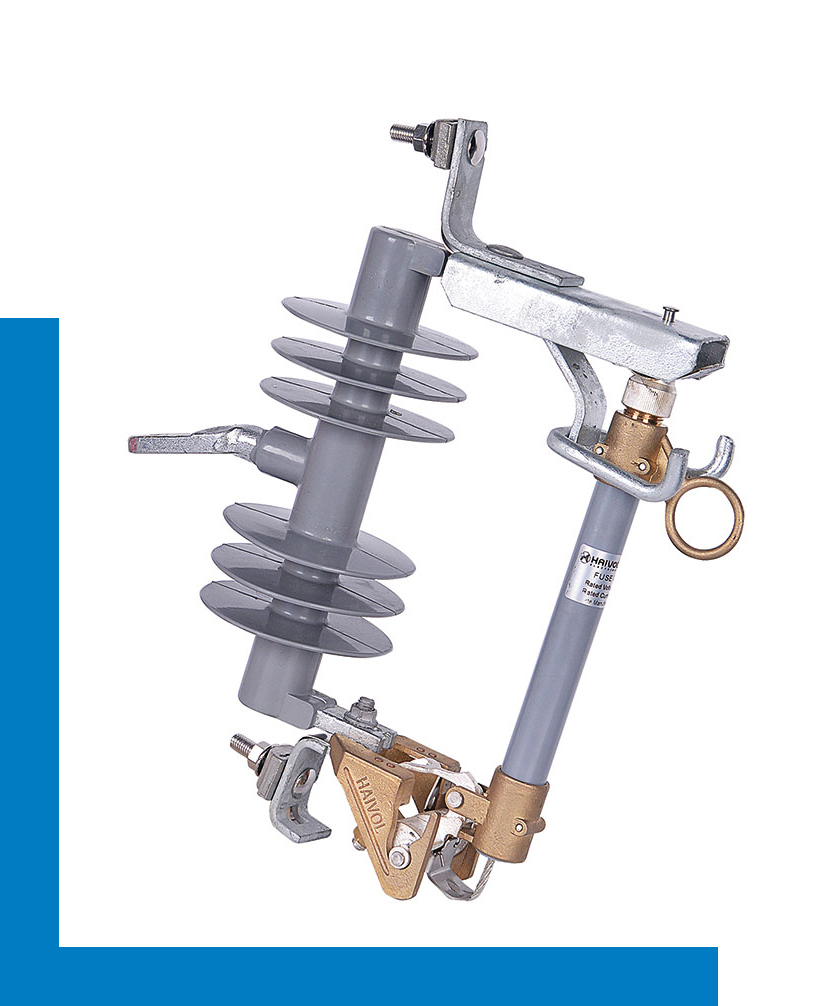

A cutout fuse is a protective device which includes a switch and a fuse in one unit to protect overhead distribution lines in medium-voltage distribution networks. Its parts are synchronized to ensure that distribution transformers and other downstream equipment are not exposed to overcurrent.
Here are some of its functions:
Guaranteeing overcurrent and short circuit protection of transformers, conductors, and other equipment attached to them.
Being a manual disconnecting switch, it provides protection to line workers when switching and isolating.
Autonomously switches off power to prevent damages of equipment.
Porcelain cutout fuse features a strong ceramic body which has a high mechanical strength and insulation. It can withstand temperature changes and this gives it stability during distribution networks. This is applicable in utility substations and locations where the environment is not very demanding. It also has a longer lifespan than some cutout fuse types.
However, it is heavier than other cutout fuse types like polymer. Furthermore, it is brittle and can break under extreme impact.
Polymer cutout fuses are made of anti-aging materials to extend their durability. They are designed with composite materials with silicone rubber. Thus, they are lightweight and resistant to weathering with low maintenance needs. They are installed in medium and high-voltage applications. They are also UV-resistant, corrosion-resistant, and pollution-resistant.
They are applied in coastal and industrial areas with high pollution. Their easy installation process and high weather-resistance make them suitable for renewables like solar and wind farms. However, they are slightly costlier than porcelain cutout fuse types.
The unique aspect about the dropout fuse is that it gives a visual signal of a fault. In the case of overcurrent and fuse explosion, the fuse link melts and falls, which makes it possible to detect the fault immediately and provides a better safety level.
The dropout fuse is applied in medium-voltage overhead distribution lines and transformer protection. Although they minimize the time of fault-finding, they need manual replacement to start functioning again.
This cutout fuse uses an arc-expulsion or arc-extinguishing tube to safely interrupt fault currents. When there is an overcurrent and the fuse link melts, an arc forms inside the tube. This cutout fuse expels gas externally to minimize damage.
It is cost-effective and widely used in distribution feeders and rural electrification projects that need simple yet effective protection. However, it may not be suitable in enclosed environments.
These cutout fuses feature a large arc chute, allowing them to be opened on a live circuit without the need for special tools. If a fuse is opened on a live circuit, there’ll be a large arc as the contacts open. This makes the cutout fuses easier and safer to handle.
This fuse operates as both a protective device and a load switch, capable of safely interrupting the load. It is used in frequent switching operations in distribution networks and industrial facilities requiring shutdown, maybe for maintenance or repair.
These cutout fuses allow the fuse holder from one manufacturer to be interchanged with the fuse support from another. Thus, workers can easily service the lines without needing to match the replacement fuse holder with the correct manufacturer’s fuse support. This allows for flexible replacements and upgrades.
They are used in industries that require standardized installations and distribution networks that need upgrades.
These fuses allow for easy operation. They come with a special feature, allowing you to manually break the fuse inside the holder. True, this destroys the fuse link, but it allows the de-energized cutout to be opened without needing special tools or creating a dangerous arc.
It is used in feeder and transformer protection for visual confirmation of fuse operation and quick isolation of faulted lines. You’ll need to manually replace the fuse to resume work operation.
These fuses are installed on distribution poles to protect overhead lines. They enable space-efficient installation, providing localized protection for transformers. They are also used in suburban power distribution. They are affordable and easy to install, but exposure to the outdoor environment can cause them to deteriorate quickly.
An open cutout fuse is made of a porcelain insulator and mounted on a support structure and a fuse holder. This cutout fuse features a simple, exposed construction that allows workers to inspect it when a fault occurs. It is used in low-voltage distribution systems and areas where quick identification is crucial.
Although it is economical and has a straightforward design, it offers limited weather protection.
The horn cutout fuse features an arcing horn that redirects the arc formed when there’s an overcurrent or electrical fault. The arc horns prevent damage to the fuse holder. They are used in medium-voltage distribution systems and high-voltage distribution systems to increase the lifespan of fuse components.
The horn cutout fuse has a slightly larger footprint on the pole. But it still protects rural and urban distribution systems.
In this cutout fuse, the fuse element is enclosed in a solid core made of materials like fiberglass. The solid core helps to extinguish the arc when an electric fault occurs. These cut-out fuses are used in higher-voltage distribution systems. For example, they are used in heavy-duty utility networks and areas with high pollution or coastal locations.
They have enhanced strength and insulation, being resistant to pollution and harsh weather. They have a long service life but a higher cost compared to other designs.
In these cutout fuse types, the fuse element moves to the side when there is an electrical fault. This mechanism provides isolation between the open contacts, reducing the risk of re-energization of the arc. This cutout fuse provides visual clearance during fuse operation, making it easy for workers to replace them in confined setups.
They have a space-saving design and are used in urban areas. However, they are less common and may require specialized training to put them to use.
In these types, the fuse element moves vertically, opening up at the center when there is an electrical fault. In other words, it is split into two parts when operated. This mechanism provides better arc quenching and distinct visual confirmation of isolation.
It enhances the safety of operators in distribution lines where clear visual breaks are needed. However, it has a slightly complex mechanism and may require training to use it effectively.
These cutout fuse types are advanced cutouts that feature mechanisms that allow them to reclose after a fault has been attended to automatically. It restores power automatically without manual intervention, reducing delays and downtime for temporary faults like momentary surges.
Designed with automatic reclosing capability, it allows the fuse to reset, minimizing truck rolls for utility crews. It is used in smart grids, remote installations, and modernized utility networks. It improves the reliability and reduces outages. However, it is more expensive and requires precise settings for efficient operation.
The cutout fuse type must be suitable for the operating environment to ensure effective performance. In coastal regions, where areas are exposed to pollution and salt contamination, polymer or solid-core cutout fuses are used as they are corrosion-resistant.
In areas with extreme temperatures, porcelain or solid-core fuses are used, as they excel in high-temperature environments. In areas prone to UV exposure, polymer fuses with silicone rubber insulation are used as they provide excellent UV resistance.
Every cutout fuse type is built to operate within a specific voltage and current rating. The rated voltage must withstand the system’s maximum operating voltage to prevent flashover. The rated current rating of the fuse link must match the normal load current of the system so it can effectively interrupt faults.
Choose a cutout fuse with a rated current that is equal to or slightly higher than the transformer’s full load current to ensure protection.
The speed of operation of the cutout fuse shows how quickly it will disconnect the electrical circuit when there is an overload or short circuit. Choose a fuse that can respond speedily so that it can minimize damage to the electrical system.
Choose a cutout fuse with significant maintenance and replacement ease to reduce downtime and improve productivity. Dropout cutout fuses provide a clear indication, reducing maintenance time. Load-break cutout fuses allow safe disconnection without special tooling. Automatic reclosing cutout fuses minimize delay.
Porcelain and polymer cutout fuses are commonly installed on utility poles to ensure a stable and uninterrupted power supply. Dropout and linkbreak cutout fuses enable workmen to quickly identify the fault and restore service. Automatic reclosing cutouts are installed in smart grid applications to reduce downtime.
Manufacturing plants, chemical plants, and mining operations use load-break cutout fuses to allow safe switching of circuits during maintenance. Interchangeable cutout fuses are used to protect sensitive equipment in medium-voltage networks, providing flexibility in certain facilities. Solid core cutouts are used in harsh industrial settings with pollution and extreme temperatures.
Renewable energy sources like solar and wind farms are often found in remote or challenging environments. Thus, they need durable and robust cutout fuses to withstand UV exposure and strong winds.
Polymer cutouts are used in solar farm installations as they are weather-resistant. Automatic reclosing cutouts are used in remote wind farm locations to reduce the need for technicians, as they operate automatically. Horn cutout fuses are used in open-air, high-exposure environments to safely extinguish arcs.
In commercial settings, cutout fuses are installed on distribution transformers and feeders to supply stable electric power to commercial buildings, business parks, and residential areas.
Side break and center break cutout fuses are used in areas where space is limited, like overcrowded utility poles or compact substations. Pole-mounted cutouts are used in suburban power distribution for transformer protection. Open cutouts are installed for quick inspection and maintenance, providing protection to sensitive equipment.
Cutout fuses provide long-term reliability, safety, and efficiency of distribution networks. Choosing the right cutout fuse type can help minimize downtime, reduce maintenance cost, and ensure the stability of your equipment.
If you’re looking for a reliable supplier to upgrade your existing infrastructure, Haivol Electrical is here for you. We have decades of expertise in delivering high-quality cutout fuses to meet your specific needs. Contact us now for a seamless experience.
A fuse cutout works by melting the fuse link and breaking the circuit when there’s an overload. Then the tube drops open, indicating a fault. This protects transformers and other sensitive equipment from damage.
A fuse cutout contains the insulator body, a fuse tube with the fuse link and contacts.
Yes, you can get a customized fuse cutout with specific voltage ratings. Haivol Electrical provides customized solutions tailored to specific business needs.
Polymer or composite cutout fuse type is best suitable for high-pollution environments because it is resistant to pollutants, chemicals, and moisture, compared to others.
A miniature circuit breaker (MCB) is considered better than a cutout fuse. It offers greater sensitivity, automatic reset, and quicker response to faults, enhancing the safety of equipment. However, cutout fuses are affordable, but they must be replaced after each use. Thus, they are less reliable than MCBs.
