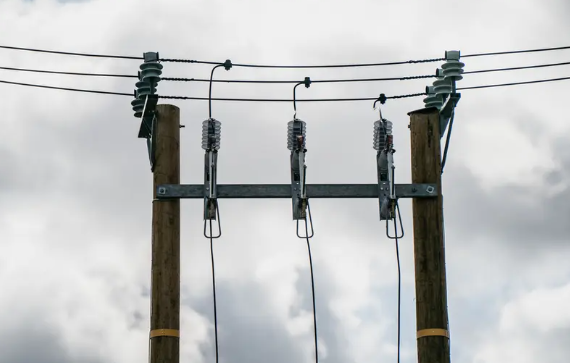

A dropout fuse cutout is a fused disconnecting device, typically installed on pole-mounted overhead lines. Its primary functions are:
· Overcurrent Protection: It interrupts fault currents (such as short-circuits or severe overloads) by melting its fusible element.
· Visible Isolation: Upon operation, its fuse carrier drops down, providing a clear, open gap in the circuit for both safety and quick fault identification.
· Switching Duty: It can often be used (with a suitable hook stick) to manually break small load currents for transformer isolation or maintenance.
Its simplicity—encompassing a base, a fuse holder (carrier), and the fusible link—belies its critical role in system protection and operational flexibility.
The transformer is a vital and expensive node in the distribution network. The dropout fuse is its first line of defense.
1. Coordinated Fault Interruption: The fuse is meticulously sized based on the transformer's full-load current and its inrush characteristics. The key is to select a time-current curve that allows for the momentary, harmless magnetizing inrush current (which can be 8-12 times the rated current) during transformer energization without operating. However, it must operate swiftly and reliably for sustained internal faults or secondary-side short-circuits. This coordination prevents unnecessary outages while ensuring the transformer is isolated before damage escalates.
2. Backup Protection: The transformer fuse provides backup protection for the downstream low-voltage circuit breaker or fuses. If a fault on the LV side is not cleared by its own protection, the primary-side dropout fuse will intervene after a short time delay, preventing transformer overheating and failure.
3. Isolation and Safety: After clearing a fault, the dropped fuse carrier provides a visible air break. This safely isolates the transformer from the energized primary line, allowing maintenance crews to work on the de-energized transformer with confidence, enhancing personnel safety.
On feeder branches or laterals, dropout fuses act as strategic sectionalizing points, enhancing overall system reliability.
1. Fault Localization and Isolation: By strategically installing dropout fuses at the tap-off points of branch lines, a fault on one branch is prevented from bringing down the entire main feeder. Only the fuse on the faulted branch operates and drops, isolating the faulty section. This minimizes the number of customers affected and significantly improves the system's SAIDI (System Average Interruption Duration Index).
2. Selective Coordination (Fuse Grading): This is a core strategy for branch protection. Fuses are selected with different time-current characteristics along the network—from the source (substation) to the end of a branch. In a fault event, the fuse closest to the fault (with the smallest ampere rating and fastest operating time) operates first. Upstream fuses, with slower characteristics, merely see the fault through the downstream fuse and do not blow. This selectivity localizes the outage precisely to the faulted segment, simplifying restoration.
3. Overload Protection for Line Sections: Fuses protect line conductors from sustained overloads that could cause thermal damage, sagging, or even start fires. The fuse rating is chosen below the safe current-carrying capacity of the protected line section.
· Precise Sizing: Fuse selection is not generic. It requires detailed analysis of load profiles, fault current levels, and coordination with adjacent protection devices.
· Proper Installation: Correct mounting angle, tension, and environmental clearance are crucial for reliable dropout operation and dielectric integrity.
· Regular Maintenance: Periodic inspection for corrosion, proper tension, and verification of fuse-link ratings is essential to ensure the protection strategy remains effective over decades.
Far from being simple, passive components, dropout fuse cutouts are intelligently applied, active guardians of distribution assets. Their strategic deployment in protecting transformers and sectionalizing branch lines forms the backbone of a resilient and safe overhead distribution system. By ensuring that faults are localized and cleared efficiently, they prevent minor incidents from cascading into widespread outages, safeguarding both critical equipment and the continuity of power supply. As grids evolve, these dependable devices continue to play an indispensable role in maintaining system integrity.
