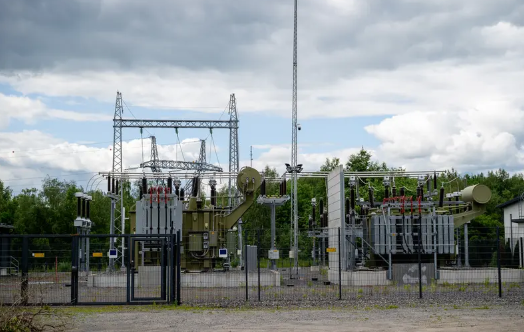

Unpacking the Protection Strategy of Load Break Switch & Fuse Combinations for Transformers

Disconnect Switch vs. Fuse

First, it is crucial to understand the distinct, complementary functions of each component.

The High-Voltage Fuse: This is the primary protective device. Its role is purely sacrificial. Engineered with precise time-current characteristics, the HV fuse provides extremely fast, current-dependent protection. Its key functions are:

· Short-Circuit Protection: It clears both high-magnitude internal transformer faults (e.g., winding faults) and sustained external short-circuits within milliseconds, effectively isolating the transformer and preventing catastrophic failure, fire, or tank rupture.

· Overcurrent Protection: It safeguards against persistent overloads that exceed the transformer's thermal capacity.

· Selectivity: Through proper coordination with upstream protective devices (e.g., reclosers or circuit breakers), the fuse can isolate the transformer fault without causing unnecessary wider outages.

The Load Break Switch: This is the primary operational device. It is designed for routine switching operations under normal load current conditions. Its functions include:

· Safe Making and Breaking: It allows operators to safely energize or de-energize the transformer for maintenance, commissioning, or network reconfiguration.

· Isolation: It provides a secure, visible air gap for isolation, ensuring the safety of personnel working on the downstream transformer and equipment.

· It is critical to note that a standard load break switch is NOT designed to interrupt fault currents. Attempting to do so would result in severe damage and potential hazard.

The Synergistic Protection Strategy

The core intelligence of the "combination" lies in assigning the right task to the right device, leveraging their respective strengths while mitigating their limitations.

1. Fault Condition Response:

When a fault occurs within the transformer's protected zone, the HV fuse acts as the first line of defense. It detects the excessive current and clears the fault by melting its fusible element and interrupting the arc. The LBS, in series with the fuse, remains passive during this fault interruption. However, in a combined apparatus, the switch is often designed to provide a "tripping" or "spring-release" mechanism activated by the fuse operation. When the fuse blows, the stored energy in a spring mechanism automatically opens the three poles of the load break switch. This achieves full three-phase isolation even for a single-phase fault, preventing the system from being fed back through a single-phased connection (which is detrimental to three-phase loads and the network).

2. Operational & Maintenance Scenarios:

For planned outages, the load break switch performs its duty seamlessly. An operator can open the switch under normal load, isolating the transformer. The fuse remains intact, ready for the next energization. This separation of functions prevents unnecessary fuse operations (which require replacement), saving on operational costs and downtime.

3. The Concept of "Fuse-Saver" Coordination (with upstream devices):

In overhead line applications, a more advanced strategy involves coordination with an upstream recloser. For temporary faults (e.g., tree branch contact), the fast recloser operates first, restoring power quickly. Only for a permanent fault (like a transformer fault) will the HV fuse operate. The blown fuse then signals the permanent fault location, and the associated LBS may open automatically to provide three-phase isolation.

Key Advantages of the LBS & Fuse Combination

· Cost-Effectiveness: This combination offers a significantly lower-cost alternative to a full circuit breaker for transformer protection, especially at distribution voltage levels (e.g., up to 36kV).

· Simplicity & Reliability: The fuse protection is utterly reliable, with no need for external control power, complex relays, or current transformers. Its operation is based on fundamental physical principles.

· Compact Footprint: Combined units (switch-fuse complexes) are compact, saving space in substations or on pole-top installations.

· Clear Fault Indication: A blown fuse provides a clear, visible indication of a fault event, aiding in rapid fault location and service restoration.

· Safety: The load break switch ensures safe isolation for maintenance, a critical safety requirement often overlooked in fuse-only installations.

Application Considerations and Best Practices

· Proper Rating Selection: The fuse must be meticulously selected based on the transformer's full load current, inrush current (to avoid nuisance blowing during energization), and the required protection curve. The LBS must be rated for the system voltage, normal load current, and making/breaking capacity.

· Type of Fuse: Current-limiting fuses are often preferred as they cut off fault currents before they reach their peak, reducing thermal and mechanical stress on the transformer.

· Environment: The combined apparatus must be selected for indoor (switchgear) or outdoor (weatherproof) applications.

· Coordination Studies: Ensuring proper coordination with upstream protection is vital for system selectivity and reliability.

Conclusion

The load break switch and fuse combination embodies a classic engineering principle: achieving optimal performance through the intelligent division of labor. By marrying the precise, fast, and sacrificial protection of the fuse with the safe operational control of the load break switch, this duo provides a robust, economical, and highly effective solution for distribution transformer protection. It strikes an ideal balance between performance, cost, and practicality, securing its status as the "ideal partner" in the electrical distribution network's defense strategy. For engineers designing or maintaining distribution systems, a deep understanding of this synergy is fundamental to ensuring asset longevity and network reliability.
