Technical and Economic Analysis: Drop-Out Fuse vs. Other Switching Devices in Power Distribution Systems

Overview of Drop-Out Fuses

A drop-out fuse combines a fuse link with a mechanical hinge mechanism. Under normal conditions, the fuse carrier remains in the closed position. When a fault current exceeds the fuse rating, the element melts, causing the carrier to drop open under gravity, providing both circuit interruption and visible isolation. They are primarily applied in overhead medium-voltage distribution systems (typically 10–36 kV) for transformer and feeder protection.

Comparative Cost Analysis

Initial Investment

Drop-out fuses are significantly lower in cost compared to circuit breakers (vacuum, SF6) or automated sectionalizers. A typical drop-out fuse unit may cost 70–90% less than an equivalent rated circuit breaker with its associated control and protection circuitry. Even compared to non-automated load-break switches, fuses are generally more economical in material and installation costs.

Installation and Maintenance Expenses

Installation is straightforward, requiring no auxiliary power or complex control wiring. Maintenance mainly involves visual inspection and occasional replacement of fuse links—a low-skill task. In contrast, circuit breakers demand periodic mechanical and electrical testing, lubrication, and sometimes specialized equipment and personnel, leading to higher lifecycle maintenance costs.

Cost of Operation and Outages

While economical upfront, drop-out fuses are single-use devices; after operation, the fuse link must be manually replaced. This can increase restoration time during faults compared to auto-reclosers or remotely controlled switches, potentially extending customer interruptions. However, in rural or less critical feeders, this may be an acceptable trade-off given the lower capital expenditure.

Reliability and Performance Comparison

Interruption Capability

Drop-out fuses reliably interrupt fault currents up to their rated breaking capacity (typically 5–12.5 kA). However, they lack the precision of circuit breakers, which can be coordinated with protective relays for selective tripping. Fuses also have a fixed time-current characteristic, which may not be adjustable post-installation.

Durability and Environmental Factors

Being simple mechanical devices with minimal moving parts, drop-out fuses exhibit high durability in outdoor environments. They are less susceptible to dust, moisture, or temperature variations than sophisticated electronic circuit breakers. However, repeated fault interruptions can degrade the fuse holder’s contact surfaces over time.

Failure Modes

Common failure modes include failure to drop open after melting (potential sustained fault) or mechanical jamming. Circuit breakers, while more complex, often include self-monitoring and backup protection features. Solid-state switches offer even higher reliability with no moving parts but at a premium cost.

Applicability and Scenario-Based Selection

Ideal Use Cases for Drop-Out Fuses

· Rural and Radial Distribution Feeders: Where fault levels are moderate and system automation is not justified economically.

· Transformer Protection: Widely used as primary protection for pole-mounted distribution transformers due to cost-effectiveness and simplicity.

· Temporary or Seasonal Installations: Easy to install and remove, suitable for construction sites or agricultural seasonal supplies.

· Isolation Points: As a visible break in overhead lines for maintenance safety.

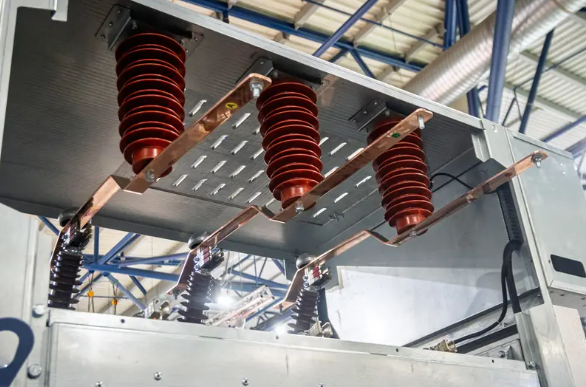

Where Other Devices Are Preferred

· Urban Networks or Critical Feeders: Circuit breakers with auto-reclosing and SCADA integration minimize outage durations.

· Frequent Load Switching: Load-break switches or circuit breakers are better suited for regular manual or remote switching operations.

· High-Fault Current Environments: Where fault currents exceed the interrupting capacity of fuses, modern circuit breakers or current-limiting fuses may be required.

· Automated Grids: Sectionalizers, reclosers, or solid-state switches enable smart grid functions like fault isolation and service restoration without manual intervention.

Integrated Technical-Economic Considerations

Selecting between drop-out fuses and other switching devices involves balancing grid reliability requirements against budget constraints. For utilities with extensive overhead networks and limited capital, drop-out fuses offer a proven, low-cost solution for overcurrent protection. In settings where outage costs are high or operational automation is prioritized, investing in circuit breakers or smart switching devices yields long-term benefits through improved service continuity and operational flexibility.

Hybrid approaches are also common: using drop-out fuses for branch protection and circuit breakers at substation feeders or critical nodes. This layered protection strategy optimizes both cost and reliability across the network.

Conclusion

Drop-out fuses remain a fundamental component in medium-voltage overhead distribution systems, offering unmatched economy and simplicity for many applications. However, evolving grid demands—including higher reliability, automation, and integration of distributed energy resources—are increasing the adoption of more advanced switching devices. System planners should perform a lifecycle cost-benefit analysis tailored to specific network characteristics, fault profiles, and reliability targets. In many cases, a combination of drop-out fuses and automated switching equipment provides the most balanced technical and economic solution.
