Ensuring Reliable Isolation And Safe Operation: A Guide To The Operation, Maintenance, And Fault Diagnosis of Drop-Out Fuse Cutouts

1. Introduction

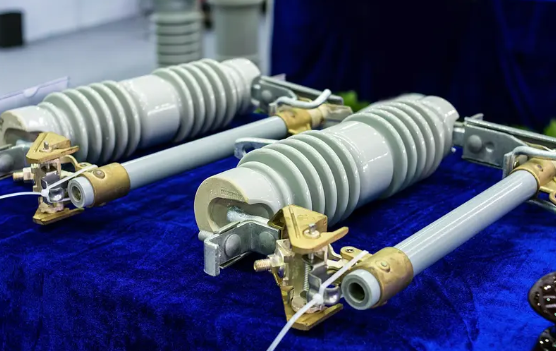

The drop-out fuse, or fuse cutout, combines a fuse link with a mechanical switching mechanism. Under normal conditions, it conducts current through the tensioned fuse link. During a sustained overload or short-circuit, the fuse element melts, creating an arc. The resulting gases assist in arc extinction, and the mechanical release causes the fuse tube to pivot downward, providing clear visible isolation. This "drop-out" action is a vital safety feature. Proper handling of these devices is paramount for personnel safety, equipment protection, and network reliability.

2. Core Principles for Safe Operation and Reliable Isolation

Safe operation is the foundation. Reliable isolation—ensuring a circuit is de-energized and safe to work on—is a key outcome.

· Pre-Operational Checks: Before any operation (opening or closing), visually inspect the cutout for cracks, severe corrosion, excessive dirt, or damaged components. Ensure the mounting is secure.

· Correct Switching Procedure:

 · Opening (Isolation): Always use a properly rated and insulated switching stick. Pull the fuse tube's ring downward firmly and steadily to interrupt load current. Do not jerk or yank. The tube should pivot freely to its fully open (down) position, establishing a clear air gap. This visible break is the primary isolation point. Never assume a fuse has blown and thus isolated the circuit; always open it manually with the stick.

 · Closing (Energizing): Again using the switching stick, lift the fuse tube and securely engage its contact into the upper holder. Apply firm pressure to ensure a solid electrical connection. A poorly seated tube can lead to overheating.

· Personal Protective Equipment (PPE): Operators must wear appropriate PPE, including voltage-rated gloves, face protection, and flame-resistant clothing, especially when operating under load.

· Load Current Consideration: Drop-out fuses are designed for load-breaking. However, they should not be used to interrupt significant fault currents; that is the function of the fuse element itself. The switching operation is for normal load current only.

· Isolation Verification: After opening, and before starting work on the isolated section, follow established lock-out/tag-out (LOTO) procedures. Where possible, use a voltage detector to confirm the downstream side is de-energized.

3. Systematic Maintenance Practices

Proactive maintenance prevents failures and extends service life.

· Regular Inspection Schedule: Implement a semi-annual or annual inspection routine, with more frequent checks in harsh environments (coastal, industrial, dusty).

· Key Maintenance Tasks:

 · Mechanical Integrity: Check for loose mounting hardware, corrosion on hinges and pivots, and smooth operation of the fuse tube. Lubricate moving parts sparingly with a non-conductive, temperature-stable lubricant.

 · Contact Inspection: Examine upper and lower contacts for pitting, arcing damage, oxidation, or overheating signs (discoloration). Clean contacts with a non-abrasive tool and ensure proper contact pressure. Worn contacts must be replaced.

 · Fuse Tube: Inspect for cracking, carbon tracking, or blistering from internal arcing. The tube must be clean and dry. Replace if damaged.

 · Fuse Link Replacement: Always replace a blown fuse link with one of the identical, specified current and voltage rating. Never attempt to rewire or modify a fuse link. Verify the new link's mechanical tension is correct.

 · Dielectric Strength: Keep insulator surfaces clean. Contamination from salt, dust, or industrial fallout can lead to tracking and flashover, especially in humid conditions. Clean insulators per manufacturer guidelines.

4. Fault Diagnosis and Judgment

Accurate diagnosis of problems is crucial for corrective action.

· Fuse Tube Blown and Dropped:

 · Single-Phase Drop: Typically indicates a fault (phase-to-ground or short-circuit) on that phase downstream. Investigate the protected equipment (transformer, line) for faults before replacing the fuse.

 · Two or Three-Phase Drop: Suggests a significant fault like a line-to-line fault. A three-phase drop could also result from a severe single-phase fault if the system grounding causes overvoltage on healthy phases. Systematically inspect the entire protected section.

· Fuse Tube Not Dropping After Fault: This is a dangerous condition. Possible causes:

 · Incorrect Fuse Link: The link rating is too high for the fault current, preventing timely melting.

 · Mechanical Seizure: Corrosion, dirt, or damage is preventing the tube from releasing. The fuse may have melted, but the circuit remains connected through the melted element, offering no protection or isolation.

 · Weak or Broken Mechanism: The tension spring may be broken or fatigued.

· Overheating at Contacts: Discoloration, melting, or oxidation around the contacts indicates:

 · Loose Connections: Poor contact pressure causing high resistance.

 · Corroded or Pitted Contacts: Increased resistance leading to I²R heating.

 · Sustained Overload: Current exceeding the fuse link rating for an extended period. Check load profiles.

· Partial Drop or Unstable Position: The tube may hang at an angle. This is often due to:

 · Worn or Misaligned Pivots/Hinges.

 · Incorrect Fuse Link Installation affecting tension.

 · Obstruction from debris or ice.

· Dielectric Failure (Flashover): Signs of arcing over the insulator surface indicate severe contamination, moisture ingress, or a cracked insulator that has compromised its insulating path.

5. Conclusion

The drop-out fuse cutout remains a simple, effective, and economical protection device. Its reliability, however, is not automatic. It hinges on disciplined, safe operational procedures that guarantee clear isolation, a consistent and thorough maintenance program that addresses mechanical and electrical integrity, and a logical approach to diagnosing common faults. By integrating these practices—using correct PPE, following switching protocols, performing regular inspections of contacts and mechanics, using proper fuse links, and accurately interpreting fault indications—utilities and maintenance teams can ensure these devices fulfill their vital role in safeguarding both personnel and the distribution network.
