Distribution networks face a fundamental challenge: approximately 80% of faults on overhead lines are temporary in nature, while the remaining 20% are permanent faults requiring physical isolation. Graded protection addresses this challenge through hierarchical device coordination—reclosers handle temporary faults through rapid auto-reclosing sequences, while dropout fuses provide economical fault isolation for permanent faults on lateral branches.
The coordination between dropout fuse cutouts and reclosers is essential for distribution system reliability. Protection coordination directly affects system reliability, and for feeder protection, coordination is required among fuse-fuse, fuse-recloser, and recloser-recloser configurations. When properly coordinated, this device pair can reduce outage duration from 30 minutes to as little as 120 seconds.

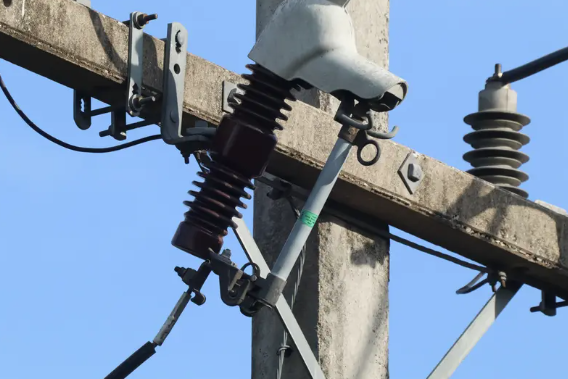

The dropout fuse cutout operates on the inverse time-current principle: when current exceeds the design threshold, actuation depends entirely on the inverse time-current characteristic curve. Higher fault current magnitudes melt the internal element within milliseconds, while minor transient surges allow brief operation without clearing. This calculated time delay ensures selective interruption, preventing permanent circuit damage while avoiding unnecessary power outages.
Fuse links are typically selected based on load current at the installation point, with the device required to conduct nominal current up to 150% of the measured value indefinitely without exceeding specified temperature limits. Different fuse types serve different purposes: K-speed fuses clear 200% overloads in 10 seconds or less, while T-speed fuses handle transformer inrush currents better, taking approximately 30 seconds.
Reclosers employ multiple operation sequences to distinguish temporary from permanent faults. A typical recloser configuration uses two instantaneous operations followed by two timed operations. The first opening clears approximately 80% of temporary faults, while the second clears an additional 10%.
Modern reclosers, such as cutout-mounted designs like the TripSaver II, execute an open-close-open-dropout sequence within a 5-second interval. The first opening operation occurs within 1.5 to 3.5 cycles, while the second opening follows a time-current characteristic equivalent to K-speed or T-speed fuse curves. This operating sequence provides excellent coordination with substation breakers and downstream transformer fuses.
3.1 Time-Current Curve Coordination
The foundation of dropout fuse-recloser coordination lies in time-current characteristic (TCC) curves. These curves, typically plotted on log-log paper, visualize the operating times of each device across the fault current spectrum. Proper coordination requires that for any given fault current, the recloser operates before the fuse during temporary faults (fuse-saving philosophy), while the fuse operates before the recloser's final lockout for permanent faults.
3.2 Fuse-Saving vs. Fuse-Blow Philosophy
Two primary coordination philosophies exist. In fuse-saving coordination, the recloser's fast curve is set to operate before the fuse melts for temporary faults. The recloser fast curve must be faster than the fuse's minimum melting time, allowing temporary faults to be cleared without fuse replacement. In fuse-blow coordination, fuses operate prior to recloser curves, isolating lateral faults and preventing the entire feeder from being disconnected.
For effective coordination, the minimum melting time of the load-side fuse must be greater than the recloser's fast curve multiplied by an appropriate factor, while the maximum clearing time of the fuse must be smaller than the recloser's delayed curve.
Coordination requires careful application of multiplying factors to compensate for cumulative heating effects on fuse links during successive recloser operations. The recloser opening curve, modified by the appropriate factor, becomes slower but must remain faster than the fuse curve.
These multiplying factors depend on reclosing time in cycles and the number of reclosing attempts. For example, with a 25-30 cycle reclosing time, multipliers of 1.25 for one fast operation and 1.80 for two fast operations are recommended. This ensures the fuse link does not experience thermal fatigue from multiple fault current exposures before a permanent fault is cleared.
With increasing distributed generation (DG) penetration, traditional coordination faces new challenges. Distributed generation can alter fault current magnitude and direction, potentially causing miscoordination between protective devices. Adaptive coordination methods address this by modifying the recloser's fast operation curve based on voltage conditions, maintaining coordination despite changing fault current levels.
When DG integration causes reverse fault currents, directional reclosers provide an effective solution. Studies show that providing directional recloser devices and increasing fuse-link ratings can prevent dropout fuse melting or burning out during fault conditions. Directional sensing allows the recloser to distinguish between upstream and downstream faults, maintaining proper coordination even with bidirectional fault current flow.
4.3 Advanced Cutout-Mounted Reclosers
Modern cutout-mounted reclosers represent a significant advancement in coordination optimization. These self-powered, electronically controlled single-phase reclosers can be installed in new or existing cutout mountings. They offer hundreds of TCC curve options, enabling easy integration and device coordination. Field deployments demonstrate substantial reliability improvements—in one case, three cutout-mounted reclosers prevented 59 temporary faults from becoming permanent outages within a single year.
4.4 Sectionalizer Integration
For further optimization, electronic sectionalizers can replace traditional dropout fuses, offering intelligent fault coordination with upstream reclosers. These devices detect fault current and count recloser operations, only opening after a predetermined number of operations, thereby isolating permanent faults while allowing temporary faults to clear naturally.
Successful implementation of dropout fuse-recloser coordination requires adherence to several key principles:
1. Proper Fuse Sizing: Fuse links should be selected based on transformer full-load current and inrush characteristics, typically rated at 1.3 to 2.5 times the transformer's full-load current.
2. TCC Curve Selection: The fuse curve must lie to the right of the recloser's fast curve for fuse-saving coordination, allowing the recloser to clear temporary faults without causing sustained outages.
3. Coordination Margin Verification: For fuse-fuse coordination, the maximum clearance time of the main fuse should not exceed 75% of the minimum melting time of the backup fuse at the same current level.
4. Reset Characteristic Consideration: Coordination must be secured over the entire reclose sequence, accounting for device reset characteristics between operations.
The matching and coordination of dropout fuse cutouts and reclosers form the cornerstone of effective graded protection in distribution networks. Through proper time-current curve selection, appropriate coordination margins, and the application of multiplying factors, these devices can achieve selective fault isolation that maximizes service continuity while minimizing equipment damage.
As distribution networks evolve with increasing DG penetration and smart grid technologies, adaptive coordination methods, directional reclosers, and intelligent cutout-mounted devices offer promising pathways for maintaining and enhancing coordination reliability. The continued development of these optimization strategies will be essential for realizing the full potential of graded protection in modern and future distribution systems.
