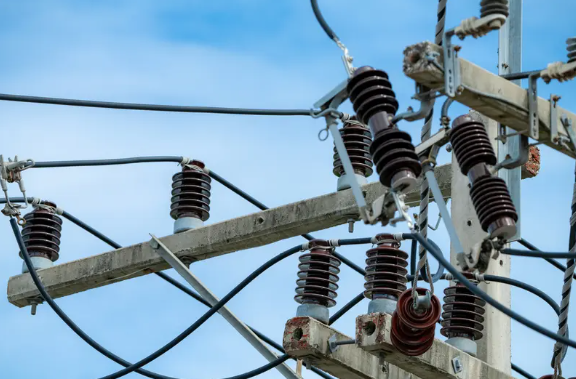

Drop-out fuse cutouts have served as the workhorses of overhead distribution networks for nearly a century, providing reliable overcurrent protection at remarkably low cost. Their simple design—a fuse tube that drops away from its contacts under fault conditions—has proven itself across millions of installations worldwide. Yet in the era of smart grids, distributed energy resources (DERs), and rising expectations for supply reliability, these venerable devices have become a conspicuous blind spot.
When a traditional fuse operates, utility control centers have no immediate way of knowing. Crews must patrol miles of line to locate the fault, extending outage durations from minutes to hours. The device cannot communicate, cannot report its status, and offers no visibility into the conditions leading up to failure. This paper presents a comprehensive intelligent retrofit solution that achieves information fusion between drop-out fuse cutouts and distribution automation terminals (DTUs), transforming passive protection devices into active, connected grid-edge intelligence nodes.
The core of the intelligent retrofit lies in the primary-secondary fusion architecture—a design philosophy that integrates sensing, communication, and control functions directly into the primary equipment without compromising its protective role. Unlike traditional approaches that treat protection and monitoring as separate functions, primary-secondary fusion embeds intelligence at the device level.
Sensor Layer: High-precision voltage and current sensors—typically capacitive or resistive dividers—are integrated into the fuse holder or mounting base, achieving metering accuracy comparable to Class 0.5S instrument transformers. Temperature sensors monitor contact and component thermal rise, while accelerometers or position sensors detect fuse tube drop-out events. Some implementations achieve current collection accuracy of 0.5% through optimized magnetic core materials and precision sampling circuits.
Edge Processing Layer: Embedded microprocessors perform real-time data acquisition, digital signal processing, and fault classification. By analyzing current slew rates alongside mechanical displacement data, the device can distinguish between transient events and permanent faults requiring lockout. Gradient boosting decision tree models trained on historical fault data can achieve fault recognition accuracy exceeding 98%. This capability directly addresses the 70–80% of outages caused by transient faults, allowing smart devices to ride through temporary disturbances while preserving protective elements for genuine permanent faults.
Communication Layer: Integrated wireless modules—supporting NB-IoT, LoRa, 4G/LTE, and in some cases Wi-Fi—transmit operational data to cloud platforms or SCADA systems in real time. Communication technologies involve deliberate trade-offs: LoRaWAN offers long range and ultra-low power consumption for sparse rural networks, while 4G/LTE provides higher bandwidth for data-intensive urban deployments.
The intelligent drop-out fuse does not operate in isolation. Its true value emerges through seamless integration with distribution automation terminals and the broader distribution management system (DMS).
Data Streaming and Telemetry: The smart fuse continuously streams critical parameters—line current, contact temperature, and operational status—to the DTU or directly to the DMS. Telemetry from the fuse populates the distribution management system, enabling real-time digital oversight of previously invisible edge devices.
Fault Location and Isolation: When a fault occurs, the smart fuse sends an immediate alarm with precise GPS coordinates to the control center, eliminating the need for visual patrols. The DTU processes this information alongside data from other intelligent devices (reclosers, sectionalizers, and fault indicators) to perform rapid fault location, isolation, and service restoration.
Predictive Maintenance: Historical operational data enables predictive analytics. Utilities can assess device health, predict failures before they occur, optimize replacement schedules, and improve overall asset management.
The intelligent retrofit can be implemented through either new device deployment or field upgrade of existing installations.
Greenfield Deployment: New intelligent drop-out fuse cutouts are manufactured with fully integrated sensing, edge processing, and communication modules. Physical dimensions and installation methods remain compatible with conventional cutout mounts, requiring no additional crew training.
Retrofit Upgrade: For existing installations, add-on monitoring modules can be attached to conventional fuse cutouts. These modules incorporate sensors, energy harvesting circuits (drawing power from the line through current transformers), and wireless communication capabilities.
Power Supply: Self-powered operation is critical for distribution environments where auxiliary power may be unavailable. Energy harvesting from the network current, supplemented by supercapacitors or small batteries, ensures continuous monitoring even during low-load conditions.
Communication Protocols: Interoperability with existing distribution automation infrastructure requires adherence to standardized protocols. IEC 61850, originally conceived for substation automation, is being extended to distribution automation applications, providing a standardized approach for communication between protection devices and control systems.
The intelligent retrofit approach has been validated through field deployments. In Zhejiang Province, China, the first pole-mounted intelligent drop-out fuse was energized on a rural distribution spur line in 2022. The device integrates overload, short-circuit, high-temperature alarms with wireless data transmission capabilities. It provides 24/7 monitoring of current values, temperature readings, and drop-out status, delivering real-time equipment operational information to the smart grid.
The deployment demonstrated tangible benefits: pre-fault early warning, rapid fault localization, post-event root-cause analytics, and full-lifecycle data-driven asset management. Telemetry from the fuse now populates the DMS, providing a replicable blueprint for pragmatic, cost-effective distribution automation.
The evolution of intelligent drop-out fuse cutouts continues along several trajectories:
Digital Twins: Digital replicas of smart fuses will enable virtual testing, performance optimization, and lifecycle management under varying fault scenarios.
Artificial Intelligence: Machine learning algorithms will analyze operational data to detect evolving faults, predict remaining useful life, and optimize coordination with other protection devices.
Self-Healing Grids: As intelligent fuses coordinate with reclosers and sectionalizers, distribution networks will achieve greater degrees of self-healing—automatically isolating faults and restoring service to minimize impacted customers.
The intelligent retrofit of drop-out fuse cutouts through information fusion with distribution automation terminals represents a paradigm shift from passive protection to active intelligence. By embedding sensing, edge computing, and wireless communication into these ubiquitous devices, utilities can eliminate the last blind spot in distribution networks. The primary-secondary fusion architecture delivers real-time visibility, rapid fault localization, predictive maintenance capabilities, and seamless integration with existing automation infrastructure—all while preserving the cost-effectiveness and reliability that have made drop-out fuses indispensable for over a century. As distribution grids evolve to accommodate distributed energy resources and rising reliability expectations, intelligent drop-out fuse cutouts will play an increasingly critical role as grid-edge intelligence nodes.
