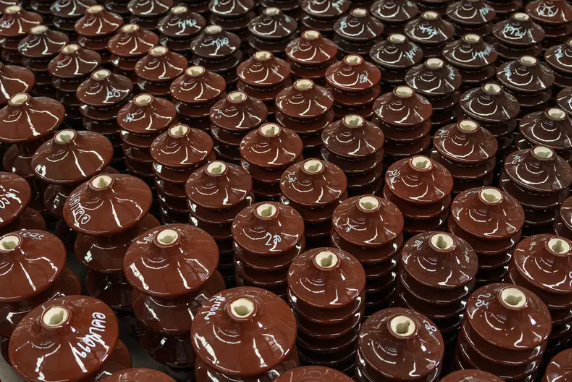

The enduring popularity of ceramic insulators in electrical networks stems from their excellent mechanical strength, high electrical resistance, and proven long-term stability. However, operating in harsh outdoor environments subjects them to a complex interplay of electrical, thermal, mechanical, and chemical stresses. Over time, these factors induce aging, which can manifest as a loss of hydrophobicity, surface cracking, reduced flashover voltage, and ultimately, insulator failure. Two of the most pervasive and synergistic aging factors are ultraviolet radiation and pollution accumulation. Understanding these mechanisms is the first step toward developing effective mitigation strategies, among which advanced coatings have emerged as a highly promising solution.
Aging is a gradual, irreversible process that deteriorates the insulator's surface and bulk properties. Key mechanisms include:
· Thermal and Electrical Stress: Cyclic heating from joule losses, partial discharges, and leakage current, coupled with ambient temperature fluctuations, induces mechanical stress. This can lead to micro-cracking, especially in the glaze, providing pathways for moisture and contaminant ingress.
· Ultraviolet (UV) Radiation Degradation: Prolonged exposure to solar UV (290-400 nm) is a primary surface-level aging factor. UV radiation possesses sufficient energy to break chemical bonds in organic materials and affect the superficial structure of the ceramic glaze. While the ceramic body itself is highly UV-resistant, the glaze and, more critically, any silicone-based housing or composite hardware attached can degrade. UV attack can:
· Cause photo-oxidation, leading to chalking, surface roughness, and loss of gloss.
· Break down hydrophobic transfer layers on polluted surfaces.
· Synergistically accelerate damage when combined with thermal cycling and moisture.
· Pollution Flashover: This is a leading cause of insulator-related outages. Airborne contaminants (salt, dust, industrial particulates) deposit on the insulator surface. Under damp conditions (fog, dew, light rain), these pollutants dissolve to form a conductive electrolyte film. This drastically reduces the surface resistance, leading to increased leakage current, dry band arcing, localized heating, and potentially a complete flashover across the insulator string. The process is self-accelerating, as arcing causes further surface damage and heating.
To combat these specific aging mechanisms, surface modification via coatings has become a focal point of research and development. Modern coatings are engineered not just as barriers but as active, multi-functional layers.
These coatings are formulated to absorb or reflect harmful UV radiation,protecting the underlying substrate. Key technologies include:
· UV Absorbers and Stabilizers: Incorporation of inorganic nanoparticles like zinc oxide (ZnO) or cerium oxide (CeO₂). These materials absorb high-energy UV photons and dissipate the energy as harmless heat, preventing it from reaching the insulator surface. They are often dispersed in a durable, weather-resistant polymer matrix such as fluoropolymers or modified silicone resins.
· Nano-Titania (TiO₂) Coatings: Certain crystalline phases of TiO₂ provide excellent UV reflection and stability. When combined with photocatalytic properties, they can also aid in the decomposition of organic pollutants.
· Multi-Layer Design: Advanced coating systems may employ a base layer for adhesion and corrosion resistance, a middle layer with high UV-absorbing load, and a top layer providing hydrophobicity and erosion resistance.
The primary goal here is to prevent the formation of a continuous conductive water film.This is achieved through superhydrophobicity or hydrophobicity transfer.
· Room Temperature Vulcanizing (RTV) Silicone Rubber Coatings: The industry benchmark for anti-pollution coatings. Their low surface energy causes water to bead up (high contact angle). More importantly, they possess hydrophobicity transfer – low-molecular-weight (LMW) silicone chains within the coating migrate to cover the pollution layer, rendering even a dirty surface hydrophobic. This drastically suppresses leakage current.
· Fluoropolymer Coatings (e.g., PTFE, PVDF): Offer exceptional chemical inertness, low surface energy, and excellent anti-sticking properties, making it difficult for pollutants to adhere firmly. They are often used in severely contaminated or coastal environments.
· Superhydrophobic Nano-Composite Coatings: Inspired by the "lotus effect," these coatings combine a low-surface-energy material (e.g., fluorosilane) with a hierarchical nano/micro-scale surface roughness. This creates a composite air-solid interface, causing water droplets to roll off easily, carrying away surface contaminants—a property known as self-cleaning. These coatings show great promise but require enhanced mechanical durability for long-term field application.
The most effective modern coatings are designed to be multi-functional. An ideal coating system for ceramic insulators in a coastal, high-UV environment would combine UV-absorbing nanoparticles within a robust RTV silicone matrix. This provides simultaneous UV protection, sustained hydrophobicity, and pollution resistance.
· Surface Preparation: Thorough cleaning and possible roughening of the ceramic surface are essential for strong, durable coating adhesion.
· Coating Durability: The coating must withstand electrical arcing, erosion from wind-driven particles, thermal cycling, and chemical exposure without cracking or delaminating.
· Compatibility: The coating must be compatible with existing composite hardware and other materials in the insulator assembly.
· Life-Cycle Assessment: While adding cost, a high-performance coating must demonstrably extend maintenance intervals and prevent failures, providing a clear return on investment.
The aging of ceramic insulators under UV radiation and pollution is a well-understood but continuously evolving challenge. Passive ceramic surfaces can be actively protected and enhanced through the application of advanced functional coatings. The convergence of materials science—particularly in nanotechnology and polymer chemistry—is driving the development of smarter, more durable, and multi-purpose coating solutions. Research continues toward optimizing cost, application methods (spray, dip), and longevity. The adoption of these coating technologies represents a strategic approach to asset management, significantly improving the reliability, safety, and operational efficiency of modern power grids facing increasingly demanding environmental conditions.
