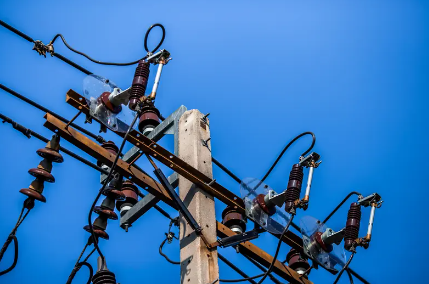

1. Insulator Types and Structural Designs

1.1 Suspension Insulators

· Cap-and-Pin Design: Most common for high-voltage applications

· Ball-and-Socket Connection: Allows flexible string arrangement

· String Configuration: Multiple units connected in series based on voltage rating

· Advantages: Easy replacement, adaptability to line direction changes

1.2 Tension Insulators

· Enhnced Mechanical Design: Withstands longitudinal conductor loads

· Application: Dead-ends, angle positions, and river crossings

· Materials: Typically porcelain or composite with reinforced connections

1.3 Strain Insulators

· Heavy-Duty Construction: For extreme mechanical stress locations

· Multiple Strings: Often used in parallel for extra security

1.4 Post Insulators

· Vertical/Horizontal Mounting: Substation and line applications

· Solid Core Design: Porcelain or composite with weathersheds

2. Material Technologies

2.1 Porcelain Insulators

· Composition: Aluminum silicate materials with quartz and feldspar

· Manufacturing: Wet-process or dry-process with glazing

· Advantages:

 · Excellent weathering resistance

 · High compressive strength

 · Proven long-term performance

· Limitations:

 · Brittle nature (impact vulnerability)

 · Heavy weight

 · Cement growth issues in humid environments

2.2 Glass Insulators

· Tempered Glass: Thermally treated for mechanical strength

· Self-Shattering: Failure mode provides visual indication

 · Advantage: Easy fault detection during inspection

 · Disadvantage: Vandalism susceptibility

· Surface Characteristics: Hydrophobic when clean, but pollution accumulation affects performance

2.3 Composite (Polymer) Insulators

· Core Material: Fiberglass reinforced epoxy rod

· Weathersheds: Silicone rubber, EPDM, or hybrid materials

· End Fittings: Galvanized steel or aluminum with crimped/threaded connections

· Advantages:

 · Lightweight (approximately 90% lighter than porcelain)

 · Superior pollution performance (hydrophobicity)

 · Vandalism resistance

 · Reduced maintenance requirements

· Challenges:

 · Aging from UV exposure

 · Brittle fracture risk

 · Bird damage susceptibility

3. Key Performance Parameters

3.1 Electrical Characteristics

· Dry Flashover Voltage: Typically 2.5-3 times rated voltage

· Wet Flashover Voltage: 1.5-2 times rated voltage

· Impulse Withstand: Standard lightning impulse 550-650 kV for 230kV lines

· Critical Parameters:

 · Creepage distance: 25-35 mm/kV depending on pollution severity

 · Arcing distance: Clearance through air between electrodes

 · Unified Specific Creepage Distance (USCD): Standardized pollution performance metric

3.2 Mechanical Properties

· Rated Mechanical Load (RML): 70 kN typical for transmission lines

· Ultimate Failure Load: Minimum 2.5 times RML

· Cantilever Strength: Critical for post insulators

3.3 Environmental Performance

· Pollution Classifications:

 · Light (Class I): <0.06 mg/cm²

 · Heavy (Class IV): >0.6 mg/cm²

· Temperature Range: Typically -40°C to +40°C operational

· UV Resistance: Critical for polymer materials

4. Failure Modes and Root Causes

4.1 Electrical Failures

· Flashover Events:

 · Pollution-induced flashover (most common)

 · Wetting conditions combined with contamination

 · Lightning strikes causing temporary flashover

· Puncture Failures:

 · Internal defects in porcelain/glass

 · Water ingress in composite insulators

 · Manufacturing defects

4.2 Mechanical Failures

· Crack Propagation: In porcelain due to thermal/mechanical stress

· Brittle Fracture: In composite insulators from acid attack

· Corrosion: Of end fittings in aggressive environments

· Vandalism: Gunshot damage to glass/porcelain units

4.3 Material Degradation

· Polymer Aging: Loss of hydrophobicity, chalking, cracking

· Cement Growth: In porcelain insulators causing internal stress

· Metal Corrosion: Hardware deterioration reducing mechanical strength

5. Advanced Monitoring and Diagnostic Techniques

5.1 Visual Inspection Methods

· Digital Imaging: High-resolution cameras for remote assessment

· UV Detection: Corona discharge monitoring

· Infrared Thermography: Hotspot detection on energized lines

5.2 Electrical Monitoring

· Leakage Current Measurement: Online monitoring systems

· Partial Discharge Detection: Acoustic and RF methods

· Impulse Counters: Lightning strike recording

5.3 Pollution Monitoring

· ESDD/NSDD Measurement: Equivalent Salt Deposit Density

· Surface Conductivity Testing: Direct pollution severity assessment

· Environmental Sensors: Correlation with weather conditions

6. Prevention and Maintenance Strategies

6.1 Design Considerations

· Adequate Creepage: Selection based on local pollution maps

· Proper Material Selection: Environment-appropriate choices

· Bird Protection: Installation of deterrent devices

· Corrosion Protection: Hot-dip galvanizing or stainless steel hardware

6.2 Maintenance Practices

· Regular Cleaning:

 · Hand cleaning for accessible locations

 · High-pressure water washing (14-70 MPa)

 · Abrasive cleaning with caution to avoid damage

· Greasing Application: Silicone-based coatings for pollution control

· RTV Coating: Room Temperature Vulcanizing silicone for enhanced performance

6.3 Replacement Strategies

· Condition-Based Replacement: Using diagnostic data

· Age-Based Replacement: Proactive replacement of aged units

· Emergency Replacement: Following flashover events or visible damage

6.4 Emerging Technologies

· Superhydrophobic Coatings: Self-cleaning surface treatments

· Ice-Phobic Materials: Reduced ice accumulation

· Smart Insulators: Embedded sensors for real-time monitoring

· Self-Healing Polymers: Automatic recovery of surface properties

7. Industry Standards and Testing

7.1 Key International Standards

· IEC 60383: Tests on insulators for overhead lines

· IEC 61109: Composite insulators for AC overhead lines

· IEC 60507: Artificial pollution tests

· ANSI C29: American National Standards

· GB/T 1001: Chinese national standards

7.2 Critical Laboratory Tests

· Mechanical Load Tests: Routine, sample, and proof tests

· Electrical Tests: Dry/wet power frequency, impulse withstand

· Environmental Tests: Salt fog, multi-stress aging

· Material Tests: FTIR analysis, hardness measurement, tensile tests

8. Future Trends and Developments

8.1 Material Innovations

· Nanocomposite Materials: Enhanced tracking/erosion resistance

· Bio-Based Polymers: Sustainable material alternatives

· Graphene Coatings: Superior electrical and thermal properties

8.2 Digital Integration

· IoT Sensors: Embedded monitoring capabilities

· Machine Learning: Predictive failure analysis from historical data

· Digital Twins: Virtual modeling for performance prediction

8.3 Sustainability Focus

· Recyclable Materials: End-of-life management considerations

· Life Extension Technologies: Repair instead of replacement

· Reduced Carbon Footprint: Manufacturing process improvements

Conclusion

Transmission line insulator technology represents a critical intersection of materials science, electrical engineering, and environmental adaptation. The industry continues to evolve from traditional porcelain designs toward advanced composite materials with integrated monitoring capabilities. Successful insulator management requires a comprehensive approach encompassing proper selection based on local conditions, regular diagnostic assessment, and proactive maintenance. As grid demands increase and environmental challenges intensify, continued innovation in insulator technology will remain essential for power system reliability worldwide.
