Insulators are the unsung heroes of the electrical grid. Their primary function is simple yet critical: to mechanically support electrical conductors while preventing unwanted current flow to the ground. For over a century, this role was faithfully served by ceramic materials—porcelain and glass. However, the evolving demands of modern power distribution, including harsh environments, rising maintenance costs, and the integration of renewable energy, have exposed the limitations of these classic materials. Enter composite insulators—a technology that is not just competing but is decisively dominating the future market landscape.
To understand the rise of composites, one must first appreciate the challenges associated with traditional options:
· Porcelain: Brittle and heavy, porcelain insulators are susceptible to damage during transport, installation, and from vandalism. Their catastrophic failure mode can lead to dropped lines, creating safety hazards and outages.
· Glass: While offering excellent dielectric strength and a "self-cleaning" shattering behavior, glass shares the weight and brittleness disadvantages of porcelain. Furthermore, its performance can be compromised by cement growth in the fittings under humid conditions.
Both materials require extensive manual labor for installation due to their weight, increasing installation time and cost.

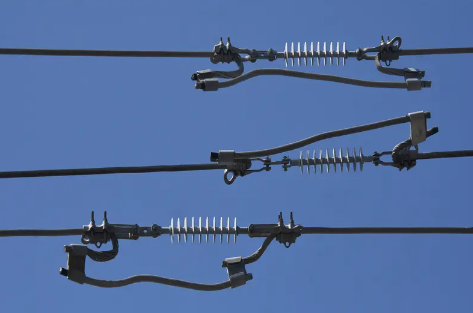

Composite insulators, also known as polymer or silicone rubber insulators, are a sophisticated multi-component system. Their design is a triumph of material engineering:
· Core: The heart of the insulator is a filament-wound glass fiber reinforced epoxy resin (FRP) rod. This core provides exceptional tensile strength, superior to that of steel, while acting as the primary dielectric barrier.
· Weathersheds: The core is protected and insulated by sheds made from ethylene propylene diene monomer (EPDM) or, more commonly, high-performance silicone rubber (HTV). These sheds are not just for creepage distance; they are functional components.
· End Fittings: Metal fittings (typically galvanized steel or ductile iron) are attached to the core using a controlled compression process, providing the interface for attachment to towers and conductors.
The composite design confers a host of technical and economic benefits that are directly aligned with current grid trends:
· Superior Hydrophobicity and Pollution Performance: This is the single most significant advantage. Silicone rubber sheds are inherently hydrophobic (water-repellent). Instead of forming a continuous conductive film, water beads up and rolls off. This property, which is also transferable to pollutants that settle on the surface, dramatically reduces the risk of flashover in contaminated or coastal environments. Traditional ceramics are hydrophilic, requiring larger dimensions or frequent cleaning to achieve the same performance.
· Lightweight and High Mechanical Strength: Composite insulators can weigh up to 90% less than their porcelain equivalents of equivalent rating. This drastically reduces installation costs, allows for longer spans, enables easier handling by smaller crews, and simplifies logistics. Their high strength-to-weight ratio makes them ideal for areas prone to seismic activity.
· Enhanced Resilience and Vandal Resistance: The flexible, non-brittle nature of composites makes them highly resistant to shock, impact, and vandalism. They do not suffer from catastrophic failures; instead, they typically fail in a more predictable, non-violent manner.
· Lifecycle Cost Efficiency: While the initial purchase price may be comparable, the total cost of ownership (TCO) of composite insulators is significantly lower. Reduced installation costs, near-zero maintenance (no cleaning required in most cases), and exceptional longevity (30+ years) deliver substantial financial benefits over their lifespan.
Several macro-trends in the power sector are accelerating the adoption of composite insulators:
· Grid Modernization and Resilience: Utilities worldwide are investing in stronger, smarter grids. Composites offer a modern solution that improves system reliability and reduces outage times.
· Expansion into Harsh and Remote Environments: The push for renewable energy means building infrastructure in demanding locations—offshore wind farms, coastal areas, deserts, and heavily polluted industrial zones. Composite insulators are the default choice for these applications due to their pollution performance.
· Labor and Cost Pressuties: The utility industry faces a skilled labor shortage and constant pressure to reduce operational expenditures (OPEX). The lightweight and low-maintenance characteristics of composites directly address these pain points.
The future of composite insulators is one of continuous refinement. Research is focused on:
· Advanced Material Formulations: Developing new nano-filled silicone rubbers with enhanced tracking and erosion resistance, improved UV stability, and even greater hydrophobicity retention.
· Smart Grid Integration: Embedding optical fibers or RFID tags within the core to create "smart insulators" capable of monitoring mechanical load, temperature, and pollution levels in real-time.
· Sustainability: Improving the recyclability of end-of-life polymer insulators is an area of active development to further enhance their environmental credentials.
The trajectory of the global distribution insulator market is clear. The superior technical performance, compelling economic benefits, and alignment with global grid modernization efforts make composite insulators the dominant technology for the future. While traditional ceramics will retain certain niche applications, the core of the grid—especially in new and challenging environments—will be built upon the robust, lightweight, and intelligent platform provided by composite materials. For utilities, engineers, and investors, understanding and adopting this technology is not merely an option; it is a strategic imperative for building a reliable, efficient, and future-proof electrical distribution network.
