In the vast network of overhead transmission lines, insulators are the unsung heroes performing a silent yet vital duty. They are engineered components designed to withstand electrical, mechanical, and environmental stresses simultaneously. Their primary mandate is to prevent the flow of unwanted current from the energized conductor to the grounded tower structure, thereby ensuring system integrity, public safety, and uninterrupted electricity supply. Understanding their function, underlying principles, and material evolution is key to appreciating the complexities of modern power transmission.
Insulators fulfill three primary, interlinked functions:
· Electrical Insulation: This is the core function. Insulators provide a high-resistance path, effectively blocking the flow of leakage current from the high-voltage conductor to the grounded tower (earth potential). The material and design must offer extremely high dielectric strength to prevent electrical breakdown, especially under all weather conditions.
· Mechanical Support: Insulators must bear significant mechanical loads. These include the static weight of the conductors themselves, dynamic wind-induced tensions, and in some regions, ice accumulation. They act as robust structural links, suspending or supporting conductors while maintaining a safe clearance from the tower.
· Environmental Barrier: Operating outdoors 24/7, insulators are exposed to pollution, moisture (rain, fog, dew), UV radiation, and temperature extremes. Their design—particularly the creepage distance (the path along the surface between conductor and tower)—must mitigate the risk of surface flashover, a phenomenon where contamination and moisture create a conductive path, leading to a short circuit.
The performance of an insulator is governed by several key principles:
· Dielectric Strength: This is the maximum electric field strength a material can withstand intrinsically without experiencing electrical breakdown. Insulator materials (porcelain, glass, polymer) are chosen for their inherently high dielectric strength, which far exceeds the operating voltage stress.
· Creepage Distance and Leakage Current: To combat pollution, the insulator's surface is shaped into sheds or ribs. This increases the creepage distance—the tortuous path along the insulator surface between the energized end and the grounded end. A longer creepage distance makes it harder for conductive pollutants to form a complete bridge, thereby suppressing leakage current.
· Mechanical Load-Bearing Capacity: Every insulator is rated for a specific mechanical failing load (e.g., 70 kN, 120 kN, 160 kN). This specifies the tensile or compressive load it can withstand before mechanical failure. A significant safety factor is applied between the rated strength and the maximum expected working load.
· Wettability and Hydrophobicity: Surface properties are critical. Ceramic and glass are hydrophilic; water forms a continuous film. While their long creepage distance manages this, pollution can worsen performance. Composite (Polymer) insulators exhibit hydrophobicity; their silicone rubber sheds cause water to bead up, preventing a continuous conductive film and significantly improving pollution performance.
Insulators are classified primarily by material and construction.
A traditional and widely used type, made from clay, quartz, or alumina.
· Suspension (Disc) Type: Multiple bell-shaped discs connected in a string. Used to suspend the conductor from the tower. The voltage rating is increased by adding more discs. Advantage: Easy replacement of damaged discs.
· Pin Type: A single, stout insulator mounted on a pin on the cross-arm, with the conductor tied in the top groove. Typically used for lower voltage lines and distribution.
· Post Type: A solid, cylindrical insulator used as a rigid structural support in substations and for line angles or terminations, handling both compression and bending loads.
Tempered glass units, historically common and now seeing renewed interest.
· Key Feature: They are inherently transparent, allowing for easy visual inspection for cracks or internal damage. Any puncture failure causes the toughened glass to shatter completely ("shattering"), providing a clear visual fault indicator.
· Application: Primarily used in suspension disc strings, similar to porcelain discs.

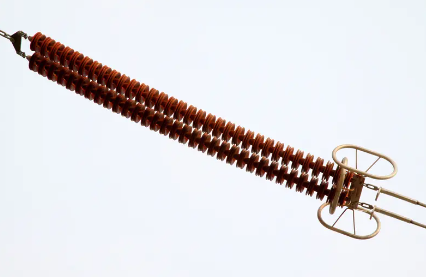

Modern insulators consisting of a core, housing, and end fittings.
· Core: Made of fiberglass reinforced plastic (FRP), providing exceptional tensile strength.
· Housing & Sheds: Made of silicone rubber (SiR) or ethylene propylene diene monomer (EPDM). Silicone rubber offers superior hydrophobicity and pollution resistance.
· Advantages: Lightweight (easier installation, less tower stress), excellent pollution performance, high impact strength, and hydrophobic surface. They are increasingly the choice for new lines, especially in polluted or coastal areas.
· Types: Available in suspension, line post, and braced line post configurations.
Insulators are sophisticated components whose design encapsulates a balance of electrical, mechanical, and material science. From the traditional porcelain and glass to the advanced polymer composites, the evolution of insulator technology has been driven by the need for higher reliability, lower maintenance, and adaptation to challenging environments. The choice of insulator type for a specific application depends on a detailed analysis of voltage level, pollution severity, mechanical loads, and lifecycle cost. As transmission systems evolve with higher voltages and smarter grid requirements, insulators will continue to be a focal point of innovation, with developments in monitoring (sensor-equipped "smart" insulators) and advanced materials leading the way.
