Outdoor disconnect switches are critical assets in transmission and distribution networks, providing visible isolation points for maintenance and emergency switching. However, their outdoor exposure makes them vulnerable to environmental degradation. Rain, snow, corrosive gases, and temperature cycling cause progressive corrosion of transmission mechanism bearings, pivot walls, and linkage components. When corrosion advances to the point of mechanical seizing, the switch fails to operate—often forcing extensive outages that disrupt system reliability and impose significant economic costs.
The two most common failure points are:
(1) seized or stiff transmission mechanisms caused by rust and degraded lubricant
(2) moisture ingress into operating mechanism boxes that corrodes control circuits, limit switches, and motor drives.
Most outdoor disconnect switches employ horizontal-break designs with rotating shafts, bearings, and pivot points that require periodic lubrication. Over years of service without attention, the original grease hardens into a wax-like substance. Bearings rust, shafts seize, and operating torque escalates dramatically. In severe cases, operators resort to cheater bars, which can twist shafts and misalign contacts—creating far more serious problems than the original sticking condition.
Field evidence from coastal and industrial environments is particularly telling: salt-laden air accelerates metal corrosion, while sulfurous atmospheres attack both ferrous components and silver-plated contacts.

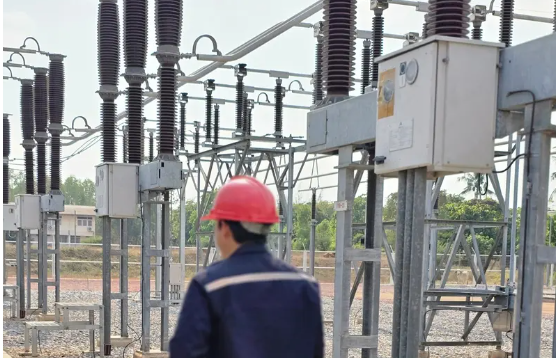

Operating mechanism boxes—whether manual or motor-operated—face persistent moisture challenges. The interface between the box and the output linkage rod is a common vulnerability; sealing gaskets age, crack, and lose effectiveness. Once moisture enters, terminals corrode, limit switches fail, motor circuits become unreliable, and the entire control system degrades. In humid tropical and coastal regions, this problem is particularly acute.
The upper portions of disconnect switch structures are constrained by high-voltage safe clearances. When equipment remains energized, rotating components cannot be lubricated at close range. Traditional practice has required de-energization and outage scheduling—a costly and operationally disruptive approach. Long-distance lubrication via insulated rods has been attempted, but often suffers from imprecise positioning and inadequate lubricant delivery.
Recent advances in non-conductive, non-flammable maintenance fluids now enable safe energized intervention. A field-proven three-step process has emerged as best practice:
Step 1 – Corrosion Dissolution (1FR): Apply a penetrating fluid specifically formulated to dissolve corrosion products and free seized or restricted switch components. This fluid penetrates rusted bearing interfaces and breaks the oxide bonds that lock moving parts.
Step 2 – Contaminant Removal (2NP): Following corrosion dissolution, a cleaning agent removes old grease residues, dissolved corrosion particles, and accumulated contaminants from the mechanism. This step is critical—applying fresh lubricant over contaminated surfaces merely traps debris and accelerates future wear.
Step 3 – Long-Term Lubrication (3PAO): Finally, apply a long-lasting polyalphaolefin (PAO)-based lubricant that ensures smooth operation and reduces future wear. PAO lubricants offer superior thermal stability, oxidation resistance, and extended service intervals compared to conventional greases.
All three steps can be performed while equipment remains energized, minimizing outage requirements. The fluids are non-conductive and non-flammable, preserving crew safety while improving switch reliability and extending asset life.
For applications requiring more precise lubricant placement, specialized live oiling tools have been developed. These tools feature a base-mounted rotating plate with sliding adjustment mechanisms, enabling operators to position the lubricant delivery nozzle accurately while maintaining safe working distances from energized parts. Such tools are particularly valuable for busbar-side disconnectors where access is restricted and close-range lubrication is impossible.
Not all lubricants are suitable for disconnect switch applications. Key selection criteria include:
· Dielectric strength: Lubricant must not compromise insulation integrity.
· Corrosion inhibition: Effective long-term protection requires proper product qualification for specific contact materials and environmental variables.
· Temperature stability: The lubricant must perform across the full ambient temperature range.
· Non-conductivity: Essential for energized applications where lubricant may contact live parts.
Recommended lubricants include lithium-based greases for general applications, molybdenum disulfide lithium greases for high-load bearing points, and specialized compounds such as NO-OX-ID for contact applications. For severe coastal environments, copper-infused greases that actively break down oxides and galvanic corrosion offer additional protection.
Moisture ingress into mechanism boxes stems from three primary sources:
1. Poor drainage: Water accumulates inside the box when drainage paths are absent or blocked.
2. Moisture convection: Temperature differentials between the box interior and ambient air draw moist air through imperfect seals.
3. Compromised box sealing: Aged gaskets, cracked seal rings at linkage penetrations, and inadequate door seals allow direct moisture entry.
A. Seal Replacement and Upgrade
All aged or cracked seals must be replaced. For door seals, silicone O-ring gaskets offer superior weather resistance and long-term elasticity compared to conventional rubber. For linkage rod penetrations through the box top cover, replace aged sealing rings with high-durability elastomeric seals designed for outdoor service.
B. Rain Shield Installation for Output Linkages
A particularly effective retrofit involves installing an arc-shaped rain shield over the linkage rod penetration point. The shield features a central connecting sleeve that seals onto the linkage rod, with an outward-extending curved cover that deflects rainwater away from the box entry point. The connecting sleeve can be heat-shrink sealed using rubber-plastic composite materials, ensuring a watertight barrier.
C. Cable Entry Sealing
All cable entry points into the mechanism box must be properly sealed. After cables are inserted, any remaining gaps must be filled with fire-retardant sealant, leaving no vents. Modern cable sealing grommets made from TPE materials offer excellent resistance against weather, UV exposure, ozone, and water.
D. Internal Humidity Control
For severe environments—particularly coastal and tropical locations—active humidity control is recommended. Installing a small internal heating element keeps surface temperatures consistently above the ambient dew point, preventing condensation. In extreme cases, integrating a dehumidification system provides additional protection.
E. Box Design Improvements
For older mechanism boxes with fundamental design flaws, consider:
· Installing a double-door configuration with an inner sealing door and outer weather door.
· Adding a unidirectional breather valve to equalize pressure while preventing moisture ingress.
· Upgrading to IP65 or NEMA 3R rated enclosures that provide complete dust-tightness and resistance to water jets.
A systematic retrofit should proceed as follows:
1. De-energize and isolate the mechanism box (observe all LOTO protocols).
2. Open the box and document existing conditions—photograph corrosion, failed seals, and moisture.
3. Remove all corroded terminals, limit switches, and control components showing damage.
4. Clean the box interior thoroughly; address any rust on the enclosure itself.
5. Replace all door seals and linkage penetration seals with upgraded materials.
6. Install rain shield on the output linkage rod.
7. Seal all cable entries with appropriate grommets or fire-retardant sealant.
8. Install internal heating element or dehumidifier as warranted by site conditions.
9. Replace damaged electrical components with new, corrosion-resistant equivalents.
10. Close and test the box for seal integrity before re-energization.
Treatment and retrofit are only half the solution—sustained reliability requires a preventive maintenance program:
· Annual exercise: Open and close each disconnect switch several times per year to keep mechanisms moving and verify smooth operation.
· Semi-annual inspections: Conduct visual and mechanical inspections every 6 to 12 months. Check for corrosion, oxidation on terminals and moving joints, and seal condition.
· Infrared thermography: Annual thermal imaging detects developing hot spots before contacts fail catastrophically.
· Lubrication schedule: Reapply lubricant to bearings and pivot points according to manufacturer recommendations or environmental severity—coastal sites require more frequent attention.
Corrosion-induced seizure of disconnect switch transmission mechanisms and moisture ingress into operating mechanism boxes are among the most pervasive reliability challenges facing outdoor substation equipment. However, both problems are manageable through well-designed technical interventions.
Energized lubrication using non-conductive, non-flammable three-step fluid systems enables maintenance without costly outages, restoring switch operation while extending asset life. Simultaneously, systematic moisture-sealing retrofits—encompassing seal replacement, rain shield installation, cable entry sealing, and active humidity control—dramatically reduce the risk of control circuit failure and mechanism degradation.
When these interventions are embedded within a regular preventive maintenance program, utilities can achieve substantial improvements in switch reliability, reduce unplanned outages, and extend the service life of critical grid assets—all while maintaining crew safety and operational continuity.
