Research on Contact Wear Mechanisms and Electrical Contact Performance Degradation in High-Voltage Disconnect Switches: Based on Fretting Wear, Oxide Film Formation, and Contact Resistance Evolution

1. Introduction: The Contact as the Critical Weak Point

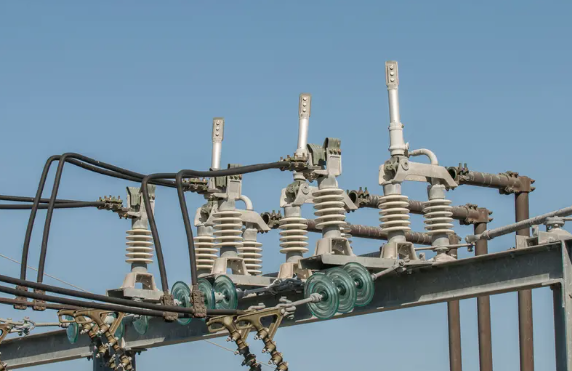

A high-voltage disconnect switch (rated 12 kV to 800 kV) consists of a fixed contact and a moving contact, typically made of copper or aluminum alloys with silver or tin plating. Under normal conditions, the contact resistance is in the micro-ohm range, ensuring negligible power loss. However, field experience shows that contact resistance gradually increases over 5–15 years, often leading to localized overheating (hot spots exceeding 90°C above ambient), arcing, and eventually contact welding or structural failure.

The degradation is not caused by a single mechanism but by a synergistic loop of mechanical fretting, chemical oxidation, and electrical-thermal effects. This paper examines each component and their interactions.

2. Mechanism : Fretting Wear – The Mechanical Driver

Fretting refers to small-amplitude oscillatory motion (typically 10–200 μm) between two contacting surfaces. In disconnect switches, fretting arises from:

· Ambient vibrations: Wind-induced oscillations of the conductor and switch blade.

· Thermal cycling: Daily and seasonal temperature changes cause differential expansion between the contact arm and the fixed terminal.

· Electrodynamic forces: Short-circuit currents produce magnetic forces that cause contacts to micro-vibrate.

Fretting-Induced Damage

At the microscopic level, the repeated tangential motion shears off asperities (surface peaks), producing fine metallic debris. The debris is initially metallic and conductive, but as it oxidizes, it becomes abrasive. This process leads to:

· Surface pitting and grooving: Loss of original contact geometry.

· Third-body abrasion: Hard oxide particles embed into the softer contact material, accelerating wear.

· Increased contact gap: As wear progresses, the effective contact area diminishes.

Fretting wear rate is governed by the fretting frequency, amplitude, normal force, and material hardness. In disconnect switches, the contact force decreases over time due to spring relaxation, which paradoxically worsens fretting (lower force increases relative motion amplitude).

3. Mechanism : Oxide Film Formation – The Chemical Barrier

The second critical mechanism is the growth of insulating oxide layers on the contact surfaces. Both copper and aluminum readily oxidize in air. While a native oxide film (2–10 nm thick) forms within minutes of cleaning, its electrical properties are benign when the film remains thin and intact. The problem arises when fretting continuously breaks the oxide, exposing fresh metal, which re-oxidizes – a destructive cycle.

3.1 Role of Temperature and Current

Oxidation is exponentially accelerated by temperature. According to the Arrhenius law, the oxidation rate doubles for every 10–15°C rise. A contact operating at 80°C will oxidize 4–8 times faster than at 30°C. Furthermore, the passage of current through a constricted contact spot (a-spot) produces local Joule heating that can reach hundreds of degrees Celsius, creating "hot spots" that rapidly grow thick oxide.

3.2 Characteristics of Problematic Oxides

· Copper oxide (CuO, Cu₂O): Semiconducting, with resistivity 10⁵–10⁶ times higher than copper. A 1 μm thick oxide layer can increase contact resistance by several milliohms.

· Aluminum oxide (Al₂O₃): An excellent insulator (resistivity ~10¹⁴ Ω·cm). Even a 10 nm film can completely block current flow unless mechanically ruptured.

4. Mechanism 3: Contact Resistance Evolution – The Accumulated Outcome

Contact resistance (R_c) is given by the Holm model:

R_c = ρ/2 × √(πH/F) + R_f

where ρ is resistivity of the contact material, H is material hardness, F is contact force, and R_f is the resistance of any surface film (oxide or contamination). The equation reveals two competing effects:

1. Mechanical degradation: Fretting reduces the effective contact area (√(πH/F) term increases), and loss of spring force (F decreases) further increases resistance.

2. Film resistance term (R_f): Oxide growth directly adds resistance.

The Degradation Stages

Based on accelerated aging tests and field measurements, contact resistance evolution follows three distinct stages:

Stage Time Scale Typical R_c (μΩ) Typical R_c (μΩ)

Once stage III begins, contact temperature can exceed 200°C, leading to annealing, softening, and eventual melting or welding.

5. Experimental Validation and Modeling

Controlled laboratory studies using a fretting test rig (with controlled displacement amplitude, frequency, normal load, and current) have confirmed the synergy between fretting and oxidation. Key findings:

· Critical displacement amplitude: Below 20 μm, fretting is mild; above 80 μm, wear becomes severe. The most damaging range is 30–60 μm, where debris is generated but not ejected.

· Current effect: A DC or AC current of 100 A through a 100 μΩ contact produces 1 W of local heat, raising contact spot temperature by 10–30°C, which doubles oxidation rate.

· Lubrication benefit: Application of a stable conductive grease (e.g., MoS₂ or silver-filled grease) reduces both fretting wear and oxidation by 60–80% in accelerated tests.

6. Practical Implications for Maintenance and Design

Understanding these mechanisms suggests several countermeasures:

· Maintenance: Periodic contact resistance measurement (using a micro-ohmmeter) every 3–5 years can detect stage III onset well before failure. Thermal infrared inspection under load (≥50% rated current) is also effective.

· Design improvements: Use of silver-plated contacts (silver oxide is conductive), higher initial contact force with Belleville washers to maintain force over life, and sealed or greased contacts to exclude air.

· Material selection: Copper-tungsten or copper-chromium alloys resist fretting and oxidation better than pure copper.

Conclusion

The degradation of high-voltage disconnect switch contacts is not a simple wear process but a complex coupling of fretting mechanics, chemical oxidation, and electrical-thermal feedback. The contact resistance evolution follows a predictable three-stage trajectory, with a critical runaway phase that leads to failure. By implementing regular resistance monitoring, applying appropriate contact lubricants, and specifying advanced contact materials, utilities can extend contact life from 10–15 years to over 25 years, significantly improving grid reliability and reducing unplanned outages.
