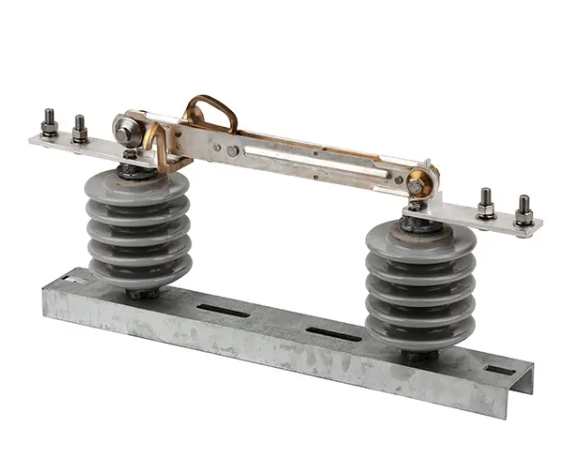

This outdoor distribution-type disconnect switch isolator is designed for 15kV, 27kV and 38kV power distribution systems, supporting a nominal current range from 200A to 630A. The 600A rating is a commonly requested configuration for commercial procurement projects, aligned with typical load requirements of medium-voltage distribution networks. It is used for switching on and off circuits under no-load voltage conditions, to ensure electrical circuits are fully de-energized for scheduled service and maintenance work.
In electrical distribution and substation systems, disconnectors serve as essential safety isolation devices for equipment adjustment and repair procedures. This model supports both manual and motor-operated configurations, and can be paired with earthing switches to ground isolated circuit sections, which enhances safety for both on-site maintenance personnel and connected electrical equipment. High-voltage isolation switches are widely applied in substation facilities to isolate apparatus such as circuit breakers, transformers and transmission lines during planned maintenance or fault handling.
Unlike load switches and circuit breakers, this disconnector does not include a dedicated arc suppression mechanism. It is classified as an off-load device with low breaking capacity, and is intended to be operated only after circuit current has been interrupted by other dedicated control devices. It is not designed for regular circuit control operations, but exclusively for safety isolation to establish a visible zero-energy state for work crews. Built for outdoor installation, the switch fits standard overhead power network layouts, adapting to conventional outdoor distribution operating environments.
Nominal Voltage (kV) | Maximum Voltage (kV) | BIL (kV) | Nominal Current (Amperes) | Transient Current (kA/Is) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) |
13.8 | 15 | 95 | 200/630 | 16 | 305 | 270 | 580 | 186 |
13.8 | 15 | 95 | 630 | 25 | 305 | 313 | 595 | 230 |
13.8 | 15 | 110 | 200/630 | 16 | 381 | 270 | 650 | 186 |
13.8 | 15 | 110 | 630 | 25 | 381 | 313 | 670 | 230 |
24.2 | 27 | 125 | 200/630 | 16 | 381 | 310 | 650 | 228 |
24.2 | 27 | 125 | 630 | 25 | 381 | 340 | 670 | 260 |
34.5 | 38 | 150 | 630 | 25 | 381 | 368 | 670 | 290 |
34.5 | 38 | 170 | 630 | 25 | 381 | 400 | 670 | 316 |
This single-pole disconnect switch isolator fits multiple industrial applications and commercial power operation scenarios. It is primarily installed in outdoor overhead power distribution networks with 15kV to 38kV voltage levels, to provide visible, reliable isolation points for routine line and equipment maintenance.
In substation facilities, the switch enables safe isolation of core electrical equipment including circuit breakers, power transformers and transmission line segments, allowing maintenance teams to perform inspection, component repair and replacement work without residual electrical hazard risks. It also applies to industrial plant internal power distribution systems, commercial building high-voltage rooms and renewable energy power collection stations, where scheduled equipment maintenance requires dependable circuit de-energization.
For power distribution operators and enterprise facility management teams, this disconnector provides a standardized isolation solution that aligns with conventional medium-voltage power system design specifications. It supports both new distribution network construction projects and existing system retrofitting and upgrade work, and can be integrated into existing automation schemes with motor-operated configurations.
Proper installation and routine maintenance are required to ensure stable, long-term performance of the disconnect switch. For installation, the switch should be mounted on support structures matching its listed dimension specifications, and selected to match the corresponding voltage level and BIL insulation requirements of the target system. It is recommended to pair the switch with a compatible earthing switch to establish a complete safety isolation scheme for maintenance operations.
During on-site operation, the switch must only be actuated after the circuit is fully de-energized by upstream circuit breaking devices. Load current interruption with this disconnector is strictly prohibited, to avoid arc-related equipment damage and personnel safety incidents.
For routine maintenance, on-site personnel should regularly inspect the integrity of insulating components, verify the flexibility of the operating mechanism, and check the contact condition of conductive parts. For outdoor installation scenarios, fastener tightness should be checked periodically to adapt to environmental changes such as temperature variation, wind load and precipitation.
This outdoor disconnect switch covers a nominal current range from 200A to 630A. The 600A specification referenced in the product title is a commonly adopted configuration in commercial procurement projects, matching most medium-voltage distribution line load demands. Detailed current ratings corresponding to different voltage and BIL options are listed in the technical specification table for precise selection.
No. This isolator switch is an off-load device without built-in arc suppression structures. It is designed exclusively for safety isolation purposes, and must be operated only after the circuit current has been fully interrupted by other dedicated control devices such as circuit breakers. It is not suitable for normal load current breaking or routine circuit switching operations.
This disconnect switch is compatible with 15kV, 27kV and 38kV outdoor power distribution systems, corresponding to standard nominal system voltages of 13.8kV, 24.2kV and 34.5kV respectively. Multiple BIL level options are available to match different insulation requirement scenarios across regional distribution network standards.
