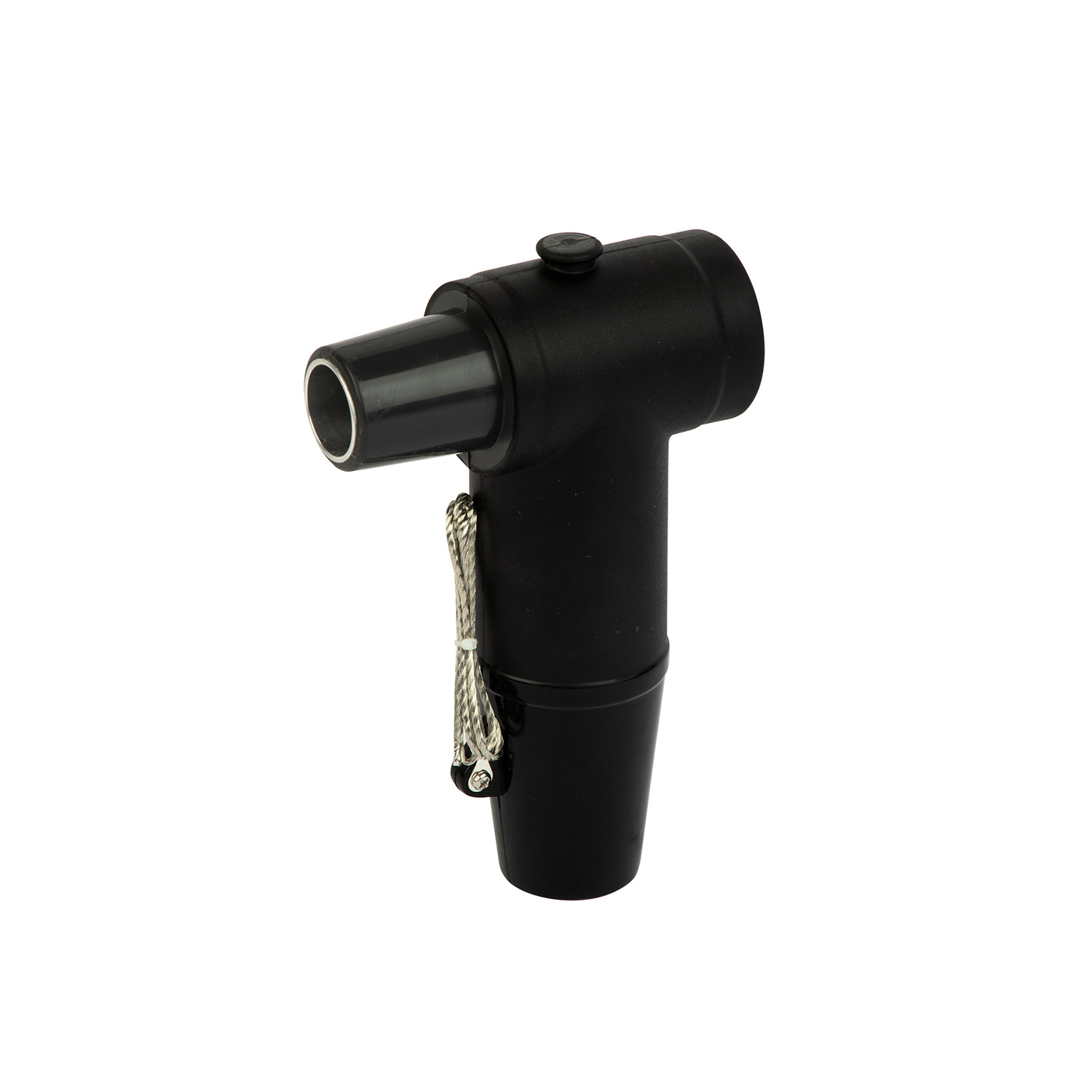

High-voltage separable connectors have become indispensable components in modern power distribution networks, particularly in switchgear, gas-insulated switchgear (GIS), and offshore wind farm applications. These connectors enable flexible connection and disconnection of power cables, facilitating maintenance, system reconfiguration, and fault restoration. However, field experience has revealed that separable connectors constitute one of the weakest links in the insulation chain of power equipment. According to operational statistics, assembly defects remain the leading cause of insulation failures in shielded separable connectors, with a significant proportion resulting in severe events such as complete switchgear burnouts.
This article examines the partial discharge (PD) characteristics of high-voltage separable connectors under repeated plugging and withdrawal operations, a condition that simulates real-world operational cycles including maintenance procedures, system reconfigurations, and emergency repairs. Understanding how repeated mechanical operations affect PD behavior is crucial for developing effective condition monitoring strategies and preventing catastrophic insulation failures.
Partial discharge is a localized electrical discharge that does not completely bridge the insulation between conductors. It represents the leading indicator of insulation deterioration. In high-voltage connectors, when insulating materials are subjected to prolonged exposure to strong electric fields, gaseous ionization occurs within microscopic voids and cavities when the electrical stress exceeds critical thresholds. The energy from discharge activity dissipates as heat, sound, and light, while the accompanying chemical reactions—such as ozone generation—gradually erode the insulating material through irreversible physical and chemical degradation.
Separable connectors employ a heterogeneous insulation system comprising hard dielectrics such as epoxy resin and soft dielectrics such as silicone rubber (SiR) or ethylene propylene diene monomer rubber (EPDM). This material combination ensures good interfacial contact and high electrical performance under normal conditions. However, the interface between dissimilar solid dielectrics becomes the most vulnerable region. When stressed both tangentially and normally to the electric field, these complex polymer interfaces are prone to interfacial tracking and PD activity.
3.1 Mechanical Degradation and Interfacial Pressure
The fundamental challenge posed by repeated plugging and withdrawal lies in the progressive deterioration of interfacial contact conditions. Flexible cable connectors rely on precisely engineered interference fits and contact pressures to maintain insulation integrity. Research has demonstrated a direct correlation between interfacial pressure and surface discharge inception voltage—reduced pressure leads to lower PD inception levels and intensified discharge activity.
When a separable connector undergoes repeated disconnection and reconnection cycles, several mechanisms take effect:
· Elastic relaxation and creep: Silicone rubber and other elastomeric materials exhibit creep and fatigue characteristics over successive deformation cycles. For EPDM used in flexible cable connectors, an optimal elastic recovery of approximately 50% and a permanent deformation below 2% are desirable for maintaining interfacial integrity. Each mating and unmating operation imposes compressive stress and strain on the elastomeric interface, gradually altering its contact force characteristics.
· Particle ingress: Each disconnection exposes the mating surfaces to potential contamination by moisture and foreign particles. The reinsertion process can trap these contaminants at the critical solid-solid interface, creating localized high-field regions and initiating PD sources.
· Surface abrasion: Repeated mechanical contact can progressively abrade the smooth surfaces of the insulating components. Surface roughness has been shown to significantly influence tracking failure mechanisms at polymer interfaces.
3.2 Electric Field Distribution and PD Evolution
From an electromagnetic perspective, the reduction in interfacial contact quality manifests as altered electric field distributions. Finite element analysis of field distribution at pluggable cable terminals has revealed that compression stress and compression strain at the interface directly influence surface discharge behavior. As the interface deteriorates with repeated operations, field enhancement occurs at localized contact irregularities, promoting PD inception at lower applied voltages.
The progressive nature of PD activity under repeated plugging cycles typically follows a pattern: an initial phase characterized by intermittent, low-magnitude discharges; a development phase in which discharge magnitude and repetition rate increase due to ongoing insulation degradation; and an accelerated deterioration phase where electric tree growth leads to rapid PD escalation and eventual breakdown.
A distinctive feature of repeated plugging scenarios is the stress concentration at the connection fitting—the termination of the conductive core. Power-frequency electric fields along the axial direction can produce inhomogeneous distributions that are easily amplified when contact geometry changes due to wear or misalignment.
4.1 Laboratory Detection Techniques
The conventional reference for PD measurement remains the IEC 60270 standard. For separable connector testing, this method serves as the basis for acceptance testing and failure analysis. Studies have demonstrated that comparing PD levels between defective and healthy conditions under standard test procedures provides robust validation of fault analysis.
High-frequency current transformer (HFCT) represents another widely used method, particularly suited for online applications. Comparative studies have identified HFCT as offering the best quantification and detection capability among conventional techniques. The combination of HFCT sensors with capacitive or ohmic sensors enables PD signal detection across different frequency ranges, significantly improving measurement reliability in noisy environments.
Ultra-high frequency (UHF) PD detection has been successfully applied to assess the insulation condition of plug-in cable connectors in GIS and transformer applications. Laboratory results have demonstrated high effectiveness for online detection, with FFT transform analysis used to differentiate between internal PDs and external corona discharges.
4.2 Classification of Defect Patterns
Systematic research into PD patterns at epoxy/rubber interfaces has revealed that different defect types produce distinct PD signatures:
· Voids: PD patterns exhibit phase-symmetric discharge peaks with characteristic amplitude distribution, typically occurring at multiple phase angles per half-cycle.
· Metallic particles: The presence of metal contaminants produces PD signals with high pulse repetition rates and distinctive phase-resolved patterns. These defects can further induce arcing and local melting at contact points.
· Insulation fibers: Organic contamination generates PD patterns with lower amplitudes but extended duration, often accompanied by tracking development along the interface.
These distinctive PD signatures can be precisely utilized for early diagnosis of progressive insulation deterioration.
4.3 Online Condition Monitoring
Recent advancements have introduced smart separable connectors with integrated sensing capabilities. TE Connectivity has developed T-connectors up to 72 kV incorporating built-in voltage and PD detection systems for offshore wind applications. Such integrated monitoring solutions enable continuous assessment of insulation health without requiring separate sensor installation.
For field applications, frequency-selective multi-sensor systems combining HFCT with capacitive coupling have shown the ability to reliably identify PD faults as local to the connector rather than external sources, even under significant background noise conditions. This capability is particularly valuable in switchgear environments where multiple noise sources coexist.
Based on the analysis above, the following practices are recommended:
· Routine PD testing: Implement periodic PD measurements on separable connectors that have undergone multiple plugging cycles, using HFCT or UHF techniques to detect early-stage insulation degradation.
· Installation quality control: Ensure proper torque application for rear insulation components during assembly. Loose connections, even at secure studs, can initiate PD activity.
· Environmental protection: Utilize appropriate shielding and sealing measures to minimize particle ingress and moisture contamination during disconnection operations. The use of clean lubricants recommended by manufacturer specifications is essential.
· Diagnostic threshold establishment: Develop acceptance criteria for PD levels based on defect classification studies, allowing early identification of critical faults before they escalate to breakdown.
Repeated plugging and withdrawal operations introduce unique challenges to the insulation integrity of high-voltage separable connectors. The gradual degradation of interfacial pressure—caused by material creep, fatigue, particle ingress, and surface abrasion—directly influences partial discharge characteristics and accelerates failure progression. The distinctive PD signatures associated with different defect types offer practical pathways for early diagnosis. By integrating advanced sensing technologies such as HFCT, UHF detection, and smart connector systems, condition-based maintenance strategies can effectively mitigate the risks posed by repeated mechanical operations, ensuring long-term reliability of power distribution equipment.
