Lightning remains the leading cause of unplanned outages on overhead transmission and distribution lines worldwide. The economic consequences are substantial: nuisance fuse operations, transformer failures, and sustained interruptions impose significant costs on utilities and degrade customer satisfaction. Effective lightning protection requires more than installing surge arresters at every structure or simply upgrading fuse ratings. It demands a differentiated strategy in which fuse selection and surge arrester placement are coordinated according to the site-specific lightning risk level.
The first step in any differentiated configuration is quantifying the lightning risk at each structure or line section. IEEE Std 1243, Guide for Improving the Lightning Performance of Transmission Lines, provides the foundational methodology for estimating flashover rates based on tower geometry, shielding angle, footing resistance, and ground flash density.
In practice, utilities classify lightning risk into four grades based on the calculated trip-out rate per 100 km per year. Structures with a rate below 0.14 are classified as low risk (Grade I); 0.14–0.21 as moderate (Grade II); 0.21–0.42 as elevated (Grade III); and above 0.42 as high risk (Grade IV). Risk assessment should prioritise Grade IV towers for immediate mitigation, followed by Grade III and II towers as budget and operational conditions permit. Grade I towers generally require no additional lightning-specific measures beyond standard shielding and grounding.
Tower-footing grounding resistance is the single most influential parameter in backflashover risk. For lines in areas with ground flash density exceeding 6 flashes/km²/year, low-frequency grounding resistance should be maintained below levels that keep the impulse impedance within acceptable bounds—typically targeting 20 Ω or lower where soil resistivity permits. Where high soil resistivity prevents achieving this target, surge arresters become the primary mitigation tool.
The core challenge in coordinating fuses and arresters lies in their fundamentally different operating principles. Surge arresters are voltage-clamping devices designed to divert transient overvoltages to earth; fuses are current-interrupting devices designed to isolate faulted equipment. When a lightning surge passes through a fuse before reaching the arrester, the fuse may experience nuisance operation due to the high-rate-of-rise impulse current, even though no sustained fault exists.
The preferred configuration is to install the surge arrester on the line side of the fuse—that is, upstream of the fuse relative to the surge source. In this arrangement, the lightning current bypasses the fuse entirely, and the arrester handles the surge energy before it can stress the fuse element. The fuse then only needs to be graded for power-frequency fault current and transformer inrush, not for lightning impulse withstand.
Where the arrester must be installed on the load side of the fuse, additional measures become necessary. Analytical methods for coordination in this configuration must account for fuse arc voltage, arrester back voltage characteristics, and system energy. A step-by-step analytical approach based on these parameters allows selection of an arrester that will not spark over on the maximum arc voltage generated during fuse operation.

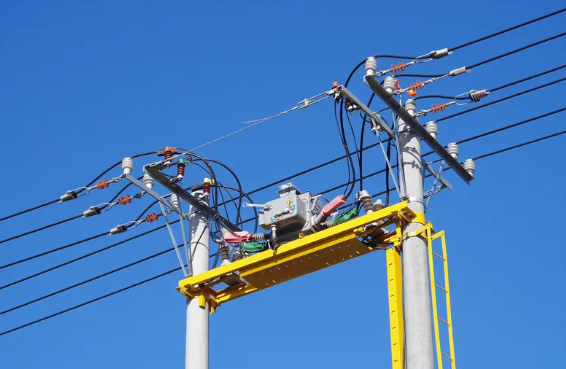

Grade I–II (Low to Moderate Risk): Standard configuration applies. Install surge arresters at transformer terminations and line entrance points. Fuses are sized according to conventional power-frequency protection grading, with attention to coordination with upstream and downstream protective devices. At these risk levels, the probability of lightning-induced fuse misoperation is low enough that additional measures are not economically justified.
Grade III (Elevated Risk): Line surge arresters (LSAs) are recommended on the most exposed phases, typically the upper and middle phases where shielding is least effective. Non-gap line arresters (NGLAs) are preferred for their lower residual voltage and simpler construction. Fuses should be relocated to the line side of the arrester where feasible. If the fuse cannot be moved, a lightning-proof fuse design—incorporating a spark gap in parallel with the fuse element and a series inductor that presents low impedance at power frequency and high impedance at lightning frequencies—can be specified.
Grade IV (High Risk): Full-phase arrester installation is warranted. Arresters should be installed on every phase of the affected circuit, with additional arresters on adjacent structures to prevent backflashover propagation. Bushing-mounted fuses, which minimise arcing during operation and reduce the physical footprint of the installation, are recommended for transformer protection. Where conventional fuse-and-arrester assemblies are used, combined arrester-fuse devices that share a common insulating base reduce material cost by approximately 50% and shorten installation time by half.
Consider a 110 kV line section traversing a mountainous region with a measured ground flash density of 8 flashes/km²/year and average tower footing resistance of 45 Ω. Risk assessment classifies 12 towers as Grade IV and 8 towers as Grade III. Using the graded approach: Grade IV towers receive full-phase NGLA installation with bushing-mounted fuses on transformer-connected structures; Grade III towers receive NGLAs on upper and middle phases only; and Grade I–II towers retain standard configurations. This differentiated deployment reduces the total arrester count by approximately 35% compared with a uniform full-installation strategy while maintaining the calculated trip-out rate below the Grade II threshold.
Coordinated fuse and arrester configuration based on lightning risk grading offers a technically sound and economically efficient approach to transmission line lightning protection. By aligning protection measures with site-specific risk levels—and by ensuring that arresters are positioned to intercept lightning surges before they reach fuses—utilities can minimise both nuisance fuse operations and equipment damage. The key principles are: assess risk first, position arresters upstream of fuses wherever possible, and apply differentiated installation densities according to the calculated risk grade.
