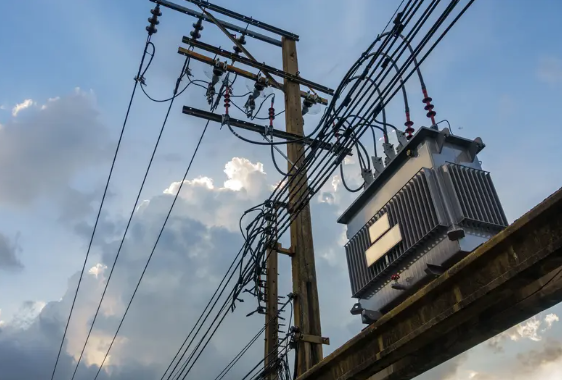

Drop-out fuse cutouts remain one of the most widely deployed protective devices in medium-voltage overhead distribution networks worldwide. Their simplicity, low cost, and reliable fault interruption have made them the preferred choice for protecting distribution transformers, capacitors, and lateral lines against short circuits and overload conditions. However, a persistent and often underestimated challenge accompanies the switching operation of these devices: the generation of switching overvoltages.
When a drop-out fuse cutout operates—whether during manual load switching or automatic fault clearing—the interruption of current in an inductive circuit inevitably produces transient overvoltages. These voltage spikes, if not properly managed, can stress insulation systems, damage downstream equipment, and even cause premature failure of surge arresters installed for lightning protection. Research has demonstrated that surge arresters in distribution systems typically withstand voltages up to 1.9 per unit of phase voltage; when switching overvoltages exceed this threshold, arrester damage becomes a significant risk.
The overvoltage phenomenon during fuse cutout switching arises from the fundamental physics of inductive circuit interruption. When the fuse link melts and the arc is extinguished, the sudden cessation of current flow in the inductive load causes the magnetic field to collapse, inducing a voltage that can reach several times the nominal system voltage. The magnitude of this transient is influenced by multiple factors: the interrupted current level, the inductance of the protected circuit, the speed of current zero crossing, and the transient recovery voltage (TRV) characteristics of the system.
In expulsion-type fuses—the most common variant of drop-out cutouts—the arc extinction process itself can exacerbate the overvoltage condition. The rapid deionization of the arc path within the fuse tube creates a steep rate of change of current (di/dt), which in turn produces higher induced voltages. Field experience and simulation studies have confirmed that the connection scheme of the drop-out fuse significantly affects the magnitude and duration of these switching transients, making proper system design essential for overvoltage control.
The conventional approach to overvoltage protection in distribution systems pairs a drop-out fuse cutout with a metal-oxide surge arrester (MOA), typically an IEEE C62.11- or IEC 60099-4-compliant device. While this arrangement provides effective protection against lightning surges, its performance during switching operations is less assured.
The core issue lies in the energy-handling capability of the arrester. Switching overvoltages, though lower in peak magnitude than lightning impulses, often carry significantly more energy and have longer durations. When a fuse cutout operates, the resulting transient can subject the arrester to repeated energy pulses that gradually degrade the metal-oxide varistor blocks. This cumulative stress can lead to thermal runaway, reduced clamping voltage, or catastrophic failure of the arrester.
Furthermore, the coordination between the fuse and the arrester presents a design challenge. If the arrester's protection level is too low, it may conduct during normal switching operations, experiencing unnecessary wear. If set too high, it may fail to clamp dangerous switching transients effectively. IEEE standards, including IEEE C37.48.1, provide guidance for achieving proper coordination, yet the dynamic nature of switching overvoltages often complicates this task.
To address these limitations, a coordinated protection architecture combining an active energy-absorption circuit with a surge arrester offers a robust solution. This scheme operates on the principle of hierarchical overvoltage suppression: fast transients are handled by the arrester, while sustained or high-energy switching overvoltages are mitigated by the energy-absorption circuit.
The energy-absorption circuit typically comprises a resistor-capacitor (RC) snubber network placed in parallel with the fuse cutout or the protected load. The RC snubber serves two critical functions. First, the capacitor provides a low-impedance path for high-frequency transient currents, effectively bypassing the surge energy around the load. Second, the resistor damps the oscillations that would otherwise occur between the circuit inductance and the snubber capacitance, preventing sustained ringing.
The selection of snubber parameters—resistance and capacitance values—is system-specific and depends on the circuit inductance, the magnitude of the switching current, and the acceptable overvoltage level. Properly designed, the RC snubber can limit voltage overshoot to within the arrester's continuous operating voltage range, ensuring that the arrester only operates during true surge events.
In high-power applications, a metal-oxide varistor (MOV) may be integrated into the snubber circuit to provide additional energy-absorption capability. This hybrid arrangement—combining passive RC elements with nonlinear varistor clamping—offers both fast response and high energy-handling capacity.
The surge arrester in this coordinated scheme is selected with a protection level slightly above the maximum continuous operating voltage but below the withstand capability of the protected equipment. The energy-absorption circuit reduces the amplitude and duration of switching transients to levels that the arrester can safely handle without degradation.
This hierarchical approach ensures that:
· Lightning surges are clamped directly by the arrester's fast response.
· Switching overvoltages are first attenuated by the energy-absorption circuit, reducing the energy burden on the arrester.
· Sustained overvoltages trigger the arrester's thermal protection, while the fuse cutout provides backup isolation if the arrester fails.
Field implementation of this coordinated protection scheme requires attention to several practical factors:
Device Placement: The energy-absorption circuit should be installed as close as possible to the fuse cutout to minimize the inductance of the connection leads, which could otherwise reduce the effectiveness of the snubber. Research indicates that placement within 5 meters of the fuse cutout is optimal for coordinated operation.
Rating Coordination: The voltage and energy ratings of both the snubber components and the arrester must be carefully matched to the system's maximum fault current and transient recovery voltage characteristics.
Maintenance and Monitoring: The energy-absorption circuit should include visual or remote indication of component health. Capacitor degradation or resistor failure can compromise the protection scheme, making periodic inspection essential.
Switching overvoltages generated during drop-out fuse cutout operations represent a significant reliability concern in medium-voltage distribution systems. Traditional arrester-only protection, while effective against lightning surges, often proves inadequate for the sustained energy demands of switching transients.
As distribution networks continue to evolve with increasing penetration of sensitive electronic loads and renewable energy sources, the importance of robust overvoltage protection will only grow. The energy-absorption circuit and arrester coordination strategy described here provides a practical, cost-effective path toward more resilient power delivery.
