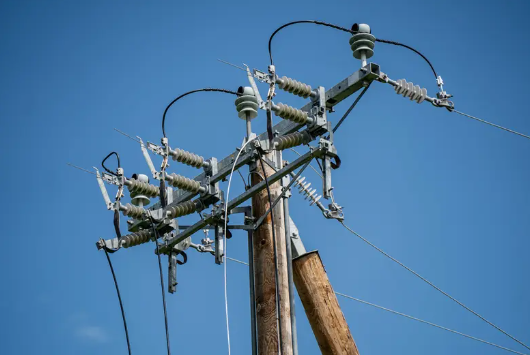

Insulators are critical components in overhead transmission line external insulation systems, providing both mechanical support and electrical insulation. During long-term outdoor service, they are exposed to industrial pollution, salt fog, dust deposition, ultraviolet radiation, rain, fog, temperature variation, and mechanical stress. When pollutants accumulate on the insulator surface and become wet, a conductive layer forms that facilitates the passage of leakage current, which may eventually lead to flashover and catastrophic line outages.
Traditional approaches to insulator maintenance rely on scheduled periodic cleaning, which is neither cost-effective nor responsive to actual pollution conditions. There is a growing industry need for real-time, continuous condition monitoring systems that can detect incipient faults and provide early warning before flashover occurs. This article presents a comprehensive online monitoring and early warning system for insulator condition assessment based on the synergistic combination of leakage current measurement and pulse counting methodology.
2.1 Leakage Current as a Diagnostic Indicator
Leakage current flowing along the contaminated insulator surface is widely recognized as one of the most important indicators of pollution level. As contamination severity increases, the leakage current exhibits characteristic changes in multiple parameters: the root-mean-square (RMS) value, maximum amplitude, number of pulses, harmonic spectrum, total harmonic distortion (THD), and the amplitude variation of odd harmonics (3rd, 5th, and 7th). Research has demonstrated that the 3rd, 5th, and 7th harmonic components extracted from leakage current act as reliable indicators for contamination level assessment.
2.2 Pulse Counting Method
The pulse counting method complements leakage current RMS measurement by capturing transient discharge events on the insulator surface. The leakage current of insulators contains many effective characteristics that can describe contamination states and the development of flashover. The quantity and amplitude of leakage current pulses provide critical information about surface discharge activity. Studies have shown that the RMS of leakage current and discharge pulses together reflect contamination severity with high fidelity.
Modern pulse-based monitoring approaches, combined with advanced data analytics, have achieved prediction accuracies exceeding 98% in real-time scenarios. The pulse count, pulse frequency, and pulse amplitude distribution serve as quantitative metrics for classifying contamination levels into categories such as light (0–20%), moderate (20–40%), and heavy (40–60%) contamination.
2.3 Synergistic Integration
The proposed system integrates both leakage current and pulse current monitoring in a unified framework. Leakage current measurement provides continuous assessment of overall surface conductivity, while pulse counting captures intermittent discharge events that often precede severe flashover. This dual-modality approach enables more robust condition assessment than either method alone. Environmental parameters—temperature, humidity, rainfall, and wind speed—are simultaneously acquired to establish a quantitative correction model that suppresses environmental interference and enables precise pollution severity evaluation.
3.1 Hardware Design
The monitoring system comprises a field-mounted data acquisition unit and a remote monitoring center. The acquisition unit is installed at the top of the insulator string and includes the following functional modules:
· Leakage Current Sensor: A feedback-compensation-type current transducer achieves high linearity and accurate leakage current measurement.
· Signal Conditioning Circuit: Includes I/V conversion, filtering, amplification, true RMS conversion, and high-frequency pulse counting circuits.
· Pulse Detection Module: Captures high-frequency discharge pulses using high-speed operational amplifiers.
· Environmental Sensor Suite: Measures temperature, humidity, and other meteorological parameters.
· Control Core: An embedded processor (e.g., ARM Cortex-M or dsPIC) handles data acquisition, preprocessing, and communication.
· Power Supply: Harvests energy from the high-voltage line through a current transformer.
3.2 Data Processing and Communication
The acquired signals undergo multiple processing stages: analog-to-digital conversion, digital filtering, feature extraction (RMS value, peak value, pulse count, pulse frequency, harmonic analysis), and data packaging. Communication with the remote monitoring center is accomplished via wireless networks such as GSM/GPRS/CDMA, Zigbee, or 3G/4G.
3.3 Remote Monitoring and Expert System
At the remote monitoring center, incoming data from multiple field units are stored, visualized, and analyzed. An expert analysis system integrates leakage current parameters, pulse statistics, and environmental data to perform quantitative assessment of insulator surface contamination (including灰密 and salt deposit density). The system generates trend curves, historical comparisons, and predictive alerts based on established thresholds and machine learning models.
The early warning system operates on multiple severity levels:
· Normal Operation: Leakage current RMS and pulse counts remain within baseline ranges.
· Attention Level: Moderate increase in leakage current and pulse frequency indicates accelerating contamination accumulation.
· Warning Level: Significant elevation of leakage current parameters and high pulse activity suggests imminent flashover risk.
· Alert Level: Critical values trigger immediate alarms, prompting maintenance intervention.
The system can issue real-time warning messages when sudden changes occur in leakage current values. By combining leakage current and pulse current monitoring, the system enables real-time early warning and pre-warning for pollution flashover. This facilitates the transition from periodic cleaning to condition-based maintenance, significantly reducing operational costs and improving grid reliability.
Laboratory experiments and field tests have demonstrated the effectiveness of this approach. Systems based on similar principles have achieved monitoring accuracy exceeding 91% in controlled tests. Hybrid multimodal frameworks incorporating climatic data with CNN-LSTM architectures have reached up to 99.2% accuracy in risk classification. The proposed system enables continuous live-line monitoring with good accuracy, effectively detecting early defects and excessive pollution.
The online monitoring and early warning system based on leakage current and pulse counting methodology represents a significant advancement in insulator condition management. By synergistically combining continuous leakage current measurement with transient pulse detection, and integrating environmental parameters for interference suppression, the system provides reliable, real-time assessment of insulator contamination status. The multi-level early warning mechanism enables proactive maintenance intervention, reducing the risk of costly flashover incidents and enhancing the overall reliability and safety of high-voltage transmission networks. As deep learning and edge intelligence technologies continue to mature, next-generation systems promise even higher prediction accuracy and operational efficiency, paving the way for truly intelligent power grid asset management.
