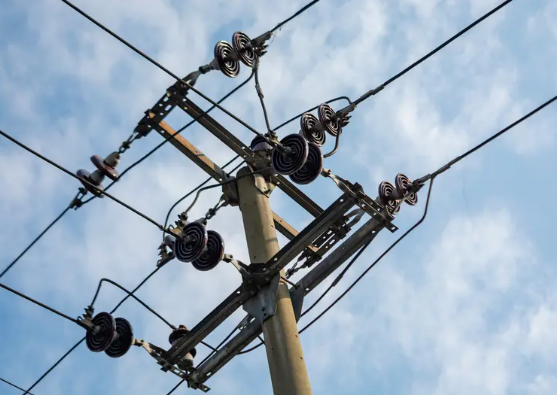

Insulator pollution flashover is a major cause of power grid accidents, seriously affecting the safety and reliable operation of power transmission systems. The primary mechanism behind pollution flashover is that solid or liquid pollution particles deposited on insulator surfaces cause flashover due to the reduction in electrical strength under certain weather conditions—particularly when high humidity, fog, or dew forms a conductive film across the contaminated surface.
Traditional approaches to combating pollution flashover have included periodic composite insulator washing, silicone greasing, and increasing the number of insulator discs. However, washing is labor-intensive and must be performed frequently, while greasing requires regular replacement and poses health and environmental disposal challenges. Given these limitations, the application of silicone rubber coatings has become the standard for insulation enhancement at both new and existing installations in polluted areas.
Room Temperature Vulcanized (RTV) silicone rubber coating is a widely used anti-pollution flashover material. Its main component is polydimethylsiloxane (PDMS), a novel anti-pollution and hydrophobic coating material. When applied to the surface of porcelain or glass insulators, RTV forms a thin, elastic film that dramatically alters the surface properties.
The coating exhibits several marked characteristics: excellent hydrophobicity with rapid, balanced, and continuous hydrophobic mobility; high anti-pollution flashover voltage; anti-electric arc and tracking resistance; and good electrical insulation properties. RTV coatings demonstrate high modulus, high strength, high adhesion, and high corrosion resistance, with effective service life extending for many years without requiring cleaning.
The key to RTV's effectiveness lies in its surface hydrophobicity. Silicone rubber prevents the formation of a continuous, wet conductive layer on insulation surfaces, thereby inhibiting the flow of leakage currents and consequent flashovers. Moreover, silicone possesses the unique property of allowing low molecular weight silanes within the bulk material to diffuse into the surface pollution layer, making the contamination itself hydrophobic. This hydrophobic transfer mechanism provides protection even in environments with high-volume pollutants such as sea salt, cement dust, and industrial emissions.
Research has demonstrated that the anti-pollution performance of RTV-coated insulators is significantly superior to uncoated alternatives. In fact, in terms of anti-pollution flashover performance and contribution to system reliability, factory dip coating of glass or porcelain discs rivals that of composite insulators.
RTV coatings can be applied through two primary methods: spray-on application in the field or dip coating in a factory setting. Factory dip coating has gained prominence in recent years, particularly in the Chinese market, where it is estimated that approximately one million factory pre-coated glass or porcelain UHV insulator discs are already in service. Dip coating offers superior quality consistency, better environmental performance with reduced air pollution and waste, and often achieves better end quality than spraying.
The coating thickness should be no less than 0.3 mm, applied completely and uniformly without defects or dripping. The product is suitable for ambient temperatures ranging from -50°C to 100°C and can be applied to various voltage levels in both AC and DC systems.
Increasing the creepage distance is the most effective method for enhancing the flashover voltage of insulators. Creepage distance—the shortest path along the insulator surface between the energized conductor and the grounded end—determines how effectively an insulator can resist surface flashover under contaminated conditions.
However, simply increasing creepage distance within a limited space can complicate the insulator's structure. Some insulators feature more umbrella ribs internally, creating complex and narrow spaces that can facilitate arc propagation through jumping. Interestingly, larger creepage distances can sometimes lead to a decrease in flashover voltage if the structural design is not optimized.
Research has identified that the arc paths between insulator umbrellas primarily fall into two categories: cling-surface arcs and air-jump arcs. The probability of these different arc path formations is influenced by structural parameters including umbrella extension, umbrella spacing, and maximum umbrella rib length.
The selection of appropriate creepage distance should be based on site pollution severity. The IEC 60815 series of standards provides guidelines for determining the reference unified specific creepage distance (RUSCD) from site pollution severity values or classes. For severely polluted environments, utilities such as Kuwait's Ministry of Electricity & Water have adopted unified specific creepage distances as high as 65 mm/kV.
The combination of RTV coating application and creepage distance optimization creates a powerful synergistic effect. RTV coatings enhance the surface properties of the insulator, making it more resistant to pollution accumulation and flashover, while optimized creepage distance design ensures that even if the coating is compromised or aged, the insulator retains adequate electrical withstand capability.
RTV coatings and composite insulation represent critical approaches for transmission line pollution flashover prevention. The effective utilization coefficient of creepage distance is a key parameter in external insulation configuration. Calculations for standard insulators coated with RTV demonstrate that in Class D and above pollution areas, the creepage distance utilization coefficient is significantly improved.
For utilities considering this comprehensive solution, the following implementation framework is recommended:
Step 1 – Site Assessment: Evaluate site pollution severity (SPS) according to IEC 60815 guidelines to determine the required specific creepage distance.
Step 2 – Insulator Selection: Choose insulators with optimized shed profiles—alternating ribs with spacing-to-length ratios between 0.67 and 1.5—to maximize creepage distance utilization.
Step 3 – RTV Coating Application: Apply RTV silicone coating through factory dip coating for new insulators or field spray application for in-service units. Ensure minimum coating thickness of 0.3 mm.
Step 4 – Ongoing Monitoring: Periodically assess coating condition and hydrophobicity, particularly in regions with severe environmental stressors such as heavy pollution, UV radiation, and high temperature and humidity.
The effectiveness of this comprehensive solution is supported by extensive field experience. In Australia's wet tropics, Powerlink Queensland has historically relied on glass and porcelain disc insulators, with pin corrosion being the primary failure mode, particularly on lines near the coast. The adoption of enhanced insulation strategies, including RTV-coated solutions, has helped address these challenges.
In South Africa, evaluation of various insulator materials at the Koeberg Insulator Pollution Test Station demonstrated that RTV silicone rubber coated porcelain specimens exhibited the lowest cumulative leakage current—only 27% of that observed on uncoated alternatives.
In Kuwait, where the transmission network faces severe desert, industrial, and marine pollution, the implementation of RTV silicone coatings on porcelain long rods has been a cornerstone of the pollution mitigation strategy. This program, featuring live replacement using advanced techniques, has significantly enhanced system reliability in one of the world's most challenging service environments.
Pollution flashover remains a critical challenge for transmission line reliability, but a comprehensive solution combining RTV anti-pollution flashover coatings with optimized creepage distance design offers a proven path forward. RTV coatings provide superior hydrophobicity and hydrophobic transfer properties that prevent the formation of conductive surface films, while optimized creepage distance design ensures robust electrical withstand capability even under challenging conditions.
The synergistic application of these two approaches delivers multiple benefits: reduced flashover incidence, extended maintenance intervals, lower lifecycle costs, and enhanced overall system reliability. As transmission networks continue to expand into increasingly challenging environments—coastal zones, industrial areas, and regions with extreme weather patterns—this comprehensive solution will play an increasingly vital role in ensuring secure and uninterrupted power delivery.
