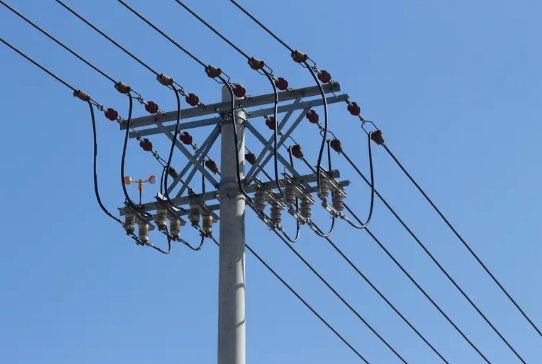

High-voltage insulators are critical components in power transmission systems, serving as both mechanical supports and electrical barriers between energized conductors and grounded towers. However, insulators operating outdoors are continuously exposed to environmental stressors—industrial pollution, coastal salt fog, sandstorms, and high humidity—that gradually degrade their dielectric strength. When contaminants accumulate on the insulator surface and become moistened, a conductive layer forms that drives leakage current (LC) activity across the insulator surface. If left unchecked, this process can escalate into a flashover—a catastrophic event that causes line outages, equipment damage, and significant economic losses.
Traditional approaches to insulator condition assessment rely on periodic visual inspections or offline laboratory testing of removed samples. These methods are labor-intensive, infrequent, and often fail to capture the progressive nature of contamination buildup. The convergence of high-precision leakage current sensing, Internet of Things (IoT) communication infrastructure, and artificial intelligence has given rise to a new paradigm: real-time, continuous, and intelligent insulator health monitoring that enables predictive maintenance before flashovers occur.
The Physical Basis: Leakage Current as a Health Indicator
Leakage current is the small electrical current that flows along the contaminated surface of an insulator under operating voltage. Its magnitude is directly correlated with the severity of surface contamination: higher pollution levels create more conductive paths, resulting in elevated leakage current. Modern monitoring systems capture leakage current across a wide dynamic range—typically from 10 μA to 100 mA—with measurement precision reaching ±1%.
However, leakage current alone does not tell the complete story. Environmental conditions profoundly influence contamination behavior. Humidity determines whether deposited pollutants become conductive; temperature affects the solubility and mobility of ionic contaminants; and wind patterns influence deposition rates. Consequently, effective diagnostics require synchronized multi-parameter acquisition: leakage current, ambient temperature, relative humidity, atmospheric pressure, and in some implementations, equivalent salt deposit density (ESDD) and non-soluble deposit density (NSDD).
System Architecture: From Sensor to Insight
A complete real-time insulator health monitoring system comprises four hierarchical layers:
1. Sensing Layer. High-precision current sensors—often implemented as Rogowski coils or zero-phase current transformers—are installed at the grounding end of insulator strings to capture leakage current non-invasively. These sensors must withstand extreme environmental conditions, with industrial-grade designs typically rated for -40°C to 85°C operation and IP65/IP67 ingress protection. Supplementary sensors measure environmental parameters that contextualize the leakage current readings.
2. Data Acquisition and Edge Processing Layer. Raw analog signals from sensors are amplified, filtered, and digitized by microcontrollers (typically ARM Cortex-M series or equivalent). Edge computing units perform preliminary signal processing—extracting features such as RMS values, peak amplitudes, harmonic content, and pulse burst frequencies. This local preprocessing reduces the volume of data transmitted to the cloud and enables low-latency local alerting.
3. Communication Layer. Processed data is transmitted to remote monitoring centers via wireless communication networks. Contemporary systems leverage 4G/5G cellular networks for high-bandwidth, low-latency transmission, while LoRa and Zigbee are employed in scenarios prioritizing low power consumption over data rate. Encrypted communication protocols ensure data security and integrity. Solar panels coupled with battery storage provide autonomous power, sustaining operation for 30–60 days without sunlight.
4. Cloud and Analytics Layer. At the remote server, monitoring software performs data storage, multi-dimensional visualization, and advanced analytics. This layer transforms raw streaming data into actionable intelligence through statistical analysis, trend prediction, and automated alert generation.
Intelligent Diagnostics: From Thresholds to Deep Learning
Early leakage current monitoring systems operated on simple threshold-based logic: if the current exceeded a preset value, an alarm was triggered. While functional, this approach suffers from high false-positive rates and cannot distinguish between gradual contamination buildup and transient environmental fluctuations.
Contemporary systems employ sophisticated machine learning and deep learning architectures that significantly enhance diagnostic accuracy. Recent systematic reviews have documented a paradigm shift from traditional statistical indicators to advanced deep learning approaches, with modern pulse-based monitoring and deep learning achieving prediction accuracies exceeding 98% in real-time scenarios. Hybrid multimodal frameworks—such as CNN-LSTM networks that fuse leakage current data with climatic parameters—have demonstrated risk classification accuracy up to 99.2%.
One particularly notable development is the classification of leakage current signals into five distinct operational stages: negligible leakage current, leakage current starting, leading to flashover, pre-flashover, and flashover. This progressive classification enables early warning by identifying subtle changes in leakage current behavior that precede catastrophic insulation failure. The underlying models, based on inception modules with residual connections, effectively capture multiscale temporal patterns in leakage current signals. Furthermore, post-training quantization techniques have enabled model compression of over 90% with negligible accuracy loss, allowing deployment on resource-constrained edge devices in remote substations.
Beyond classification, deep learning models are being employed for predictive maintenance. Long Short-Term Memory (LSTM) neural networks analyze historical leakage current trends alongside environmental data to forecast insulator degradation trajectories, enabling maintenance crews to schedule washing or replacement proactively.
Practical Deployment and Field Validation
Real-world deployments have demonstrated the tangible benefits of IoT-enabled leakage current monitoring. In a application, the implementation of such systems reduced flashover incident rates by 82%. The transition from quarterly manual inspections to minute-level automated monitoring has reduced annual per-line maintenance costs by approximately 40%.
The technology has been validated across diverse and challenging environments. In northwestern China's 750 kV transmission lines, where annual sandstorms pose severe contamination risks, the system achieved a 91.3% accuracy rate. Systems have also been deployed in coastal salt-fog zones, industrial pollution areas, and icing regions—each presenting unique contamination mechanisms that the multi-parameter approach can effectively address.
The trajectory of insulator health monitoring technology points toward increasingly intelligent and autonomous systems. Several emerging directions merit attention:
Generative AI for Data Augmentation. Generative Adversarial Networks (GANs) and diffusion models are being explored to synthesize rare fault event data, addressing the class imbalance problem that plagues fault prediction models.
Transformer and xLSTM Architectures. The transition from recurrent neural networks to transformer-based models promises improved capture of long-term pollution trends and seasonal patterns.
TinyML and Edge Intelligence. Deploying machine learning models directly on edge devices reduces cloud dependency, lowers latency, and enhances privacy.
Graph Neural Networks for Optimal Sensing. GNNs can optimize sensor placement across transmission network topologies, maximizing information gain while minimizing deployment costs.
Digital Twin Integration. Three-dimensional state visualization through digital twin technology is enabling more intuitive condition assessment and scenario simulation.
The integration of high-precision leakage current sensing with IoT communication infrastructure and artificial intelligence has fundamentally transformed insulator health monitoring from a periodic, labor-intensive activity into a continuous, automated, and intelligent process. By capturing the electrical signature of surface contamination in real time and contextualizing it with environmental data, these systems provide early warning of impending flashovers, enable condition-based maintenance scheduling, and significantly enhance the reliability and safety of power transmission networks. As deep learning architectures continue to evolve and edge computing capabilities expand, the next generation of insulator diagnostic systems will deliver even greater accuracy, lower latency, and deeper predictive insight—moving the industry closer to the goal of a truly self-healing grid.
