Prefabricated joints represent a "plug-and-play" approach in high-voltage engineering. The key insulating component—a stress control body, often made from silicone rubber (SiR) or ethylene propylene diene monomer (EPDM)—is factory-molded under ideal, controlled conditions. This body contains pre-engineered, geometric stress grading layers and a precise interfacial system.
· Core Technology & Installation: The installation process focuses on precision preparation of the cable end (stripping, cleaning, connector crimping) and then sliding or assembling the pre-molded rubber body onto it. The critical interface between the cable insulation (typically XLPE) and the joint body is either a tight, interference fit or is filled with a dielectric grease or gel to eliminate microscopic voids. For higher voltages (> 145 kV), the joint is often evacuated and filled with insulating fluid (oil or gas) or sealed within a solid dielectric medium.
· Inherent Advantages:
· Consistency & Quality: The insulation is manufactured in a clean, automated environment, guaranteeing consistent dielectric properties and perfect stress control geometry.
· Reduced Skill Dependency & Speed: The most complex work is done at the factory. On-site, the process is largely assembly-oriented, requiring less subjective craftsmanship from the technician, leading to faster, more predictable installation times.
· Superior Partial Discharge (PD) Performance: The controlled manufacturing process and excellent interface sealing typically result in extremely low and stable partial discharge levels from day one.
· Robust Environmental Sealing: Prefabricated joints are designed as complete, monolithic sealing systems (often with integrated heat-shrink or rubber outer shells), offering exceptional protection against moisture, contaminants, and mechanical damage.
The tape-wrapped method embodies the traditional, craftsman-centric approach. Here, the insulation and stress control system are built layer-by-layer directly onto the prepared cable end at the installation site using rolls of semi-conductive and insulating tapes, most commonly based on self-amalgamating EPR (Ethylene Propylene Rubber).
· Core Technology & Installation: This is a true field molding process. After preparing the cable and installing the connector, the technician manually applies successive layers of semi-conductive tape to rebuild the conductor shield and stress control cone (using geometrically tailored "rolls"), followed by many layers of insulating tape to build up the main insulation wall. The final layer is an outer semi-conductive tape for grounding. The self-fusing property of the tapes creates a supposedly homogeneous insulating body over time.
· Inherent Advantages:
· Ultimate Flexibility & Adaptability: It is the universal solution for non-standard cable types, unusual geometries, or repair situations where a pre-sized component would not fit. It can accommodate a wide range of cable diameters and insulation thicknesses.
· Lower Initial Material Cost: The raw material (tapes) is generally less expensive than a complex, factory-molded rubber body.
· Proven Long-Term Track Record: When executed flawlessly by a master installer, it has a long history of reliable service, especially in utility networks familiar with the technique.
Parameter Prefabricated Joints Tape-Wrapped Joints
Installation Driver Process & Consistency Skill & Artistry
Key Risk Factor Incorrect cable preparation or sizing. Variability in tape application (pressure, overlap, contamination).
Quality Determinant Factory production line. Technician's expertise, environmental conditions (dust, humidity).
Partial Discharge (PD) Inherently low, highly consistent. Highly dependent on installation quality; risk of voids/inclusions.
Moisture/Sealing Integral, robust multi-layer seal. Dependent on external sealing kits (e.g., heat-shrink sleeves).
Mechanical Protection Typically integrated into design. Provided by external accessories.
Speed Faster. Standardized, less skill-intensive steps. Slower. Labor-intensive, layer-by-layer process.
Application Boundary Standardized cable designs, urban projects, tight timelines, high-reliability demands. Non-standard cables, legacy systems, emergency repairs, remote locations, budget-sensitive projects.
The choice is not about which technology is universally "better," but which is optimal for a specific context.
· Standardization Prevails: The cable fleet uses common, standardized dimensions.
· Time & Labor are Critical: In urban projects with high outage costs or limited working windows (e.g., traffic tunnels).
· Consistency is Paramount: For networks targeting the lowest possible infant mortality failure rate and predictable PD performance.

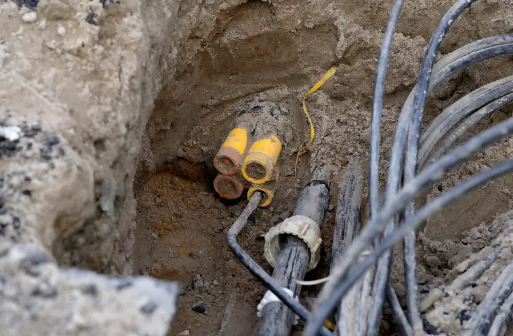

· Harsh Environments: In direct burial, flood-prone, or chemically aggressive soils where the joint's integral seal is a primary defense.
· Skilled Labor is Scarce: The process is easier to standardize and verify with less experienced crews.
· Flexibility is Required: Dealing with diverse, aging, or non-standard cable inventory, especially in industrial plants or legacy utility networks.
· Repair & Adaptability are Key: For emergency repairs or situations where exact cable specs are unknown, and a custom fit is needed on-site.
· Initial Capex is a Major Constraint: Budget limitations favor lower material cost, assuming skilled labor is available and schedule allows.
· In-House Expertise Exists: The organization possesses deeply experienced, certified jointers who are masters of the craft.
The debate is evolving. Prefabricated technology is expanding its range with more adaptive designs, while tape-wrapped systems benefit from improved tape materials and training aids. The future lies in selecting the tool that fits the task. For greenfield projects and modern, standardized networks, prefabricated joints are increasingly the default due to their reliability and efficiency. However, the tape-wrapped joint remains an indispensable, flexible craft for maintenance, diversification, and specific challenges.
Ultimately, the "winner" is the specifier who understands both philosophies deeply. The wisest strategy involves maintaining expertise in both domains, applying the prefabricated solution for its repeatable excellence in standard applications, and reserving the tape-wrapped method for its unparalleled adaptability in non-standard scenarios. This dual-competency approach ensures resilience, cost-effectiveness, and maximum network uptime.
