Water or humidity penetration into a cable joint is a precursor to catastrophic failure. It initiates a cascade of degenerative processes:
· Electrochemical Treeing: Water, combined with impurities and electrical stress, leads to the formation of dendritic micro-channels within the insulation. These "water trees" and subsequent "electrical trees" gradually erode the dielectric integrity, ultimately causing breakdown.
· Partial Discharge (PD): Moisture creates voids or changes the dielectric constant at interfaces, leading to localized electrical discharges. These PDs, often invisible, continuously degrade the insulation material.
· Corrosion: Water corrodes metallic conductive shields and connector surfaces, increasing resistance, causing localized overheating, and compromising the joint's mechanical integrity.
· Hydrolysis: Some insulation materials, like certain polymers, can chemically break down in the presence of water and heat.
Therefore, the sealing system is not merely an environmental shield; it is a primary dielectric component. Modern sealing methodologies employ a multi-layered, defense-in-depth approach:
1. Intrinsic Interface Sealing: This is the first line of defense at the critical interface between the cable insulation and the joint's insulating body. State-of-the-art solutions use stress-relief cones or mastics infused with super-absorbent polymers (SAP) and dielectric gels. These materials actively absorb any trace moisture, prevent interfacial voids, and uniformly control the electric field to eliminate stress concentrations.

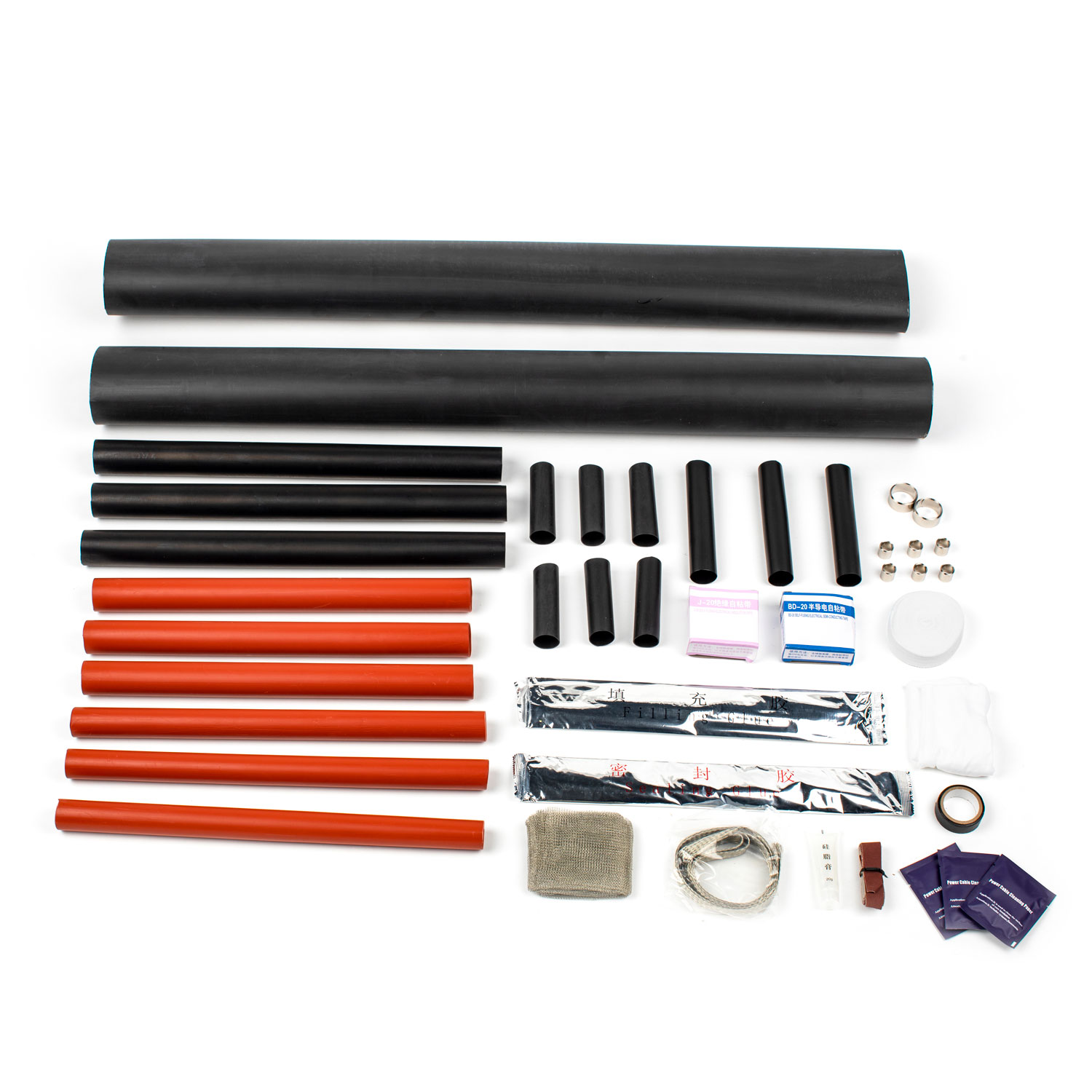

2. Radial Environmental Sealing: This seal protects the entire joint body. The gold standard is provided by heat-shrinkable or cold-shrinkable tubes. Heat-shrink sleeves, often made from cross-linked polyolefins with an internal layer of sealant (e.g., hot-melt adhesive), conform tightly to the cable and joint components upon heating, creating a permanent, monolithic barrier. Cold-shrink solutions, pre-expanded on a removable core and employing engineered elastomers like EPDM or silicone with high recovery force, offer equally robust sealing without the need for torches, reducing installation risk. Both types must possess excellent long-term aging resistance, chemical stability, and resistance to soil stresses.
3. Mechanical and Multi-Stage Sealing: For higher voltage levels or harsh environments (e.g., direct burial, submarine applications), mechanical compression glands or gel-filled encapsulations are used. These systems provide immense radial pressure on the cable entry points or encapsulate the entire joint in a dielectric, hydrophobic gel within a rigid shell, offering unmatched mechanical strength and barrier performance.
While perfect sealing is the goal, a comprehensive security strategy assumes the possibility of failure and implements layers of protection to mitigate consequences and enable proactive intervention.
1. Design and Material Excellence: The foundation is using joints rated for the specific application (voltage, load cycle, soil conditions) and manufactured to the highest quality standards. Materials must be compatible with the cable insulation (XLPE, EPR, etc.) to avoid long-term incompatibility issues.
2. Advanced Monitoring and Diagnostics: Passive protection is no longer sufficient. Integrating online monitoring systems is crucial:
· Distributed Temperature Sensing (DTS): Optical fibers run along the cable can detect abnormal heat buildup at a joint, indicating poor contact, overload, or the onset of internal degradation.
· Partial Discharge Monitoring: Continuous or periodic PD monitoring, using high-frequency current transformers (HFCT) or capacitive couplers, provides the earliest warning of insulation compromise, often years before failure.
· Moisture/DGA Monitoring: For sealed joints, sensors can monitor for the presence of hydrogen or other gases generated by incipient faults within the sealed environment.
3. Installation Quality Assurance (IQA): The majority of joint failures are attributed to installation errors. Implementing strict IQA protocols—including certified training, standardized procedures, cleanliness protocols ("white room" conditions where possible), and post-installation testing like VLF (Very Low Frequency) tan-delta or PD testing—is a non-negotiable protective strategy.
4. System-Level Protections and Redundancy:
· Differential Protection: Fast-acting differential relays can isolate a faulted cable section within milliseconds, minimizing damage and network disruption.
· Proper Grounding: Ensuring correct grounding of cable shields and joint shells is vital to manage fault currents, prevent dangerous touch potentials, and ensure protective device operation.
· Network Design: Where critical, designing for redundancy (e.g., looped systems) allows for rapid re-routing of power, isolating the faulted segment without causing customer outages.
5. Data-Driven Asset Management: Data from monitoring systems, combined with historical records and soil condition analytics, feeds into predictive maintenance models. This shifts the paradigm from reactive or time-based maintenance to condition-based interventions, allowing utilities to prioritize resources and prevent failures before they occur.
In the hidden arteries of our infrastructure, the security of the high-voltage cable network hinges on the integrity of its joints. There is no singular solution; rather, it is the synergistic combination of advanced, multi-layered waterproof sealing technologies and a holistic, proactive fault protection strategy that delivers true resilience. From molecular-level sealants and precision-engineered sleeves to intelligent monitoring and data analytics, the industry's focus must remain on perfecting these interconnected disciplines. Investing in these core areas is not an operational cost but a strategic imperative for ensuring the uninterrupted and safe transmission of power upon which modern society depends.
