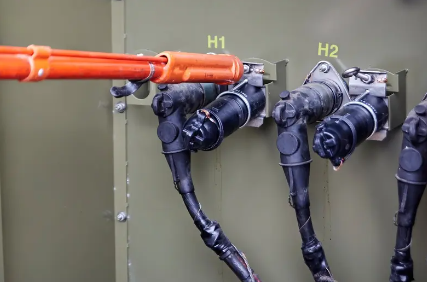

At its core,the connector must carry the full rated current (e.g., 630A) with minimal resistance and overheating. This is achieved through high-conductivity materials like copper or copper alloys. The contact system is critical:
· Spring-Loaded Contacts: Multiple finger-shaped, silver-plated contacts are used to ensure a large surface area and high pressure at the interface, minimizing contact resistance and preventing overheating.
· Ablative Contacts: In connectors designed for load-break operation, special ablative contacts are used. When the connector is operated under load, these contacts create a gas that helps extinguish the electric arc safely within the interrupter chamber.
The insulation must withstand the phase-to-earth and phase-to-phase voltage stresses(e.g., for 24kV systems). Two primary technologies dominate:
· Elastomeric (Rubber) Insulation: Traditionally used, this system relies on a precisely molded EPDM or silicone rubber housing. It provides excellent elasticity, a tight seal, and good electrical properties. The interface relies on a tight fit and surface pressure for insulation.
· Heat-Shrink (or Cold-Shrink) Technology: Often used as an external seal or as part of a hybrid system. A pre-expanded tube shrinks onto the cable interface when heated (or when a support coil is removed), creating a permanent, void-free, and waterproof seal.
Without proper field control,electrical stresses would concentrate at sharp points, leading to partial discharges and eventual insulation failure. Connectors incorporate semi-conductive layers:
· Interface Shield/Electrode: A semi-conductive layer is molded into the rubber interface. It smoothly grades the electrical field from the high-voltage conductor potential to the earth potential of the cable sheath or RMU enclosure.
· Stress Cone Geometry: The shape of the insulation, particularly in the area where it meets the cable, is designed as a "stress cone" to distribute the electrical field evenly.
For gas-insulated RMUs,the connector acts as a pressure barrier, containing the SF6 or alternative insulating gas (like clean air or SF6 mixtures). This requires extremely reliable static seals (O-rings) and dynamic seals (where the connector moves during operation).
Connector Interfaces: Standardization and Compatibility
A significant challenge in the market is interface standardization. While international standards like IEC 60502-4 and IEEE 386 define dimensional and performance requirements, many manufacturers have proprietary designs. This creates a "vendor-lock-in" situation, where connectors from one manufacturer are not compatible with another's RMU. The industry is moving towards greater standardization with interfaces like the European-style Ø55 mm or Ø60 mm and various Amercian-style profiles, but specifying engineers must always verify compatibility.
The market for RMU connectors is evolving, driven by the needs of the modern grid:
1. Shift to Eco-Friendly Insulation: With the global push to reduce SF6 gas usage (a potent greenhouse gas), new RMU designs use alternative gases like clean air or nitrogen. This places new demands on connector design, as these gases have lower dielectric strength, requiring optimized field control and slightly larger clearances.
2. Enhanced Monitoring and Digitalization: The "digital substation" trend is reaching RMUs. We are seeing the integration of Temperature Monitoring Sensors directly into the plug-in connectors. These sensors provide real-time data on connection health, enabling predictive maintenance and preventing failures before they occur.
3. Demand for Higher Performance and Safety: Utilities are demanding connectors rated for higher duties, such as fully fault-making (FLC) and earthing (ELC) capabilities, allowing operators to safely connect to or earth a cable even if it is energized or faulted.
4. Focus on Lifecycle Cost and Reliability: The initial cost of the connector is small compared to the cost of a network outage. There is a growing preference for robust, proven designs that offer long-term reliability over cheaper alternatives, minimizing the total cost of ownership.
The plug-in cable connector is far from a simple accessory. It is a highly engineered, safety-critical component that defines the operational flexibility, safety, and reliability of the entire Ring Main Unit. As distribution networks become smarter, greener, and more resilient, the technology within these connectors will continue to advance. Understanding their design principles, interface requirements, and market trends is crucial for utilities, contractors, and engineers to make informed decisions that ensure a stable and efficient power supply for the future.
