Single-phase grounding faults are the most frequently occurring fault type in distribution networks, yet they present unique detection and isolation challenges. In non-effectively grounded systems—which dominate medium-voltage distribution—fault currents are typically small, making them difficult to detect using conventional overcurrent protection. Traditional approaches rely on substation-based line selection devices followed by manual patrol to locate the fault, a process that can extend outage durations from minutes to hours.
The advent of smart fuses—integrating embedded sensing, edge computing, and wireless communication into the traditional drop-out fuse form factor—has fundamentally transformed this landscape. These devices enable localized fault detection, autonomous isolation, and coordinated self-healing restoration, dramatically reducing outage durations and improving grid resilience.
2.1 Primary-Secondary Fusion Design
Modern intelligent fuses adopt a primary-secondary fusion architecture that seamlessly integrates voltage and current sensors, control electronics, and communication modules within a single compact unit. Embedded capacitive or resistive dividers serve as voltage sensors, while current transformers or Rogowski coils provide high-precision current measurement, achieving metering accuracy comparable to Class 0.5S instrument transformers.
The sensing module continuously streams critical parameters—three-phase voltage, three-phase current, zero-sequence current, contact temperature, and mechanical position—to the onboard processing unit. High-voltage power the line itself eliminates the need for external power supplies or batteries, ensuring reliable operation even during fault conditions.
2.2 Edge Computing for Fault Classification
The intelligence resides in edge computing capabilities embedded within the device. By analyzing multiple parameters simultaneously—including current slew rates, zero-sequence voltage and current, mechanical displacement data, and thermal signatures—the device can:
· Distinguish between transient and permanent faults
· Differentiate single-phase ground faults from phase-to-phase short circuits
· Detect high-impedance ground faults with transition resistances exceeding 10 kΩ
Advanced implementations employ machine learning models trained on historical fault data to achieve fault recognition accuracy exceeding 98%. This capability addresses the fact that 70-80% of outages are caused by transient faults—smart devices can ride through these events and report them for analysis rather than unnecessarily sacrificing a fuse element.
2.3 Wireless Communication and Grid Integration
Communication modules supporting NB-IoT, LoRa, 4G/LTE, or micro-power wireless technologies enable real-time data transmission to distribution management systems or SCADA platforms. When a fault occurs, the control center receives an immediate alert with precise GPS coordinates, eliminating the need for visual patrols.
3.1 Zero-Sequence Based Detection
The primary detection mechanism for single-phase ground faults relies on zero-sequence quantities. When a single-phase ground fault occurs, the system experiences zero-sequence voltage elevation accompanied by characteristic changes in phase voltages—one phase voltage drops significantly while the other two rise. The smart fuse's embedded sensors capture these signatures in real time.
The device computes the zero-sequence current from three-phase current measurements and compares it against configurable thresholds. With sensitivity adjustable from 0.1A to 600A, smart fuses can reliably detect even high-impedance ground faults that would evade conventional protection.
3.2 Transient Signal Analysis
For enhanced reliability, advanced smart fuses incorporate transient signal analysis. Fault-induced traveling waves carry directional information—the fault initial traveling wave at the source-side smart switch appears as a reverse traveling wave, while at the load-side it appears as a forward traveling wave. By analyzing these signatures alongside steady-state zero-sequence and phase information, the device achieves robust fault discrimination.
Multi-algorithm fusion—combining zero-sequence current comparison, zero-sequence power direction, and transient waveform analysis—further improves detection accuracy. Field deployments have demonstrated fault identification accuracy approaching 100% for transition resistances up to 10,000Ω.
4.1 The "Local Judgment, Local Processing" Principle
The cornerstone of this approach is the principle of localized fault handling—relying on field devices to achieve fault isolation and restoration with minimal dependence on centralized control systems or communication infrastructure. This localized processing strategy ensures that even under communication failures, the protection system continues to function.
4.2 Hierarchical Protection Coordination
Smart fuses participate in a hierarchical protection coordination scheme typically organized as a three-tier structure: substation outgoing feeder → section or branch head switch → boundary switch. This three-level protection ensures that faults are cleared at the closest possible point to the fault location.
When a single-phase ground fault occurs on a user branch, the smart fuse at the user T-node operates locally, isolating the fault without triggering upstream breakers or affecting other customers. This "user fault does not leave the user premises; line fault does not enter the substation" philosophy minimizes outage scope.
4.3 Autonomous Isolation Sequence
The isolation sequence follows a defined logic:
1. Fault detection – The smart fuse detects the single-phase ground fault through zero-sequence and phase-based criteria.
2. Local decision – The onboard processor classifies the fault type and determines whether isolation is warranted.
3. Autonomous operation – The device initiates the opening sequence, isolating the faulted branch.
4. Status reporting – The device transmits fault location, type, and timestamp to the distribution management system.
For permanent faults, the device locks out after a programmed sequence, providing a visible open indication that guides maintenance crews directly to the fault location.
5.1 Transient vs. Permanent Fault Handling
The self-healing capability begins with intelligent discrimination between transient and permanent faults. For transient faults—such as momentary tree contact or animal interference—the smart fuse can allow automatic reclosing to restore supply without human intervention. For permanent faults, the device locks out and initiates the restoration sequence for non-faulted sections.
5.2 Coordination with Feeder Automation
Smart fuses integrate with feeder automation systems to enable coordinated self-healing. When a fault is isolated, the system identifies non-faulted downstream sections and restores power through alternative pathways—typically via normally-open tie switches connecting to adjacent feeders.
This can be achieved through:
· Centralized coordination – The distribution management system receives fault reports, computes optimal restoration paths, and issues switching commands.
· Distributed coordination – Smart devices communicate peer-to-peer using simplified logic (e.g., "communicate only with adjacent terminals") to achieve autonomous restoration.
· Localized coordination – Devices operate based on local voltage and current signatures without communication, using techniques such as voltage-time type automation.
5.3 Performance Metrics
Field implementations have demonstrated significant performance improvements. Fault detection can be achieved in as little as 50ms with false positive rates below 1%. Load recovery rates of 95-99% have been documented in practical deployments. Outage durations, which traditionally stretched from hours to days, can be reduced to minutes or even seconds.

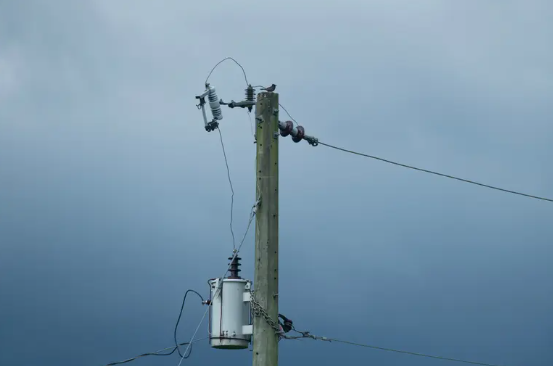

A notable deployment occurred in Quzhou, Zhejiang Province, where the State Grid Quzhou Power Supply Company commissioned the province's first pole-mounted intelligent drop-out fuse on a rural distribution spur line. The device continuously streams critical parameters—line current, contact temperature—and delivers real-time alarms for short-circuits, thermal limits, and fuse operation. This primary-secondary fusion architecture enables pre-fault early warning, rapid fault localization, and post-event root-cause analytics.
Smart fuse-based localized single-phase ground fault isolation and supply self-healing restoration represents a paradigm shift in distribution network protection. By embedding sensing, intelligence, and communication into the venerable drop-out fuse form factor, these devices transform passive protective elements into active grid-edge nodes capable of autonomous fault detection, localized isolation, and coordinated restoration.
The approach delivers three critical benefits:
1. Reduced outage scope – Faults are isolated at the closest possible point, minimizing affected customers.
2. Accelerated restoration – Automated detection and isolation eliminate manual patrol delays.
3. Enhanced resilience – Localized operation ensures functionality even under communication failures.
As distribution networks evolve toward fully automated, self-healing grids, the smart fuse—cost-effective, widely deployable, and increasingly intelligent—will play an indispensable role in delivering the reliability that modern electricity consumers demand.
