Enhancing Distribution Grid Reliability and Safety: The Role of Fully Insulated Shielded separable connector Technology

1. Introduction: The Challenges of Conventional Distribution Systems

Medium-voltage (MV) distribution networks, typically operating between 5kV and 35kV, form the critical backbone of our power infrastructure. For decades, the connection points for switchgear, transformers, and cable branches often relied on separable connectors with exposed live parts. These conventional designs, though simple, are susceptible to several critical issues:

· Safety Hazards: Exposed terminations pose a severe risk of electrical shock to personnel during routine inspections or accidental proximity.

· Environmental Vulnerability: Moisture, dust, salt, and pollutants can lead to tracking, corrosion, and ultimately, insulation failure.

· Partial Discharge (PD): Sharp edges or imperfect interfaces in air-insulated terminations can create high electrical stress, initiating PD—a primary precursor to catastrophic insulation breakdown.

· Limited Reliability: The susceptibility to environmental factors and PD directly translates to a higher probability of unplanned outages, requiring costly and time-consuming repairs.

To address these challenges, the industry has widely adopted Fully Insulated Shielded Separable Connector.

2. What is Fully Insulated Shielded Plug-In Technology?

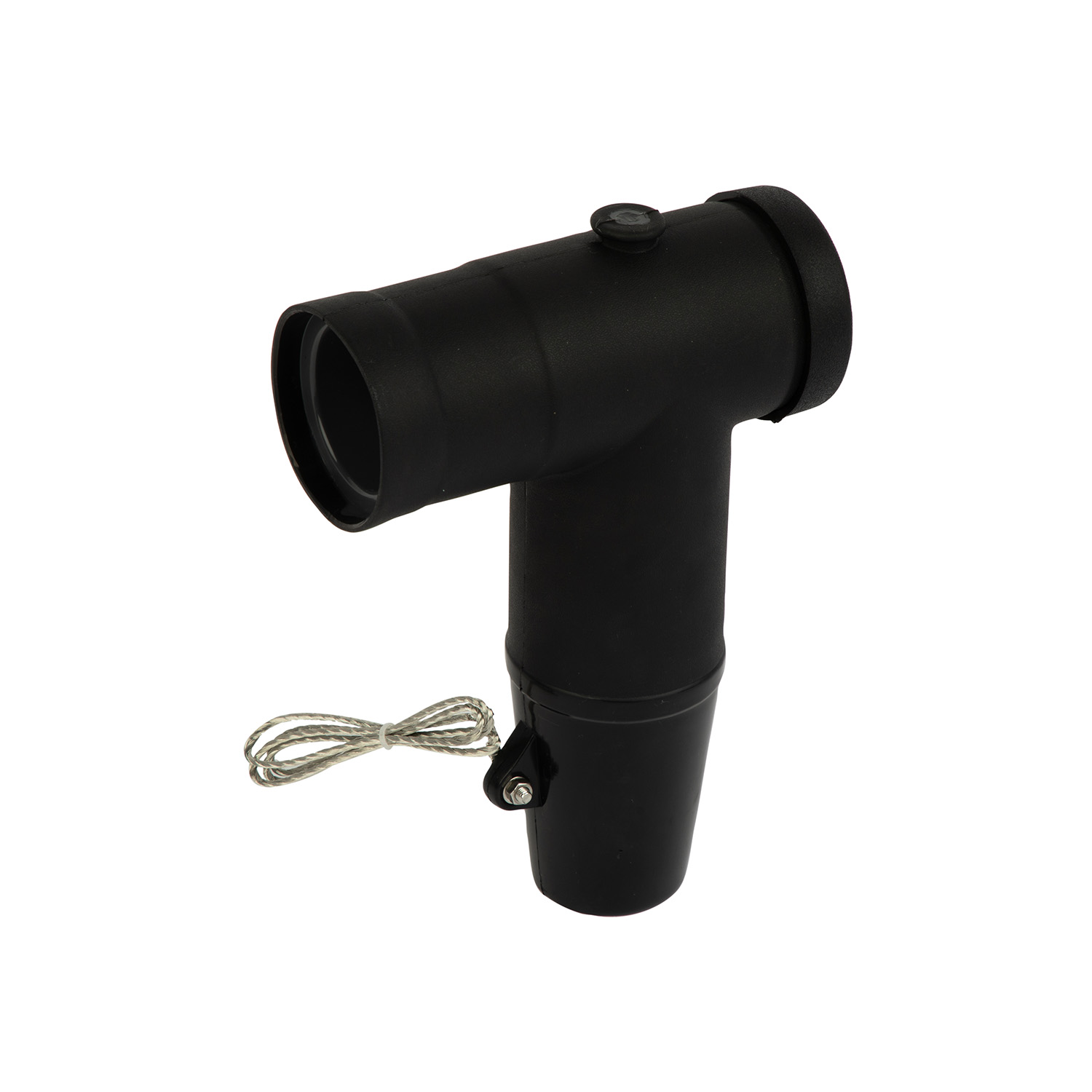

A Fully Insulated Shielded Plug-In System is a pre-engineered, compact assembly designed to safely connect and disconnect medium-voltage cables to equipment like ring main units (RMUs), transformers, and switchgear. Its name defines its core characteristics:

· Fully Insulated: The entire live component, from the cable lug to the equipment interface, is encapsulated within a layer of high-performance insulation material (typically EPDM or silicone rubber). This provides complete isolation from the external environment.

· Shielded: An integrated conductive layer surrounds the primary insulation. This shield performs two vital functions:

 1. Equipotential Bonding: It equalizes the electrical field around the conductor, eliminating concentrations of electrical stress and preventing partial discharge.

 2. Grounding Path: When connected to ground, it safely conducts any leakage or fault currents, ensuring the outer surface is at earth potential.

· Plug-In: The design allows for a simple, "plug-and-play" connection. A male connector (on the cable) engages seamlessly with a female bushing (on the equipment), often with a visual or tactile indicator to confirm correct mating.

This system creates a seamless, factory-tested, and shielded insulation interface that mirrors the properties of the cable itself.

3. Key Benefits: A Direct Path to Higher Reliability and Safety

The adoption of this technology yields direct and measurable improvements in grid performance.

3.1. Enhanced Safety

· Personnel Protection: The full insulation ensures that live parts are completely inaccessible during normal operation. This dramatically reduces the risk of electrical shock, creating a safer working environment for utility crews.

· Touch-Safe Design: The outer surface of the plug-in head is safe to touch even when the system is energized, as the shielding is grounded.

· Contained Failure Mode: In the unlikely event of an internal fault, the robust insulation and shielding contain the failure within the assembly, preventing violent external arc flashes.

3.2. Superior Reliability and Uptime

· Immunity to Environment: By sealing out moisture, salt, and contaminants, the technology prevents corrosion and surface tracking, which are leading causes of failure in exposed systems.

· Elimination of Partial Discharge: The optimized electric field control provided by the shielding system ensures that PD is effectively suppressed throughout the operational lifespan. This significantly extends the service life of the connection point.

· Reduced Maintenance: These systems are designed to be maintenance-free. Unlike air-insulated terminations that require periodic cleaning and inspection, fully insulated plug-in systems drastically reduce the need for intrusive maintenance, lowering lifecycle costs.

3.3. Operational Advantages

· Ease of Installation: The plug-in design simplifies and speeds up installation and reconfiguration of the network. This reduces human error and allows for faster restoration after faults.

· Space Efficiency: The compact design allows for more compact switchgear and substation layouts, saving valuable space.

· Predictable Performance: As a pre-molded, factory-tested component, it offers consistent and predictable performance, unlike field-assembled solutions that can vary in quality.

4. Application Scenarios

This technology is ideally suited for a wide range of applications within the MV distribution network:

· Underground Distribution Systems: Connecting cables to RMUs and pad-mounted transformers.

· Compact Secondary Substations: Where space is limited and reliability is paramount.

· Renewable Energy Connections: Interconnecting solar farms or wind parks to the distribution grid.

· Critical Infrastructure: Ensuring maximum uptime for hospitals, data centers, and industrial plants.

5. Conclusion

The transition from traditional exposed connectors to Fully Insulated Shielded Plug-In Technology represents a significant leap forward in the evolution of distribution grids. It is not merely a component upgrade but a fundamental shift towards a system-level approach to reliability and safety. By effectively mitigating risks associated with environmental exposure, partial discharge, and personnel interaction, this technology provides utilities with a proven solution to enhance grid resilience, reduce total cost of ownership, and ensure a safe, continuous power supply for end-users.
