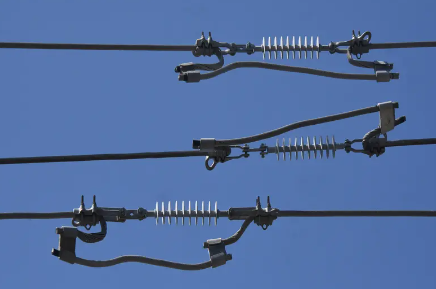

Ultra-High Voltage (AC ≥ 1000 kV, DC ≥ ±800 kV) transmission is the cornerstone of transferring bulk power over thousands of kilometers with minimal losses. Here, composite insulators face unique challenges: exceptionally high mechanical loads (tensile loads exceeding 500 kN), intense electric field stresses that can accelerate material aging, and the need for unprecedented dimensional stability and reliability over decades.
The industry's response has been a multi-faceted evolution:
· Material Science: Advanced cycloaliphatic epoxy resins and high-temperature vulcanized (HTV) silicone rubbers with enhanced tracking and erosion resistance form the bedrock. Nanofillers (e.g., alumina trihydrate, silica) are meticulously engineered into the housing material to drastically improve arc resistance, hydrophobicity transfer, and overall durability.
· Design & Process: Finite Element Analysis (FEA) optimizes the shed profile and core rod (typically pultruded fiberglass epoxy) interface to manage electric field distribution, preventing corona discharge and dry band arcing. Automated, controlled manufacturing processes ensure zero defects in the critical core-housing interface, the insulator's lifeline.
· Mechanical Excellence: The design verification process now includes rigorous long-term mechanical load tests, simulating decades of service under full tension to guarantee resistance to stress corrosion cracking of the fiberglass rod.
Offshore wind farms present perhaps the harshest natural environment for insulation. Combinatorial stresses include:
· Salt Fog & Salt Spray: High chloride deposition continuously challenges hydrophobicity.
· UV Radiation: Intense sunlight accelerates polymer degradation.
· Cyclic Loading: Vibrations from wind and waves induce mechanical fatigue.
· Humidity & Temperature Cycles: Promote moisture ingress.
Adaptations for this environment are distinct:
· Super-Hydrophobic & Erosion-Resistant Housing: Silicone rubber formulations are tailored for maximum hydrophobicity retention and swift recovery. The shed design often incorporates deeper ribs and a smoother profile to minimize salt deposition and facilitate natural washing by rain.
· Corrosion Protection: Every metal fitting (end fittings, flanges) receives upgraded corrosion protection, typically through hot-dip galvanizing followed by additional sealants or advanced coatings like zinc-aluminum alloys. Stainless steel components are increasingly used.
· Enhanced Interface Sealing: Multi-layer sealing systems (e.g., silicone adhesive, mastic, and O-rings) are employed at the critical housing-end fitting junction to create an impregnable barrier against moisture ingress, which is the primary driver of core rod brittle fracture.
In coastal belts, near deserts, or industrial zones (cement, chemical plants), insulators face rapid contamination buildup of conductive substances (salt, cement, industrial dust). Traditional porcelain insulators require frequent, costly cleaning. Composite insulators excel here due to the inherent hydrophobicity of silicone rubber, which prevents the formation of continuous water films.
The evolution for these areas focuses on:
· Hydrophobicity Transfer & Recovery: The unique ability of silicone rubber to migrate low-molecular-weight (LMW) chains to the surface, even over a layer of pollution, recreates a water-repellent surface. Modern formulations optimize this transfer capability and recovery speed after severe wetting.
· Optimized Shed Geometry: Designs with alternating shed diameters and large creepage distance (e.g., 550 mm/kV or more) prevent bridging during heavy fog or light rain. Anti-fog profiles ensure part of the leakage distance remains dry to maintain high electrical resistance.
· Pollution Performance Validation: Insulators for these regions are rigorously tested according to standards like IEC 60507 (solid layer method) or IEC 61245 (salt fog method) for the specific pollution level (e.g., Class IV, Very Heavy).
The adaptation journey continues. The next evolutionary step integrates sensor technology directly into or onto the insulator. Optical fiber sensors embedded in the core rod can continuously monitor mechanical load, temperature, and acoustic emissions indicative of damage. Wireless sensors can track leakage current, humidity, and pollution layer conductivity. This facilitates a shift from time-based to condition-based maintenance, crucial for remote UHV lines and inaccessible offshore assets.
Furthermore, research focuses on self-healing materials, even more UV/erosion-resistant composites, and advanced hydrophobic nano-coatings for legacy assets.
The journey of the composite insulator is a testament to innovation driven by grid challenges. From enabling the technical and economic feasibility of continent-spanning UHV corridors to ensuring the resilient operation of offshore wind farms and polluted-grid infrastructure, its evolution has been targeted and profound. Through continuous advancements in polymer science, mechanical design, corrosion protection, and the emerging integration of smart monitoring, composite insulators are poised to remain the enabling technology for building a stronger, smarter, and more resilient global power grid in the face of increasingly extreme operating environments.
