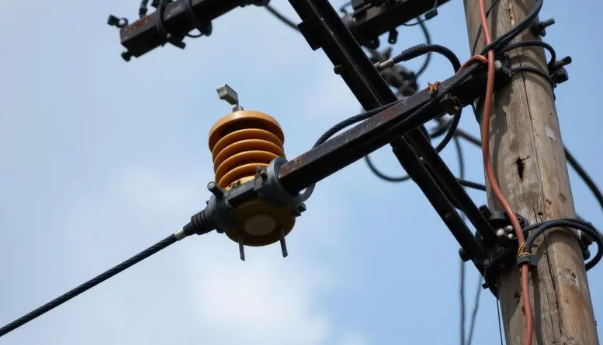

Insulator failures can be attributed to a complex interplay of electrical, mechanical, environmental, and material factors.
1. Flashover and Pollution: This is the predominant cause of external insulation failure. Contaminants such as salt, industrial dust, or cement dust accumulate on the insulator surface. In humid conditions (fog, dew, light rain), these pollutants dissolve to form a conductive layer, leading to leakage current. This current causes dry-band formation, localized heating, and can culminate in a complete flashover—a conductive bridge across the insulator—resulting in a short circuit.
2. Aging and Material Degradation: Over time, insulators experience irreversible material deterioration.
· Ceramic (Porcelain/Glass): Susceptible to "cement growth" from moisture ingress in the pin cavity, causing radial cracks and mechanical failure. Porcelain can also suffer from thermal shock and deep, weakening cracks.
· Composite (Polymer/Silicone Rubber): Subject to chemical aging from UV radiation, ozone, and thermal cycling. Hydrophobicity loss, tracking, erosion, and brittle fracture are key failure modes, often accelerated by electrical activity (corona, arcing).
3. Mechanical Failure: Excessive mechanical loads from wind, ice accumulation, or conductor vibration can exceed the insulator's specified mechanical failing load (SML). Manufacturing defects, internal cracks, or corrosion of metal fittings (ball, socket, pin) can also lead to catastrophic mechanical separation.
4. Vandalism and Physical Damage: Direct impact from gunshots, thrown objects, or construction activities can cause immediate fracture or create damage paths leading to future failure.
A systematic forensic approach is crucial to determine the root cause and inform preventive actions.
· Visual and Microscopic Inspection: The first step involves detailed examination for signs of arcing, surface erosion, cracking, fracture origins, and fitting corrosion. Stereo microscopes and scanning electron microscopes (SEM) are used to analyze fracture surfaces and material morphology.
· Electrical Testing: Measurements of leakage current under controlled wet conditions can assess pollution severity. Dielectric withstand tests help verify the remaining electrical strength after a suspected event.
· Material and Chemical Analysis: Techniques like Fourier-Transform Infrared Spectroscopy (FTIR) and Energy-Dispersive X-ray Spectroscopy (EDX) identify polymer degradation, loss of fillers, or the nature of contaminant layers.
· Mechanical Load Testing: Tensile tests on failed units or sampling from in-service batches determine if mechanical strength has degraded below acceptable limits.Integrated Prevention and Mitigation Strategies
Enhancing insulator reliability requires a holistic, lifecycle-oriented approach combining design, monitoring, and maintenance.
1. Material and Design Selection:
· Right Insulator for the Environment: Select creepage distance, material, and profile based on local pollution severity (as per IEC 60815). Use anti-fog designs for heavily polluted areas.
· Advantage of Composite Insulators: Leverage their inherent hydrophobicity, light weight, high vandal resistance, and excellent pollution performance. Ensure quality manufacturing to prevent core brittleness and interface problems.
· Enhanced Fittings: Use corrosion-resistant coatings (galvanization, hot-dip galvanizing) and proper sealing systems to prevent moisture ingress.
2. Condition Monitoring and Diagnostics:
· Leakage Current Monitoring: Online sensors track leakage current patterns, providing early warning of pollution build-up and pre-flashover activity.
· Visual Inspection Technologies: Employ drones (UAVs) equipped with high-resolution and thermal cameras for safe, efficient, and detailed inspections of hard-to-reach insulators. Thermal imaging can spot abnormal heating from defective components or high-resistance connections.
· Hydrophobicity Assessment: For composite insulators, contact angle measurement or spray method tests (HC classification per IEC 62073) gauge the state of the silicone rubber surface.
3. Proactive Maintenance Interventions:
· Regular Cleaning: Schedule washing (high-pressure water, hot water) or manual cleaning based on pollution monitoring data and criticality.
· Application of Coatings: Apply silicone-based or fluoropolymer-based grease or RTV (Room Temperature Vulcanizing) silicone coatings to existing ceramic insulators to restore hydrophobicity and improve pollution performance.
· Replacement Programs: Proactively replace aged or degraded insulator strings, especially those in critical corridors or showing advanced signs of material aging.
The future of insulator management lies in data-driven intelligence. Integrating data from IoT sensors, drones, and inspection records into Geographic Information Systems (GIS) and Asset Management Platforms allows for predictive analytics. Machine learning algorithms can analyze historical failure data, weather patterns, and real-time monitoring feeds to predict failure risks and optimize maintenance schedules, transitioning from time-based to condition-based and predictive maintenance strategies.
Insulator failure is a multi-faceted challenge that directly impacts power system resilience. A deep understanding of failure mechanisms, coupled with advanced diagnostic tools and an integrated prevention strategy encompassing proper selection, continuous monitoring, and proactive maintenance, is essential for grid operators. By adopting these technical considerations and leveraging emerging technologies for data analysis, utilities can significantly reduce insulator-related outages, enhance operational safety, and improve the overall reliability and efficiency of the electrical power infrastructure. The move towards intelligent, predictive management of insulator fleets represents a key step in building the smarter, more robust grids of the future.
