Technical Guide: Surge Arrester Selection – Polymer Housed vs. Porcelain Housed

Introduction

Surge arresters, the guardians of electrical equipment against lightning and switching overvoltages, have evolved significantly in their external housing technology. While traditional porcelain-housed arresters have decades of proven service, polymer-housed (or composite-housed) arresters have become the dominant choice in many new installations over the past 25 years. The selection is no longer merely a matter of tradition but a technical and economic evaluation. This guide delves into a point-by-point comparison to clarify the advantages and limitations of each type.

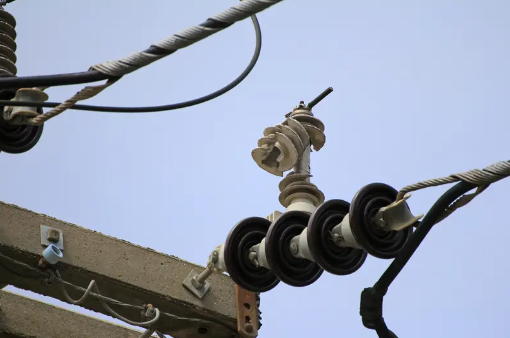

1. Reliability & Performance

This is the foremost consideration for any utility or industrial operator.

· Porcelain Housed Arresters:

 · Strengths: Porcelain offers exceptional long-term stability under UV radiation and high temperatures. Its mechanical rigidity is high, and the material itself is inert and non-flammable. The primary failure mode is often catastrophic – a puncture causing the porcelain to shatter ("explode"). While this is a significant safety hazard, it provides a highly visible, unambiguous indication of failure.

 · Weaknesses: The brittle nature of porcelain makes it highly susceptible to damage from impact, vandalism, or shipping. Sealing at the metal-to-porcelain interfaces is critical and can be a point of long-term weakness, potentially leading to moisture ingress and internal failure. The "explosive" failure mode poses risks to personnel and nearby equipment.

· Polymer Housed Arresters:

 · Strengths: The composite housing, typically silicone rubber, is lightweight, flexible, and highly resistant to impact and vandalism. It features superior sealing (often through molding or encapsulation), virtually eliminating moisture ingress. In the rare event of an internal failure, the housing typically ruptures in a non-violent, controlled manner, significantly enhancing safety. Their lighter weight reduces stress on mounting structures.

 · Weaknesses: Long-term performance is heavily dependent on the quality of the polymer formulation. Inferior materials can suffer from tracking, erosion, or brittleness due to UV degradation and pollution. High-quality silicone rubber is essential to maintain hydrophobicity—the property that causes water to bead up and roll off, preventing leakage current—especially in contaminated environments.

2. Cost Analysis: Beyond the Purchase Price

A true comparison must consider the Total Lifecycle Cost.

· Initial Purchase & Installation Cost: Polymer arresters are generally competitive or slightly lower in price. Their significant advantage lies in installation: they are up to 50% lighter, requiring less robust support structures and simpler, faster handling. This reduces labor and material costs for poles or substation frames.

· Maintenance & Operational Cost: Polymer arresters, with their superior contamination performance and self-cleaning hydrophobicity, often require less frequent cleaning in polluted or coastal areas. Their non-fragile nature minimizes costs related to damage during transport or maintenance. Porcelain units may require more scheduled washing or inspection in harsh environments.

· Failure & Replacement Cost: The potential cost of collateral damage from a porcelain arrester failure (damage to adjacent equipment, fire risk, cleanup) can be substantial. The safer failure mode of polymer units mitigates this risk. Furthermore, the longer service life projected for high-quality polymer designs can extend replacement cycles.

3. Environmental & Application Suitability

The operating environment is the decisive factor in many cases.

· Ideal for Polymer Housed Arresters:

 · Coastal & Highly Polluted Areas: Hydrophobicity transfer and recovery make silicone rubber ideal for resisting salt fog and industrial contaminants.

 · Areas with High Vandalism or Risk of Impact: Their resistance to cracking from thrown objects or accidental contact is superior.

 · Seismic Zones & Mobile Substations: Light weight and high flexibility provide excellent resistance to seismic activity and vibration during transport.

 · Weight-Sensitive Applications: Such as on aged wooden poles or in compact substations.

 · Aesthetic or Space-Constrained Sites: The design can be more compact and is often considered less visually intrusive.

· Where Porcelain Housed Arresters Remain a Valid Choice:

 · Extremely High Ambient Temperatures: Certain ceramic materials can, in some designs, offer a margin in continuous high-temperature service (>80°C ambient).

 · High-Radiation Environments: Porcelain is inherently more resistant to certain types of radiation degradation.

 · Legacy Systems & Standardization: Utilities with vast existing porcelain fleets and established maintenance procedures may opt for consistency.

 · Regions with Intense UV and Low Pollution: Where the long-term UV stability of porcelain is an asset and the self-cleaning property of polymer is less critical.

Conclusion and Selection Guidelines

The technological trend unequivocally favors polymer-housed metal-oxide surge arresters for the majority of modern applications. Their advantages in safety (non-violent failure), lifecycle cost (easier installation, lower maintenance), and performance in contaminated environments are compelling.
