Real-Time Insight: How Our Next-Generation High-Voltage Surge Arrester Mitigates Overvoltage Risk to Near-Zero

Introduction: The Ever-Present Threat of Overvoltage

Lightning strikes, switching operations, and power system faults can generate transient overvoltages that far exceed the dielectric strength of electrical equipment. For decades, surge arresters have served as the first line of defense. However, the industry goal has evolved from simply "diverting" surges to completely neutralizing the risk they pose. This article provides a real-time look at how our next-generation design achieves this goal of near-zero risk.

Core Technology: The Heart of the Matter – Advanced Metal-Oxide Varistors (MOVs)

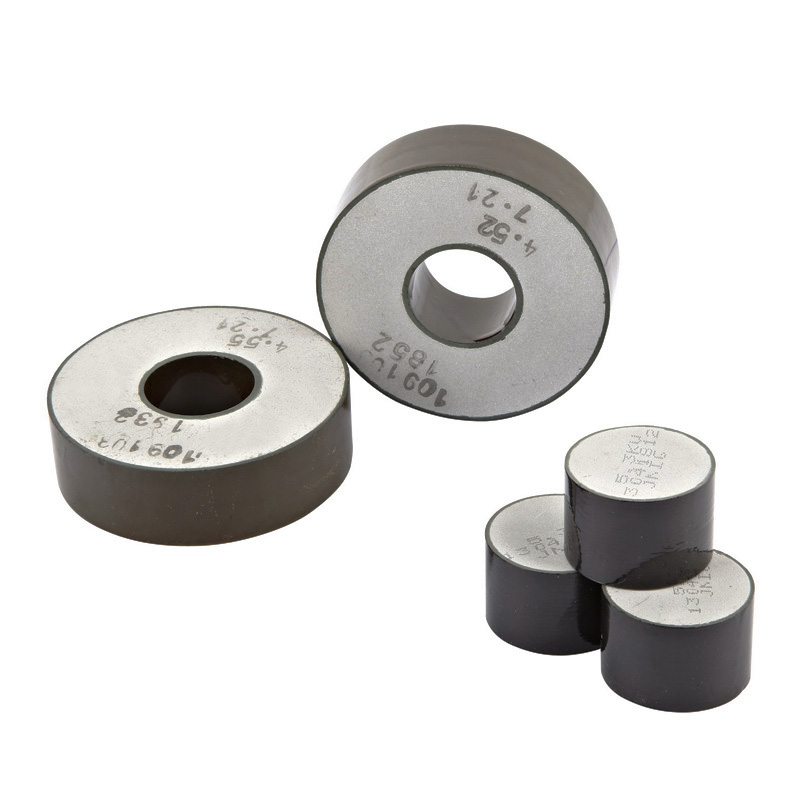

The cornerstone of our arrester's performance is a precisely engineered block of Zinc-Oxide (ZnO) grains. Unlike traditional silicon carbide, our MOV discs offer an exceptionally non-linear voltage-current characteristic.

· Ultra-Fast Response: The transition from a high-impedance state (insulator) to a high-conductivity state (conductor) occurs in nanoseconds, far faster than the rise time of most transient surges. This ensures the surge is clipped before it can propagate and damage downstream equipment.

· High Energy Absorption Capacity: Our proprietary formulation and sintering process create a denser, more uniform granular structure. This allows each disc to absorb significantly more joule energy (e.g., 4-5 kJ/kV rated voltage) without degradation, effectively handling even the most severe and prolonged surge events.

· Stable Performance Over Time: Advanced doping elements ensure minimal "ageing" or performance shift under continuous operating voltage, a critical factor for long-term reliability.

Multi-Faceted Risk Mitigation: A Systems Engineering Approach

Achieving "near-zero" risk requires more than just a superior MOV; it demands a holistic design that addresses all potential failure modes.

1. Superior Sealing and Thermal Management

Moisture ingress is the primary cause of arrester failure.Our design features:

· Triple-Sealing System: A combination of laser-welded aluminum diaphragms, high-grade O-rings, and inert gas filling creates a hermetic seal, guaranteeing a lifetime of protection against humidity and contaminants.

· Optimized Heat Dissipation: The polymer housing is not just for light weight and pollution resistance. Its finned design maximizes surface area, facilitating efficient cooling under continuous operation and after a surge event. This prevents thermal runaway—a common failure mechanism where heat buildup causes the MOV to degrade catastrophically.

2. The "Digital Shield": Integrated Smart Monitoring

You cannot manage what you don't measure.Our optional Integrated Monitoring Terminal (IMT) transforms the arrester from a passive component into an active network asset.

· Leakage Current Analysis: The IMT continuously analyzes the resistive component of the leakage current, a key indicator of MOV ageing and health.

· Surge Event Counter: It logs the magnitude, date, and time of every significant discharge event.

· Real-Time Alerting: Data can be transmitted via IoT protocols, providing grid operators with real-time insights into the arrester's status and the stress levels on their network, enabling predictive maintenance.

3. Coordinated Protection Design

An arrester does not operate in a vacuum.Our technical support includes system-level studies to ensure optimal protection coordination. By carefully selecting the arrester's rated voltage and protective level relative to the BIL (Basic Insulation Level) of protected equipment, we create a "protection zone" where overvoltage is guaranteed to be limited to a safe value.

Case in Point: Real-World Performance Data

In a recent installation at a windy coastal substation, a bank of our arresters experienced a direct lightning strike. The event data, retrieved from the IMT, showed:

· Surge Current: 25 kA, 8/20 µs waveform.

· Residual Voltage: Successfully limited to a level 25% below the transformer's BIL.

· Post-Event Status: Leakage current readings returned to pre-surge baselines, confirming no degradation. The asset remained in service without any requirement for immediate inspection.

This demonstrates the transition from hoping the arrester worked to having verifiable, data-driven proof that it performed flawlessly.

Conclusion: Redefining the Standard of Protection

The question of reducing overvoltage risk to near-zero is answered not by a single miracle component, but through a synergistic approach:

· Advanced Materials Science in the MOV core.

· Robust Mechanical and Thermal Design for environmental endurance.

· Digital Intelligence for actionable insights and predictive capabilities.

By integrating these three pillars, our next-generation high-voltage surge arresters move beyond mere protection. They become a foundational element for building a more resilient, observable, and reliable smart grid.
