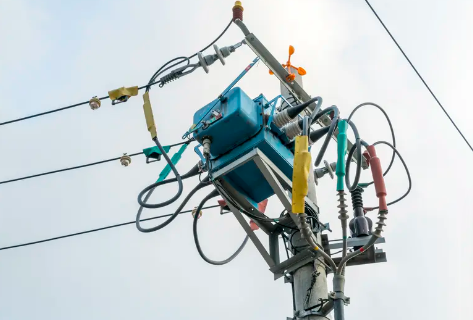

High-voltage cable systems form the backbone of modern electrical infrastructure. While the cable body itself is robust, its terminations—the interfaces connecting the cable to transformers, switchgear, or overhead lines—represent a pronounced weak link. Statistics indicate a disproportionately high failure rate in terminations compared to cable sections. These failures rarely occur spontaneously; they are the culmination of progressive insulation degradation, frequently initiated and marked by Partial Discharge (PD) activity. Understanding the defect origins and deploying effective online monitoring is therefore paramount for asset management.
Defects in cable terminations create localized regions of high electric stress, exceeding the dielectric strength of the insulation, leading to PD. The primary defect sources are:
· Insulation Material Degradation: Silicone rubber or ethylene-propylene-diene monomer (EPDM) used in outdoor terminations are subject to environmental aging. Tracking and Erosion due to pollution, moisture, and UV exposure create conductive paths on the surface, distorting the electric field. Internal Voids or Impurities introduced during manufacturing act as PD sites, gradually carbonizing and eroding solid insulation from within.
· Interface Problems: The interfaces between different dielectric materials (e.g., cable insulation, stress cone, silicone rubber sheds) are critical. Poor Workmanship during installation—such as inadequate cleaning, improper application of conductive/grease, or air pockets—creates microscopic voids or delaminations. These interfaces have a lower breakdown strength, and any contamination or air gap becomes a prime location for intense PD activity.
· Stress Control System Failure: The stress cone or geometric stress control system is designed to smoothly grade the electric field. Defects in its semiconductive layer, improper positioning, or degradation over time can cause field intensification at its edges. This leads to concentrated surface discharges or internal PD, rapidly accelerating insulation failure.
· Poor Sealing and Moisture Ingress: The seal at the termination-cable junction is vital. A compromised seal allows moisture intrusion, which drastically reduces the dielectric strength of most insulating materials. Moisture also leads to dendritic water treeing within polymers and promotes surface tracking, both potent sources of PD.
· Connector and Semicon Layer Defects: Poor crimping of the conductor connector results in a high-resistance contact, leading to localized overheating, thermal degradation of adjacent insulation, and associated PD. Damages or irregularities in the cable's own semiconductor screen can also cause severe field distortion at the termination point.
Detecting the incipient PD activity caused by these defects is the goal of online monitoring, enabling intervention before catastrophic failure. Modern techniques are non-intrusive and can be deployed continuously:
· Ultra-High-Frequency (UHF) Sensing: This is the most prominent technique for GIS-connected or indoor terminations. PD pulses emit electromagnetic waves in the UHF band (300 MHz – 3 GHz). UHF sensors (couplers) installed on grounding straps or test points capture these signals, offering excellent sensitivity and strong immunity to lower-frequency ambient electrical noise.
· Acoustic Emission (AE) Sensing: PD events generate minute pressure waves (acoustic signals). AE sensors mounted on the termination's housing can detect these ultrasonic emissions. This method is effective for detecting surface discharges and is inherently immune to electromagnetic interference. However, its range is limited, and signal attenuation in composite materials can be high.
· Transient Earth Voltage (TEV) Sensing: When PD occurs inside a metallic enclosure, charge movement induces a transient voltage on the outer surface. TEV sensors, placed on the termination's grounded metal parts (e.g., flange), detect this voltage. It is a simple, contact-based method but can be less specific in noisy environments.
· High-Frequency Current Transformer (HFCT) Sensing: An HFCT sensor clamped around the termination's grounding cable measures the high-frequency current pulses from PD activity flowing to earth. It is highly sensitive, relatively easy to install, and effective for most termination types.
· Dielectric Loss Factor (Tan δ) and Capacitance Monitoring: While not a direct PD measurement, online monitoring of the termination's dielectric loss tangent and capacitance can indicate bulk insulation degradation, moisture ingress, or significant aging trends that accompany PD activity.
The true power of online monitoring lies in integration and analysis. A modern system often employs multiple complementary sensors (e.g., UHF + AE). Advanced analytics, including phase-resolved partial discharge (PRPD) pattern analysis, machine learning algorithms, and trend monitoring, are used to:
· Distinguish true PD from electrical noise.
· Identify the probable defect type (e.g., void discharge vs. surface tracking).
· Assess the severity and rate of degradation to prioritize maintenance.
The integrity of high-voltage cable terminations is non-negotiable for grid security. Failures predominantly stem from well-understood material, interfacial, and workmanship defects that manifest as persistent partial discharge. By deploying a strategic combination of UHF, AE, and HFCT online monitoring technologies, utilities can transition from reactive to predictive maintenance paradigms. The future lies in the integration of these systems with IoT platforms and AI-driven diagnostics, enabling not just detection but automated prognosis and smart grid self-healing capabilities. Continuous investment in these technologies is essential for safeguarding the resilience of our critical power infrastructure.
