The shift from DC1500V to DC2000V and even DC3000V in photovoltaic (PV) and energy storage systems is a key trend for improving efficiency and reducing levelized cost of energy (LCOE) . While higher voltages reduce cable losses, they introduce severe technical hurdles for disconnectors, primarily due to the nature of direct current. Unlike AC, DC has no natural zero-crossing point, making arc extinction extremely difficult.
Special Requirements:
· Superior Arc Extinguishing Capability: Disconnectors in DC applications must forcibly extinguish arcs. This requires robust arc chutes, often utilizing magnetic blowing or multi-chamber structures to stretch and cool the arc until it extinguishes .
· High Insulation and Dielectric Strength: Operating at DC1500V and above demands materials and designs that prevent electrical tracking and withstand high potential differences, especially after arc events.
· Compact and Modular Design: Space is at a premium in prefabricated PV and energy storage containers. Bulky four-pole series-connected AC breakers are no longer viable. Dedicated two-pole designs with high power density are essential .
Key Innovations:
Recent innovations focus on modular arc-quenching units and physically isolated chambers. For instance, advanced DC disconnectors now feature completely independent sealed chambers for the main contacts and the arcing contacts. This design physically prevents arc plasma or ionized gases from reaching the main contacts during interruption, eliminating a major cause of failure. Furthermore, the introduction of field-replaceable arc units drastically reduces maintenance downtime. Instead of replacing the entire switch, operators can quickly swap out a worn arc unit, minimizing system outage and operational costs .
Additionally, for large-scale PV plants, integration with remote monitoring (SCADA) and enhanced environmental sealing (e.g., IP54 to IP67) are becoming standard to withstand outdoor conditions from deserts to offshore platforms .

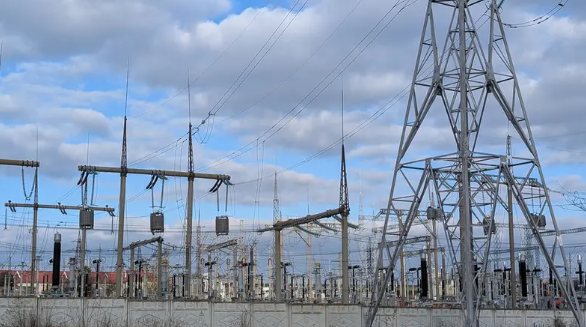

The expansion of Ultra-High Voltage (UHV) AC/DC transmission projects, such as the ±800 kV HVDC lines and the "West-to-East Power Transmission" projects, places disconnectors at the heart of grid reliability. In these applications, disconnectors are not just for safety during maintenance but also play a role in reconfiguring complex grid topologies.
Special Requirements:
· High Continuous Current Carrying Capacity: UHV stations require disconnectors to handle currents up to 6300A without excessive temperature rise. This demands innovative conductive path designs, such as using multiple parallel conductive rods to reduce resistance and improve heat dissipation .
· Very Fast Transient Overvoltage (VFTO) Suppression: In Gas-Insulated Switchgear (GIS), the operation of a disconnector can generate VFTO, which poses a threat to transformer insulation, especially in offshore wind and converter stations. Special damping resistors or optimized operating mechanisms are needed to mitigate this .
· Environmental Adaptability: Equipment in regions like the Middle East or Africa requires resistance to sandstorms (with high creepage distances), while offshore platforms demand C5-M anti-corrosion coatings and IP68 protection .
Key Innovations:
The industry is moving towards intelligent disconnectors equipped with IoT sensors for predictive maintenance. By monitoring mechanical vibration, contact wear, and insulation status, these devices can predict failures before they occur, reducing maintenance costs by up to 30% . For environmental compliance, there is a strong push to replace SF6 gas in insulating columns with eco-friendly alternatives like C5-PFK mixtures or dry air, particularly in Europe .
The high penetration of renewables introduces volatility and intermittency. To maintain grid stability, systems need to react faster. This has led to the development of fast-switching devices capable of rapid load transfer, fault current limiting, and fast busbar changeovers.
Special Requirements:
· Rapid Operation Speed: Traditional disconnectors can be slow, but new applications require operation times in milliseconds to support fast protection schemes .
· Integration with Power Electronics: In scenarios like fast power transfer or thyristor-based fault current limiters, the disconnector must act in concert with power electronics to commutate current or isolate faulty sections quickly.
· High Mechanical and Electrical Endurance: Frequent operations in applications like fast bus-couplers require a mechanical life far exceeding traditional disconnectors, demanding robust operating mechanisms .
Key Innovations:
Fast vacuum circuit breakers and hybrid switches are emerging. These combine the isolation capability of a disconnector with the interrupting speed of a circuit breaker. Technologies like fast transfer switches utilize power electronics for ultra-fast commutation, with a mechanical bypass disconnector providing a steady-state, low-loss current path. This hybrid approach ensures both speed and efficiency. Products tested for M2 class mechanical endurance (10,000 operations) are becoming essential for these demanding applications .
The disconnector has transformed from a passive safety device into an active, intelligent enabler of the New-Type Power System. In renewable plants, the focus is on high-voltage DC interruption and modular maintainability. In transmission, it is about ultra-high current capacity, VFTO suppression, and environmental sustainability. For fast-switching applications, speed and operational endurance are paramount.
As the grid continues to evolve with more distributed generation and power electronic interfaces, the humble disconnector will continue its trajectory toward higher intelligence, greater specialization, and enhanced performance, ensuring that the backbone of our power infrastructure remains safe, reliable, and ready for the future.
