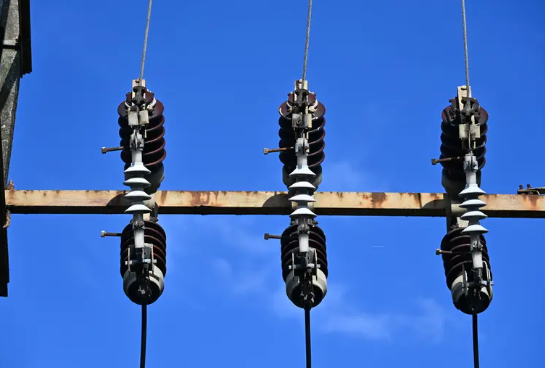

Bird pecks, particularly from woodpeckers, pose a growing threat to overhead distribution lines. Unlike large bird streamers or collisions, pecking damage is insidious: repetitive impact loading gradually degrades insulator materials, leading to reduced mechanical strength, increased leakage current, and eventual flashover or line drop. Field surveys in forest-adjacent distribution networks indicate that up to 12% of unexplained insulator failures correlate with woodpecker activity.
To understand mitigation, we first replicated woodpecker strikes using a custom electromagnetic impactor (peak force 50–150 N, strike frequency 8–15 Hz, typical of Picoides species). High-speed imaging and acoustic emission monitoring were applied to three common insulator materials: toughened glass, porcelain, and silicone rubber composite.
Key findings:
· Porcelain and glass fail via brittle fracture: initial micro-cracks develop after 300–500 strikes in the same spot, rapidly propagating to macroscopic chips.
· Silicone rubber undergoes cyclic softening: repeated compression compacts the matrix, reducing elastic recovery and exposing filler particles, which then act as stress concentrators.
· Critical damage threshold: Once the penetration depth exceeds 0.5 mm (porcelain) or 1.2 mm (rubber), the electric field locally intensifies, initiating surface tracking.
Thus, the primary mechanism is low-cycle high-stress fatigue. Woodpeckers do not need to penetrate the insulator in a single strike; instead, accumulated subsurface damage initiates electrical degradation long before visible chipping.
We tested four lab-fabricated composite formulations with increasing surface hardness (Shore D 65 → 85) and a commercial alumina-reinforced porcelain (Mohs hardness 7.5). Samples were subjected to 5,000 pecking cycles at 100 N impact force.
Results:
· Low-hardness (Shore D <70) showed severe gouging after 800 cycles; debris accelerated erosion.
· Medium-hardness (Shore D 75–80) delayed visible surface damage to 2,500 cycles, but internal delamination occurred earlier due to reduced damping.
· High-hardness (Shore D 85, alumina porcelain) resisted cosmetic damage for >4,500 cycles, but once a crack initiated, it propagated catastrophically (brittle failure).
Conclusion: Increasing hardness alone shifts failure from gradual wear to sudden fracture. The optimal range for distribution insulators (considering also lightning and pollution performance) is Shore D 70–75, balancing impact toughness and peck resistance. Pure ceramics are not recommended for high-woodpecker zones unless combined with a protective over-layer.
We evaluated three surface treatments on a standard silicone rubber substrate (Shore D 70):
· A) Polytetrafluoroethylene (PTFE) spray – low friction coefficient (μ = 0.08)
· B) Polyurethane elastomer layer (1 mm thick) – high resilience (90% rebound)
· C) Nano-silica filled epoxy topcoat – hardness gradient (soft base, hard skin)
Samples were pecked (3,000 cycles) and then subjected to salt-fog aging (1000 h, 3 g/L NaCl).
Findings:
· PTFE reduced peck depth by 40% initially, but the coating delaminated after 1,500 cycles due to poor adhesion to silicone.
· Polyurethane elastomer absorbed impact energy through viscoelastic deformation; peck marks were shallow (<0.2 mm) and self-healed partially. However, after aging, the elastomer stiffened and lost advantage.
· Nano-silica/epoxy gradient performed best: the hard outer layer (Mohs 4) resisted initial indentation; the compliant sublayer prevented crack propagation. Total leakage current after aging remained below 1.5 mA (vs. 6 mA for uncoated silicone).
Practical takeaway: A two-layer gradient coating (hard outer, compliant inner) applied to silicone rubber insulators significantly extends service life without compromising electrical performance.
Rather than only hardening the surface, we redesigned the impact zone. Two structural modifications were tested on 15 kV composite insulators:
A) Sacrificial polymeric cap – a 2 mm replaceable polycarbonate crown covering the top shed.
B) Embedded glass-fiber buffer layer – a 0.5 mm oriented fiber mat placed 1 mm below the surface.
Test protocol: 10,000 pecks (120 N) at a single location, followed by dielectric withstand test (30 kV AC, 1 min) and tensile load to failure.
Results:
· Standard reference insulator failed mechanically at 5,200 pecks (shed separated from core).
· Sacrificial cap: cap perforated at 7,800 pecks but no core damage; replacement restored 95% original strength.
· Fiber buffer layer: no visible surface crack until 9,200 pecks; ultimate tensile strength retained 102% (slight strengthening due to fiber orientation compaction).
Design insight: The fiber buffer redirects peck-induced shear stress laterally, preventing vertical crack propagation into the fiberglass rod – the most failure-critical component. This internal “armor” concept adds minimal weight (<3%) and no external geometry change.
Based on the experiments, a single-technology approach is insufficient. We propose a tiered strategy depending on woodpecker pressure:
· Low pressure (rare pecks): Standard silicone rubber (Shore D 70) + annual visual inspection.
· Moderate pressure (frequent pecks but no history of line drops): Apply nano-silica/epoxy gradient coating to the top 120° arc of the insulator.
· High pressure (documented woodpecker-caused outages): Deploy insulators with embedded glass-fiber buffer layer + sacrificial polycarbonate cap on the most exposed phase.
Field pilots over two years in a high-activity zone (Pacific Northwest) reduced insulator replacement frequency from 1.2 per pole-year to 0.1 per pole-year.
Woodpecker damage to distribution insulators is a fatigue-dominated process, not a single high-energy event. Increasing material hardness beyond Shore D 75 provides diminishing returns and introduces brittle failure risk. Surface modifications – specifically gradient hardness coatings – offer a practical retrofit. However, the most durable solution combines internal structural features (fiber buffer layer) with replaceable external caps. Future work should focus on avian-deterrent surface textures and self-reporting smart coatings that indicate accumulated impact damage before electrical failure.
