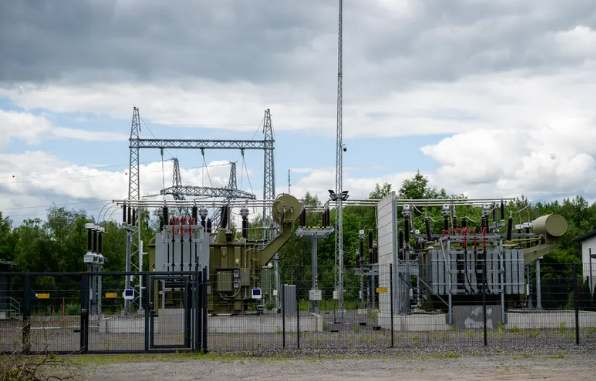

From Traditional Grid to Distributed Energy: Application and Safety Isolation of Load Break Switches in PV and Storage Systems

Application in Photovoltaic Systems

PV systems generate direct current (DC), which is converted to alternating current (AC) by inverters. Electrical safety must be addressed on both sides of the inverter.

· DC-Side Isolation: The PV array can generate hazardous voltages whenever exposed to light. Before any maintenance on inverters, combiners, or the array itself, a complete and visible isolation point is mandatory. DC load break switches, often integrated into combiner boxes or as standalone units, are used to safely interrupt the load current from strings or the entire array under operating conditions. They provide a reliable isolation gap, ensuring no voltage is present downstream, which is a critical safety lockout/tagout (LOTO) point for technicians. Advanced DC switches are rated for the high DC voltages (up to 1500V) common in modern systems and are designed to safely interrupt DC arc, which is more stable and harder to quench than AC arc.

· AC-Side Connection: On the inverter's output, an AC load break switch is typically installed between the inverter and the main distribution board or the point of common coupling (PCC). This switch allows for the safe disconnection of the entire PV system from the local AC network for maintenance or in case of emergencies. It ensures that the inverter can be isolated from both the grid and the household or facility loads.

Application in Battery Energy Storage Systems

BESS, whether DC-coupled or AC-coupled, present similar but intensified safety challenges due to the immense energy stored and the bidirectional power flow.

· Core Isolation Function: An LBS serves as the primary manual disconnect for the storage system. It allows operators to de-energize the battery bank from the rest of the system (inverter, hybrid inverter, or AC bus) for servicing or during emergencies like thermal events. This isolation is vital for firefighter safety and system integrity.

· Managing Bidirectional Flow: Unlike a simple disconnect, an LBS in a BESS must be rated for interrupting current flowing in both directions—during charging (grid/ PV to battery) and discharging (battery to load/grid). Its design must account for this bidirectional duty cycle.

· System Segmentation: In larger containerized or commercial storage systems, multiple LBS units might be used to isolate individual battery racks, power conversion systems (PCS), or different DC/AC sections. This segmentation enhances safety by limiting the scope of work on live equipment and facilitates easier troubleshooting.

Safety Isolation: The Paramount Principle

The role of the LBS transcends mere functionality; it is a cornerstone of personnel and system safety. Its core safety functions include:

1. Creating a Visible Air Gap: It provides a physically visible break in the circuit, confirming isolation—a fundamental requirement for safe work practices (LOTO procedures).

2. Withstanding and Interrupting Faults: While not a replacement for overcurrent protective devices like fuses or circuit breakers, a properly rated LBS must be able to close onto a fault and withstand fault currents until upstream protection clears it. It must also safely interrupt rated load currents, including challenging DC and bidirectional currents.

3. Preventing Unintended Islanding: During grid outages, proper isolation via switches (often in conjunction with inverters) prevents the DER from energizing ("islanding") a section of the grid, protecting utility line workers.

4. Compliance with Standards: The application, rating, and installation of LBS in PV and BESS are governed by stringent international and national standards (e.g., IEC, UL, NEC). These standards define requirements for voltage/current ratings, DC arc interruption, endurance, and environmental resilience.

Conclusion

As distributed energy resources become ubiquitous, robust and thoughtfully applied switching and isolation technology is non-negotiable. The disconnect Switch, often an unsung component, plays a pivotal role in the safe and reliable integration of PV and storage systems. It bridges the gap between the dynamic needs of modern, bidirectional power flow and the timeless imperative of electrical safety. For system integrators, installers, and operators, selecting the correctly rated LBS—for DC or AC, voltage level, current, and interrupting capacity—and installing it for clear, accessible isolation is not just a technical specification; it is a fundamental commitment to safety in the new energy era. The evolution from a passive grid to an active, participant-driven network demands that every component, especially those ensuring safety, evolves in capability and application.
