Lightning strikes represent one of the most significant threats to transmission line reliability and operational continuity worldwide. A single direct strike can generate impulse currents exceeding 200 kA, producing transient overvoltages that can cause flashovers, insulator damage, and prolonged outages. Traditional protection methods, including overhead ground wires and improved grounding, while effective for certain failure modes, often prove insufficient against backflashovers and shielding failures, particularly in regions with high soil resistivity or severe lightning activity.
Transmission line arresters (TLAs) have emerged as a critical technological solution, providing direct shunt protection for insulators by limiting lightning-induced overvoltages to values below the insulator's withstand capability. Unlike substation arresters designed primarily for switching surges and temporary overvoltages, TLAs are optimized for the unique challenges of lightning protection on overhead lines, combining robust energy handling capabilities with lightweight designs suitable for installation directly on transmission conductors.
Modern transmission line arresters utilize zinc oxide (ZnO) varistor blocks as their core protective elements. These ceramic semiconductor devices exhibit highly nonlinear voltage-current characteristics, behaving as insulators under normal operating voltage but transitioning to conductive state within nanoseconds when subjected to overvoltages. The unique polycrystalline structure of ZnO grains separated by bismuth oxide intergranular layers creates potential barriers that break downat predetermined field strengths.
The nonlinear coefficient α of ZnO varistors typically ranges from 30 to 50, far exceeding the α=4-8 of traditional silicon carbide devices. This exceptional nonlinearity ensures that:
· Leakage current remains below 1 mA during normal operation
· Clamping voltage remains nearly constant across a wide current range (100 A to 100 kA)
· Fast thermal recovery after impulse discharge
The protective performance of TLAs is defined by their V-I characteristics curve, which can be mathematically represented as:
I = k × V^α
Where:
· I = discharge current
· V = residual voltage
· k = constant dependent on material formulation
· α = nonlinear coefficient
For transmission class arresters, the residual voltage at nominal discharge current (typically 10 kA, 8/20 μs waveform) must remain below the critical flashover (CFO) voltage of the protected insulation with an appropriate safety margin, usually 20-25%.
These designs incorporate an external air gap in series with the ZnO varistor column, providing complete isolation from continuous operating voltage. The gap only sparks over when lightning overvoltage reaches predetermined levels, typically 1.5-2.5 times the normal phase-to-ground voltage. This configuration offers several advantages:
· Zero leakage current and eliminated power losses during normal operation
· Reduced varistor thermal stress
· Extended service life
However, gap performance depends on environmental conditions and requires precise calibration to ensure consistent sparkover characteristics.
Without series gaps, these arresters maintain continuous connection to the line, providing faster response times and eliminating gap coordination issues. Modern polymer-housed gapless designs dominate the market due to:
· Superior response to fast-front surges (steepness exceeding 1000 kV/μs)
· Elimination of gap maintenance and environmental sensitivity
· Reduced physical dimensions and weight
The continuous voltage stress necessitates advanced ZnO formulations with exceptional long-term stability and low leakage characteristics.
Emerging technologies combine both approaches, utilizing small pre-calibrated gaps with parallel grading capacitors or resistors to achieve optimal performance characteristics. Multi-chamber gap designs with magnetic blowout action enhance current interruption capability for induced currents following the lightning impulse.
Polymer composites, typically silicone rubber or ethylene propylene diene monomer (EPDM), provide superior housing materials due to:
· Hydrophobic surfaces preventing moisture tracking
· UV resistance and weatherability
· Lightweight construction (70-80% lighter than porcelain equivalents)
· Reduced risk of explosive failure under fault conditions
Advanced housing designs incorporate:
· Multiple sheds for improved creepage distance (typically 25 mm/kV minimum)
· Internal/external grading rings for uniform field distribution
· Integrated corona rings to reduce radio interference
The ZnO varistor column is spring-loaded to maintain compressive force (typically 30-50 kN) throughout thermal cycling and mechanical loading. Hermetic sealing employs multiple barriers:
· Glass-to-metal seals at terminal interfaces
· Compression-molded polymer interfaces
· Desiccated internal environments or gel-filling for moisture exclusion

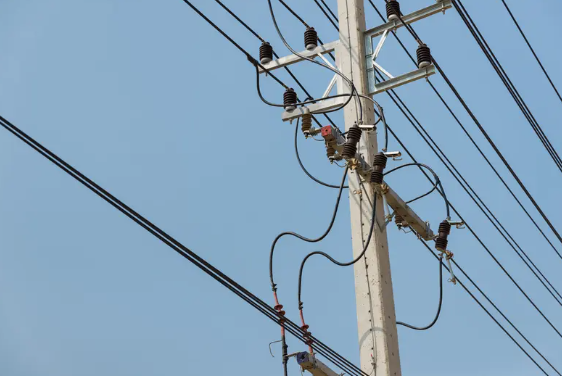

TLAs employ three primary mounting configurations:
· Phase-to-ground: Direct connection between conductor and tower
· Cross-arm mounted: Installation on cross-arm with jumper connection
· In-line suspended: Series installation in conductor span
Connection hardware includes hot-line installable clamps, flexible jumpers, and corona-free fittings designed for specific conductor diameters and tension loads.
· Rated voltage: Maximum permissible RMS voltage between terminals
· Continuous operating voltage: Maximum RMS voltage during normal operation
· Nominal discharge current: Standardized lightning current (5, 10, or 20 kA)
· Residual voltage: Peak voltage at nominal discharge current
· Line discharge class: Energy absorption capability
Manufacturers must demonstrate compliance with international standards including IEC 60099-4 and IEEE C62.11, which mandate:
· High current impulse tests: Up to 100 kA (4/10 μs) for one discharge
· Operating duty cycle tests: Multiple high-current impulses with power-frequency voltage
· Long-term stability tests: 1000 hours at elevated temperature (115°C) with continuous voltage
· Pollution tests: Salt-fog or clean-fog tests at specified creepage distances
· Mechanical tests: Static load, wind loading, and seismic qualification
Proper arrester selection requires detailed insulation coordination studies considering:
· Protected equipment BIL (Basic Impulse Insulation Level)
· Tower footing resistance and soil characteristics
· Shielding failure rate and lightning incidence density
· Phase-to-phase coupling effects
· Temporary overvoltage scenarios (faults, switching, ferroresonance)
Economic application employs selective rather than ubiquitous installation. Critical factors determining placement density include:
· Tower footing resistance exceeding 50 ohms
· Historical fault rates and outage analysis
· Terrain features increasing exposure (mountain ridges, isolated peaks)
· Line voltage class (higher voltages typically require less dense application)
· Leakage current monitoring: Third harmonic analysis for early degradation detection
· Infrared thermography: Periodic inspection for thermal anomalies
· Radio interference detection: Increased RIV indicates internal partial discharge
· Visual inspection: Tracking, erosion, or physical damage assessment
Common failure mechanisms include:
· Thermal runaway: From moisture ingress or contamination
· Cracking: From thermal stress or mechanical vibration
· Surface tracking: From pollution deposits under wet conditions
Diagnostic testing includes measurement of:
· DC leakage current at reference voltage
· Third harmonic current components
· Power loss under continuous operating voltage
While ground wires reduce direct strikes, TLAs provide superior protection against:
· Backflashovers from high tower footing resistance
· Shielding failures on critical lines
· Induced surges from nearby strikes
Grounding improvements have diminishing returns in high resistivity soils, whereas TLAs provide consistent protection independent of soil conditions.
Integration of monitoring sensors and IoT connectivity enables:
· Real-time leakage current monitoring
· Lightning strike counting and classification
· Predictive maintenance scheduling
· Integration with grid-wide protection systems
· Nano-engineered ZnO varistors with enhanced energy absorption
· Self-healing polymer composites for extended service life
· Graphene-enhanced coatings for improved contamination performance
· Dynamic rating systems adjusting protection level based on weather conditions
· Phasor measurement unit integration for system-wide lightning response coordination
· Artificial intelligence algorithms for optimal placement and replacement scheduling
While TLAs represent significant capital investment (typically $500-$2000 per unit installed), economic justification derives from:
· Reduced outage minutes and improved reliability indices
· Lower maintenance costs compared to grounding system upgrades
· Extended insulator service life through overvoltage elimination
· Insurance premium reductions for improved reliability
Payback periods typically range from 2-5 years for lines in high lightning incidence areas with poor grounding conditions.
Transmission line arresters have evolved from specialized protective devices to mainstream components in comprehensive lightning protection strategies. Their continued development reflects the power industry's increasing emphasis on reliability, resilience, and operational efficiency. As grid modernization accelerates and climate change increases lightning activity in many regions, TLAs will play an increasingly vital role in maintaining transmission system integrity.
