Common Disconnect Switch Fault Diagnosis: Root Causes And Solutions for Contact Overheating, Operation Failure, And Insulation Degradation

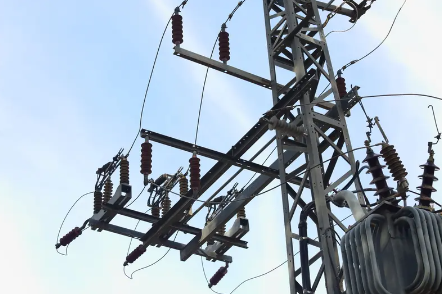

1. Contact Overheating

Contact overheating is a common yet critical issue that may lead to contact melting, arc flashes, or even system outages.

Root Causes:

· Increased Contact Resistance:

 · Insufficient Contact Pressure: Fatigue, deformation, or corrosion of contact springs.

 · Surface Oxidation: Copper or aluminum contacts form resistive oxide layers over time.

 · Electrochemical Corrosion: Moisture and pollutants accelerate corrosion between dissimilar metals.

 · echanical Wear: Abrasion during operation reduces effective contact area.

 · Contamination: Carbon deposits from arcing or environmental dirt impair conductivity.

Solutions:

· Maintenance & Inspection:

 · Regularly perform infrared thermography to detect abnormal heat patterns.

 · During outages, clean contacts with fine sandpaper or a wire brush (avoid damaging silver-plated surfaces).

 · Apply electrical contact grease to prevent oxidation and reduce resistance.

 · Replace fatigued springs and tighten connections.

· Design & Selection:

 · Choose switches with robust contact designs, adequate pressure mechanisms, and corrosion-resistant coatings (e.g., silver-plated contacts).

2. Operation Failure (Refusal to Operate)

Failure to open or close disrupts switching operations and compromises system flexibility.

Root Causes:

· Mechanical Jamming:

 · Rust or lack of lubrication in bearings, pivots, or linkage mechanisms.

 · Misalignment or deformation of mechanical parts due to improper installation or external forces.

 · Foreign objects (e.g., debris, ice) blocking moving parts.

· Actuator malfunctions:

 · Electric Actuators: Motor failure, control circuit issues (e.g., faulty limit switches, relay failures), or power supply problems.

 · Manual Mechanisms: Bent operating rods or damaged gears.

· Freezing: Ice formation in actuator boxes in cold climates.

Solutions:

· Maintenance & Inspection:

 · Lubricate all moving parts periodically with low-temperature-resistant grease.

 · Check actuator seals to prevent moisture and dust ingress.

 · Manually operate the switch to detect abnormal resistance or jamming.

 · Test control circuits, motors, and sensors for electric actuators.

· Operational Practices:

 · Never force a switch during operation; stop and investigate the cause.

3. Insulation Degradation

Deterioration of insulation reduces dielectric strength, increasing the risk of flashovers or ground faults.

Root Causes:

· Surface Contamination:

 · Pollution (salt, dust, industrial deposits) on insulators, combined with humidity, causes tracking and flashovers.

· Mechanical Damage:

 · Cracks in porcelain or composite insulators due to impact, vibration, or manufacturing defects.

· Aging:

 · UV exposure, temperature cycles, and chemical exposure degrade polymer or composite insulators, leading to loss of hydrophobicity.

· Animal Interference:

 · Birds or rodents bridging live parts and grounded structures.

Solutions:

· Maintenance & Inspection:

 · Clean insulators regularly based on environmental pollution levels.

 · Apply silicone-based RTV coatings to enhance pollution performance.

 · Use megohmmeters to measure insulation resistance during maintenance.

 · Install animal guards or deterrents.

· Design Improvements:

 · Select insulators with adequate creepage distance for the pollution level.

 · Upgrade to composite insulators with better hydrophobicity and impact resistance.

Conclusion and Preventive Maintenance Recommendations

Proactive maintenance is key to minimizing disconnect switch failures:

1. Routine Inspections: Combine visual checks, IR thermography, and acoustic monitoring.

2. Scheduled Maintenance: Clean, lubricate, and tighten components annually or as per operating environment.

3. Condition-Based Monitoring: Use advanced diagnostics (e.g., partial discharge detection, insulation testing) to transition from time-based to predictive maintenance.

4. Training: Ensure personnel are trained in proper switching procedures and failure diagnosis.

Implementing these strategies will extend switch lifespan, reduce unplanned outages, and improve grid reliability.
