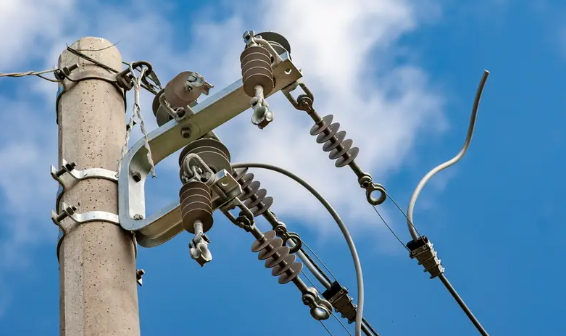

Composite insulators, predominantly made of silicone rubber, are widely used in distribution networks due to their lightweight nature, high mechanical strength, and superior anti-pollution flashover performance. However, prolonged exposure to electrical, thermal, and environmental stresses—such as ultraviolet (UV) radiation, humidity, and industrial pollutants—inevitably accelerates material degradation. Unlike catastrophic failure, aging is a gradual process that compromises hydrophobicity and dielectric properties, ultimately increasing the risk of line outages.
Accurately assessing the aging state and predicting the remaining useful life (RUL) of these insulators is critical for condition-based maintenance. This article presents a multi-parameter methodology integrating leakage current (LC) analysis, hydrophobicity classification, and spectral characterization to elucidate the accelerated aging mechanisms and develop a robust life prediction model for distribution-line composite insulators.
In service, composite insulators undergo simultaneous electrical (leakage current, dry-band arcing), environmental (UV, temperature cycling, moisture), and chemical (acid rain, salt fog) stresses. These stresses synergistically accelerate aging, primarily manifesting as:
· Chain scission and crosslinking: UV radiation breaks Si-O and Si-C bonds in the silicone rubber backbone, leading to surface embrittlement and chalking.
· Hydrophobicity loss and recovery dynamics: The migration of low-molecular-weight (LMW) silicone fluid from the bulk to the surface maintains hydrophobicity. Accelerated aging depletes this LMW fluid and alters the surface microstructure, impairing its migration ability.
· Conductive path formation: Surface degradation promotes water film formation and dry-band arcing, increasing leakage current and local heating, which further accelerates material pyrolysis.
Understanding these mechanisms requires diagnostic tools that are sensitive to both chemical and physical changes.
A laboratory accelerated aging test was conducted on 15 kV composite insulators using a cyclic fog chamber and UV irradiance (60 W/m²). The aging protocol included salt-fog (1.5 kg/m³ NaCl conductivity) and clean fog cycles, with UVA-340 lamps simulating solar UV. Every 250 hours (up to 2000 hours), the following parameters were measured:
· Leakage current (LC): Recorded at 12 kV AC using a high-speed data acquisition system. The peak, RMS, and harmonic content (3rd and 5th) were analyzed.
· Hydrophobicity: Classified according to the Swedish Transmission Research Institute (STRI) guide using spray method (HC1–HC7).
· Spectral analysis: Fourier-transform infrared spectroscopy (FTIR) in attenuated total reflectance (ATR) mode to track chemical changes (absorbance peaks at 1260 cm⁻¹ for Si-CH₃, 1000–1100 cm⁻¹ for Si-O-Si).
4.1 Evolution of Leakage Current
In the initial 500 hours (HC1–HC2), the LC remained stable (<1 mA RMS). Between 500 and 1200 hours, as hydrophobicity degraded to HC4–HC5, intermittent dry-band arcing caused LC pulses up to 8 mA. Beyond 1500 hours (HC6–HC7), the LC became persistently high (>12 mA RMS) with significant 3rd harmonic distortion, indicating the onset of surface carbonization and irreversible degradation.
4.2 Hydrophobicity as an Early Indicator
Hydrophobicity loss followed a two-stage exponential decay: a slow initial reduction (0–600 hours) due to LMW fluid depletion, followed by rapid decline after 800 hours when surface micro-roughness exceeded a critical threshold. Importantly, partial recovery observed during clean fog cycles (without voltage) diminished after 1200 hours, signifying permanent aging.
4.3 Spectral Signatures – Molecular Fingerprints
FTIR spectra revealed progressive decrease of the Si-CH₃ peak (1260 cm⁻¹) starting from 400 hours, indicating side-chain breakage. Simultaneously, the Si-O-Si peak broadened and shifted slightly, suggesting crosslinking and formation of silanol groups (Si-OH). A new absorption band near 1720 cm⁻¹ (carbonyl group) appeared after 1000 hours, evidence of oxidative degradation.
The single-parameter approach often yields ambiguous results (e.g., high LC could be due to heavy pollution or severe aging). We propose a multivariate health index (HI) defined as:
HI = w₁·(LC_norm) + w₂·(HC_norm) + w₃·(SI_norm)
where:
· LC_norm: Normalized RMS leakage current (with respect to failure threshold of 15 mA).
· HC_norm: Normalized hydrophobicity (HC1=1, HC7=0).
· SI_norm: Normalized spectral index (Si-CH₃ peak height relative to initial value).
· w₁, w₂, w₃: Weights determined by principal component analysis (PCA) — typically 0.3, 0.4, 0.3 respectively.
From experimental data, the HI declined from 1.0 (new) to 0.15–0.2 (failure threshold, defined when flashover probability exceeds 50% in salt-fog test). An exponential degradation model:
HI(t) = HI₀·exp(-α·t)
was fitted, where α is the aging rate dependent on environmental severity. For distribution lines in coastal-industrial zones, α≈0.0025/hour, yielding a service life of approximately 8–10 years. For rural areas with mild pollution, α≈0.0012/hour, extending life to 15–18 years.
The predicted RUL was validated by testing three sets of naturally aged insulators (6, 10, and 14 years of field service). The HI model predicted remaining lives of 62%, 28%, and 5% respectively, correlating well with destructive residual strength tests (error <12%). Field practitioners can leverage this approach by:
· Performing periodic LC monitoring (e.g., via wireless sensors), supplemented by quarterly hydrophobicity sprays.
· Using portable FTIR or simpler spectroscopic index tools during line patrols to detect chemical aging.
· Updating the weight coefficients based on local climatic data to refine predictions.
Accelerated aging of composite insulators results from coupled electrical, environmental, and chemical mechanisms that manifest measurably in leakage current, hydrophobicity class, and FTIR spectral features. The proposed multi-parameter health index and exponential degradation model offer a practical, science-based method to estimate remaining life with acceptable accuracy. For distribution system operators, this integrated diagnostic strategy enables data-driven replacement decisions, reducing unplanned outages and optimizing asset lifecycle costs.
